VBA23001-R.3762.A
- A109 ･ D90 -
・
Replace the nder screen with the innity focus check screen (J18394), and use the reference lens (J18010)
and read the value. In case it is out of standard, increase or decrease washers (#266 selected from A to C) for
adjustments. * Supply the power (Battery or EH-5) for checking.
Caution: When [J18394] is put in to replace the nder screen, put it with the silver spacers upward, which are
attached on both sides.
#266A 1K602-832 Screen washer
A
0.10mm
#266B 1K602-833 Screen washer
B
0.20
㎜
#266C 1K602-976 Screen washer
C
0.05mm
Device

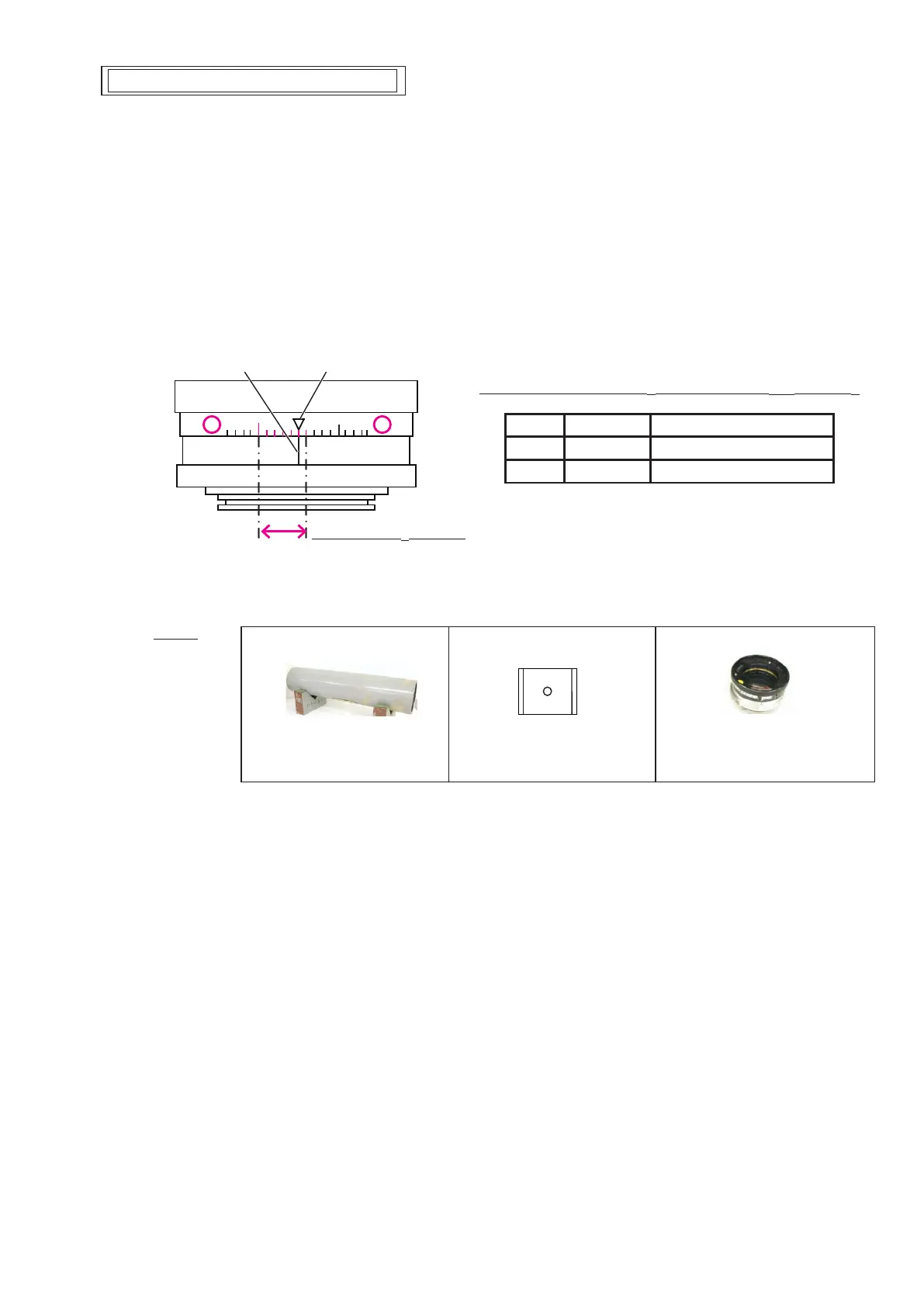

INFINITY FOCUS ADJUSTMENT
SCREEN
COLLIMATOR F=600mm
J19001
INFINITY STANDARD LENS 50/1.8
J18010
J18394
∞ Innity focus inspection & adjustment
J18010
From +0.01 to
-0.05mm
＋－
Reference line
"0" position of tool lens
Standard: From +0.01 to
-0.05mm 1 scale
＝
0.01mm
）
To Next Page
