- D73 ･ D90 -

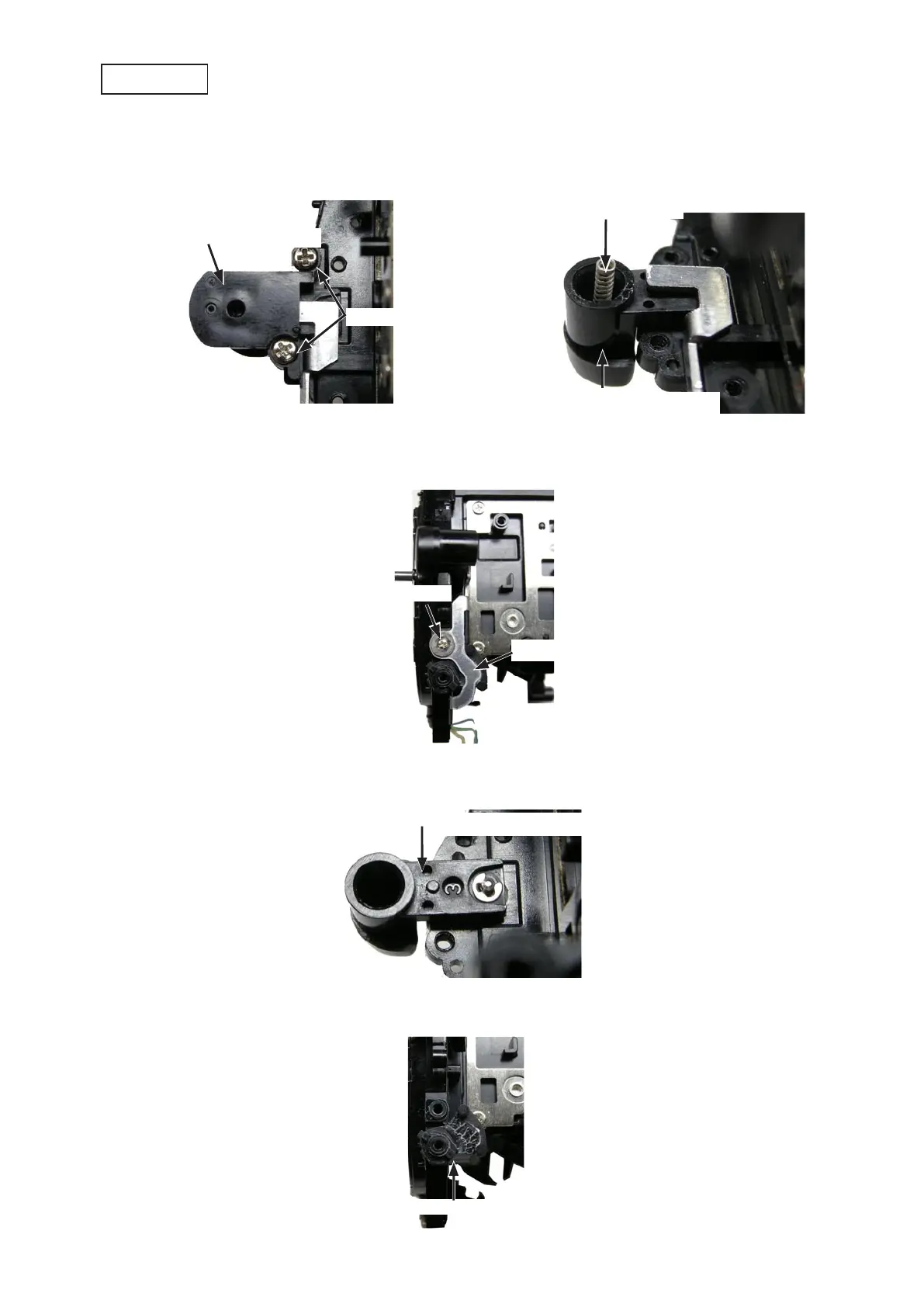

・Remove the A/M change cam (#122).Remove the A/M change cam (#122).
・Remove the release button holder (#B116).Remove the release button holder (#B116).
・Take out the screw (#630), and remove the vertical lever (#191).Take out the screw (#630), and remove the vertical lever (#191).
・Take out the two screws (#625).Take out the two screws (#625).
・Remove the lens release holder (#115).Remove the lens release holder (#115).
・Pull out the spring (#119) from the release button holder (#B116).Pull out the spring (#119) from the release button holder (#B116).
Screw (#625)
×
2
Lens release holder (#115)
Spring (#119)
Release button holder (#B116)
Screw (#630)
Vertical lever (#191)
Release button holder (#B116)
A/M change cam (#122)
Release button
INC
