Nikon VBA23001 User Manual

VBA23001-R.3762 .A
- D69 ･ D90 -

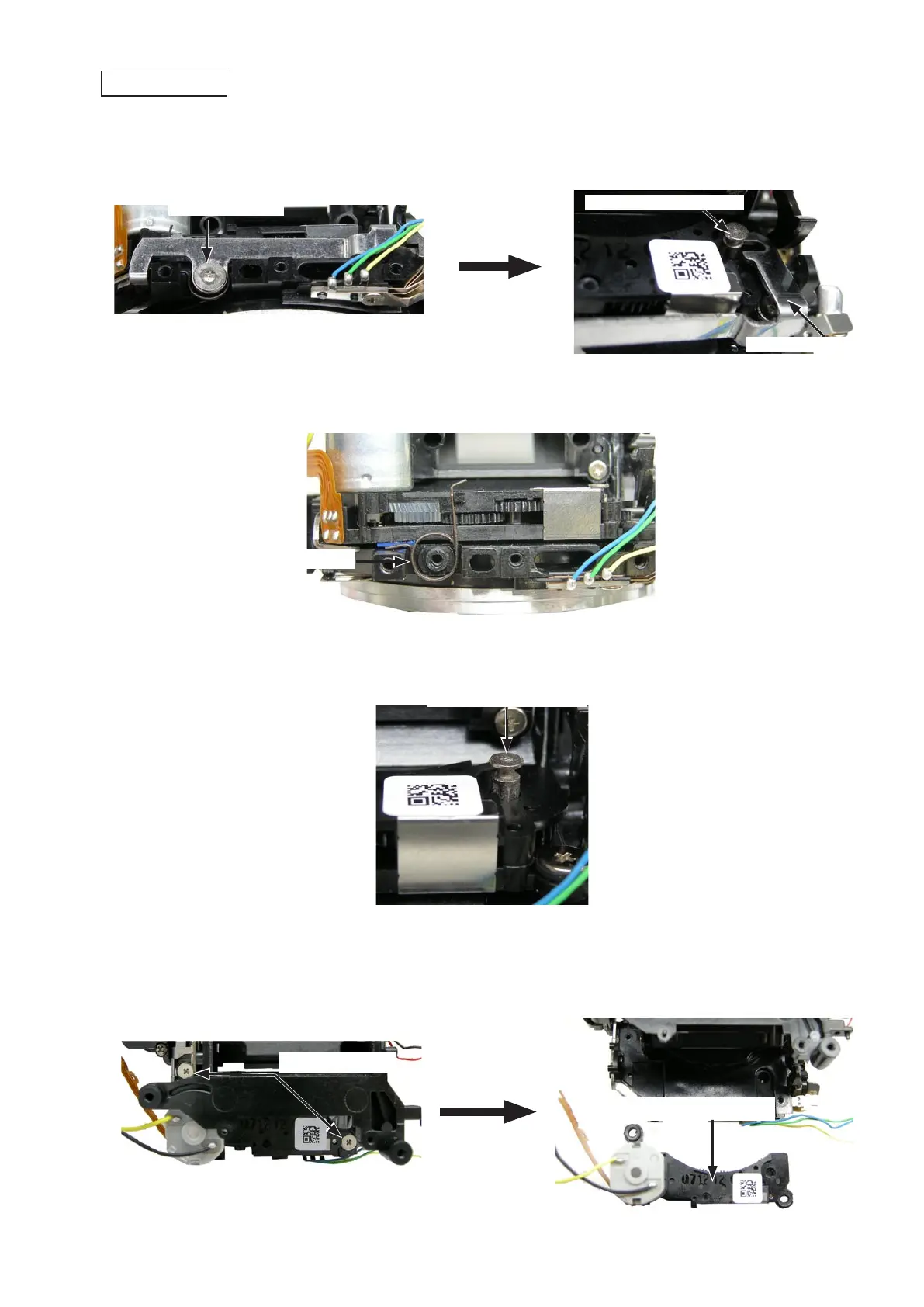

・Take out the screw (#630).Take out the screw (#630).
・Remove the lever (#193) from the groove of the coupling shaft (#185).Remove the lever (#193) from the groove of the coupling shaft (#185).
・Remove the coupling shaft (#185).Remove the coupling shaft (#185).
・Remove the spring (#195) (carefully to avoid popping out of the spring).Remove the spring (#195) (carefully to avoid popping out of the spring).(carefully to avoid popping out of the spring).to avoid popping out of the spring).
Screw (#630)
Lever (#193)
Coupling shaft (#185)
Spring (#195)
Coupling shaft (#185)
・Take out the two screws (#637).Take out the two screws (#637).
・Remove the AF driving base (#B172).Remove the AF driving base (#B172).
Screw (#637)
×
2
AF driving base (#B172)
AF driving base
INC
