VBA23001-R.3762 .A
- D68 ･ D90 -

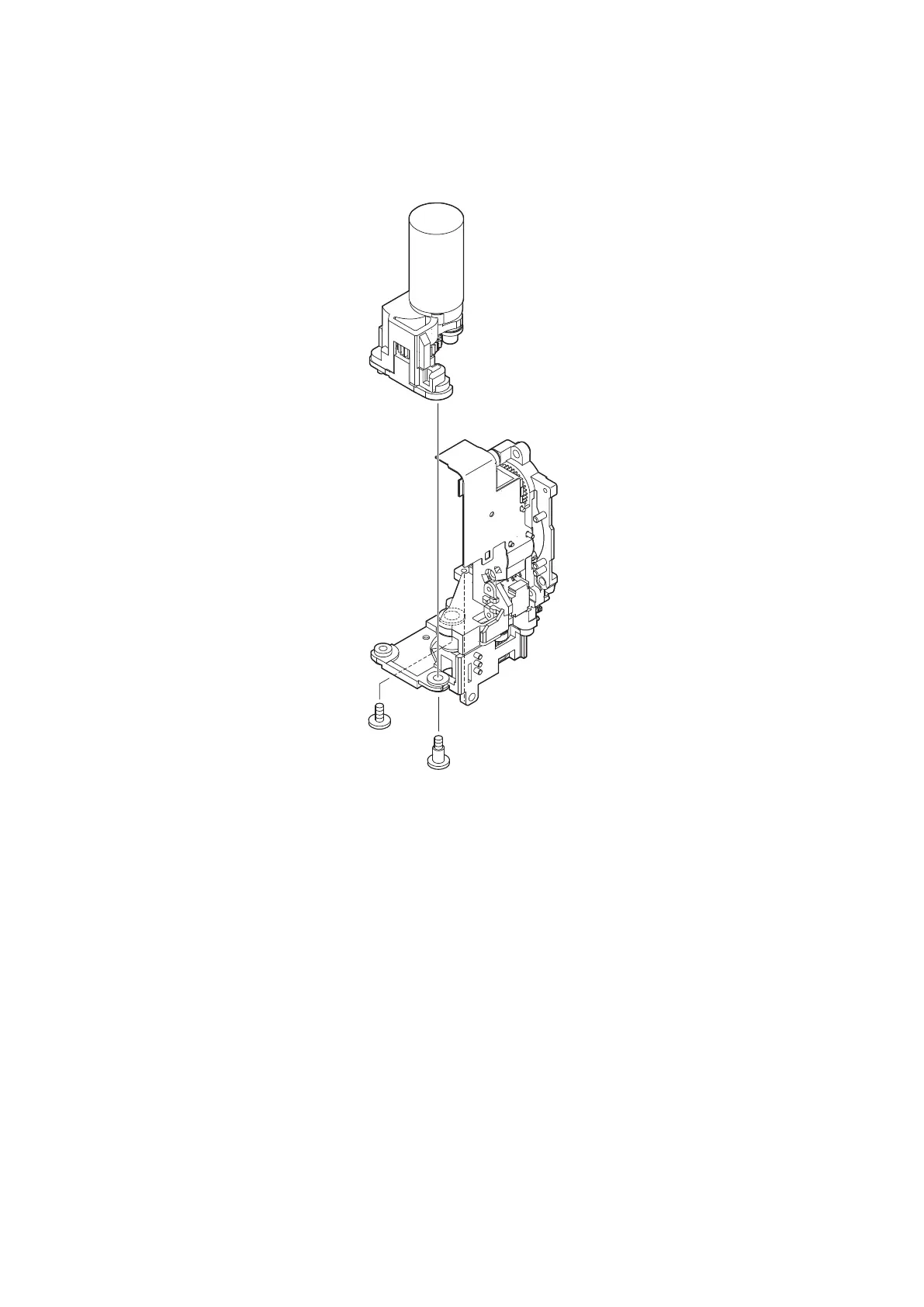

・Take out the screws (#630 and #628).Take out the screws (#630 and #628).
・The sequence base plate (#B91) will come off from the aperture control unit (#B241RP).sequence base plate (#B91) will come off from the aperture control unit (#B241RP).
(#630)
(#628)
(#B241RP)
(#B91)
INC
