- A101 ･ D90 -

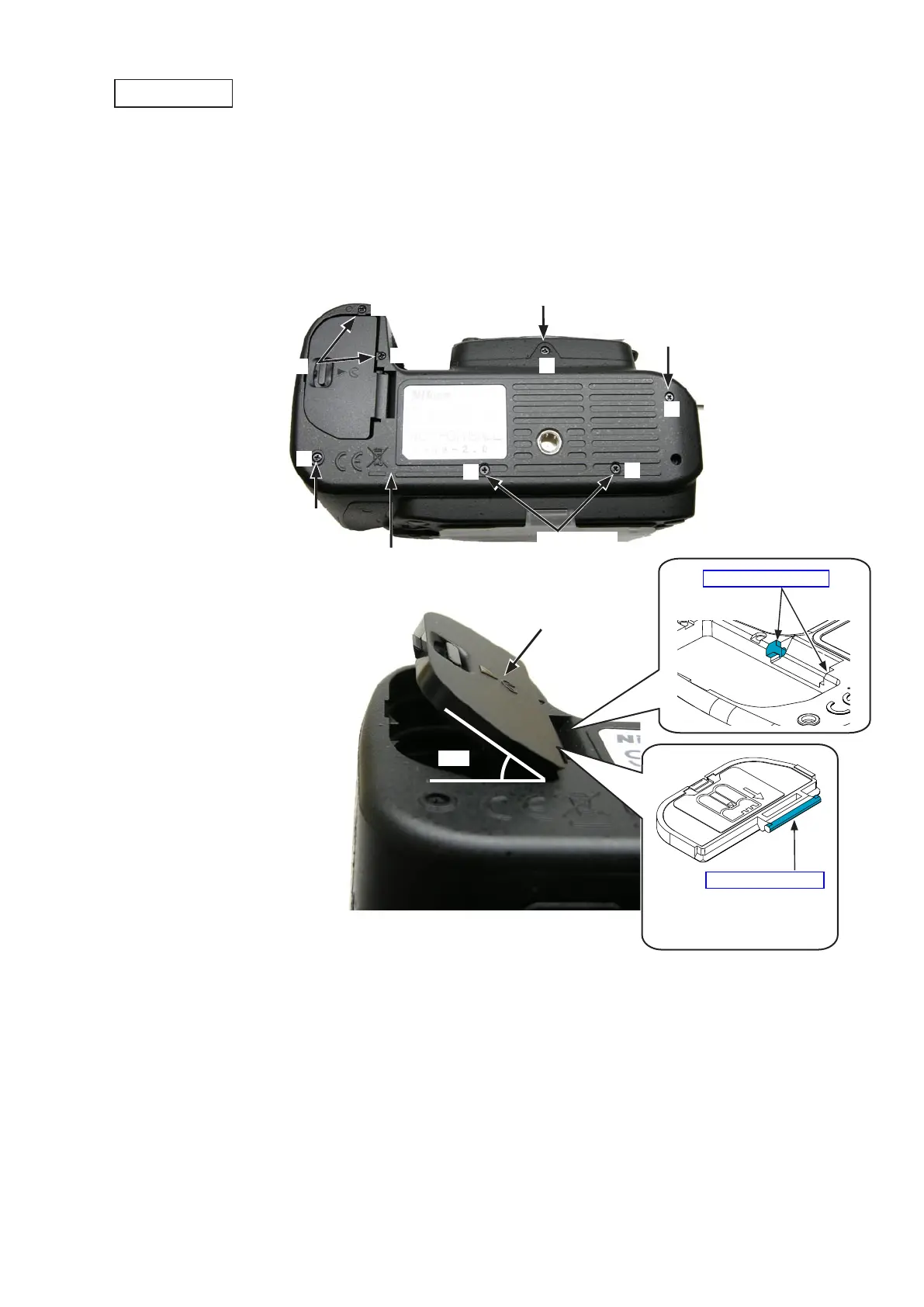

Bottom coverBottom cover
・Mount the bottom cover unit (#25).Mount the bottom cover unit (#25).
・Tighten the two screws (#657), two screws (#658), one screw (#661), and two screws (#692) in numeric order as below.Tighten the two screws (#657), two screws (#658), one screw (#661), and two screws (#692) in numeric order as below.
・Tilt the battery chamber unit (#B151) at a 35-degree angle, and attach it.Tilt the battery chamber unit (#B151) at a 35-degree angle, and attach it.
35°
(#657)
×1
(#658)
×2
(#661)
×1
(#692)
×2
(#657)
×1
①
②
③
④
⑤
⑥
⑦
Battery chamber unit
(#B151)
Bottom cover unit (#25)
Grease: CFD409Z
Grease: MZ-800SEL
INC
