VBA23001-R.3762 .A
- D30 ･ D90 -

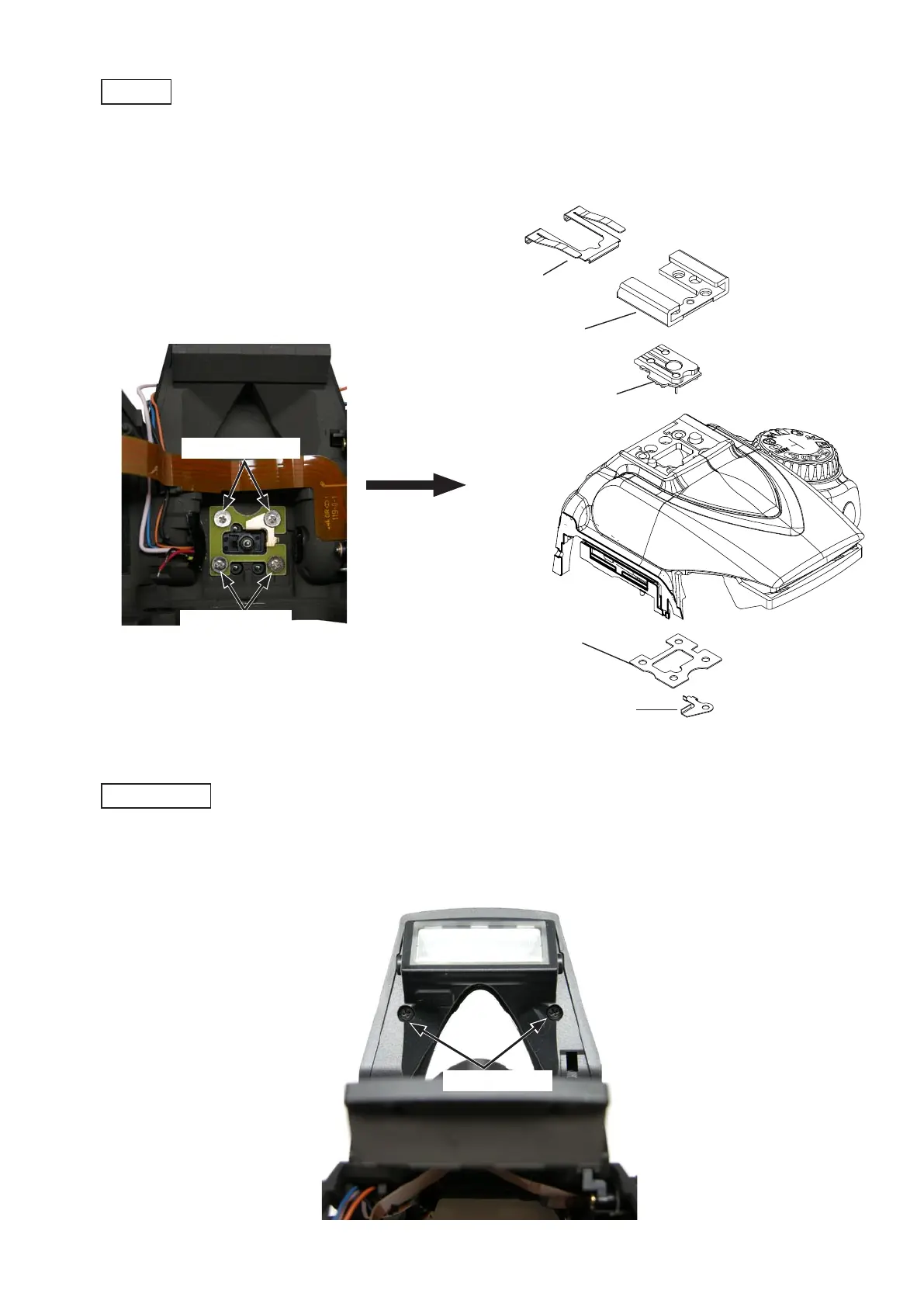

・Take out the four screws (#654).Take out the four screws (#654).
・Remove the GND plate (#322) and the holder (#321) from bottom.GND plate (#322) and the holder (#321) from bottom.
・Remove the hot shoe (#316), hot shoe spring (#318), and shoe mold unit (#B317).hot shoe (#316), hot shoe spring (#318), and shoe mold unit (#B317).
GND plate (#322)
Holder (#321)
Hot shoe (#316)
Hot shoe spring (#318)
Shoe mold unit (#B317)
Screw (#629)
×
2
Screw (#654)
×
2
Screw (#654)
×
2
Hot shoe
SB upper cover
・
Raise the speedlight and take out the two screws (#629).
To Next Page
