VBA23001-R.3762.A
- A67 ･ D90 -

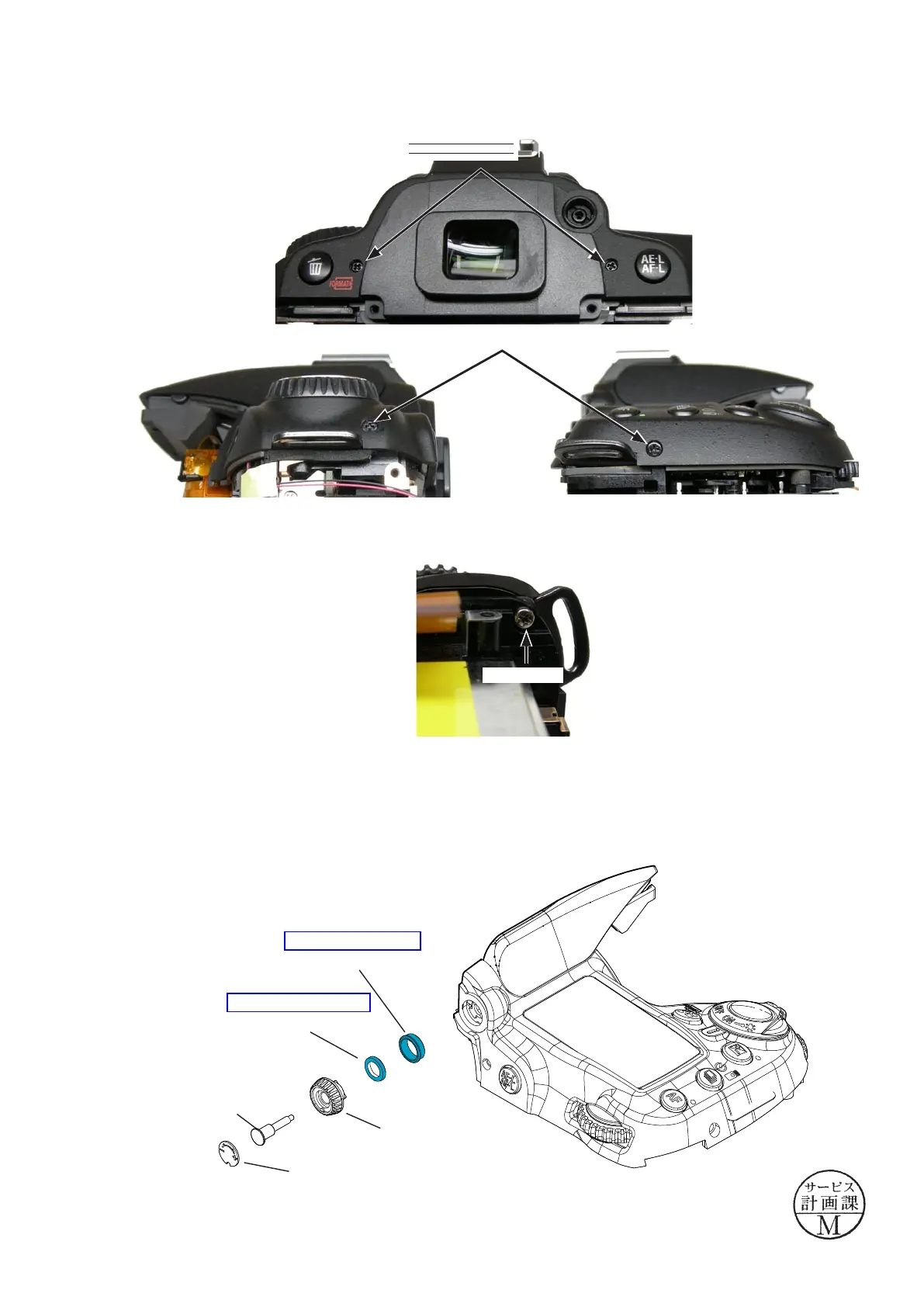

・Tighten the two screws (#677).Tighten the two screws (#677).
・Tighten the two screws (#657).Tighten the two screws (#657).
・Tighten the screw (#636).Tighten the screw (#636).
・Attach the roller (#281) to the top cover.Attach the roller (#281) to the top cover.
・Attach the sponge (#287) to the diopter adj knob (#282).Attach the sponge (#287) to the diopter adj knob (#282).
・Tighten the screw (#288).Tighten the screw (#288).
・Attach the diopter adj knob cover (#280).Attach the diopter adj knob cover (#280).
Screw
×
2 (#657)
Screw
×
2 (#657)
Screw(#636)
Diopter adj.knob (#282)
Diopter adj. knob cover (#280)
Roller (#281)
Sponge (#287)
Screw (#288)
Screw
×
2 (#677)
△（Revision）
Changed page △×１
Dipping:
Oil barrier: NKH-401H
Oil barrier: NKH-401H
October. 2. 2008
To Next Page
