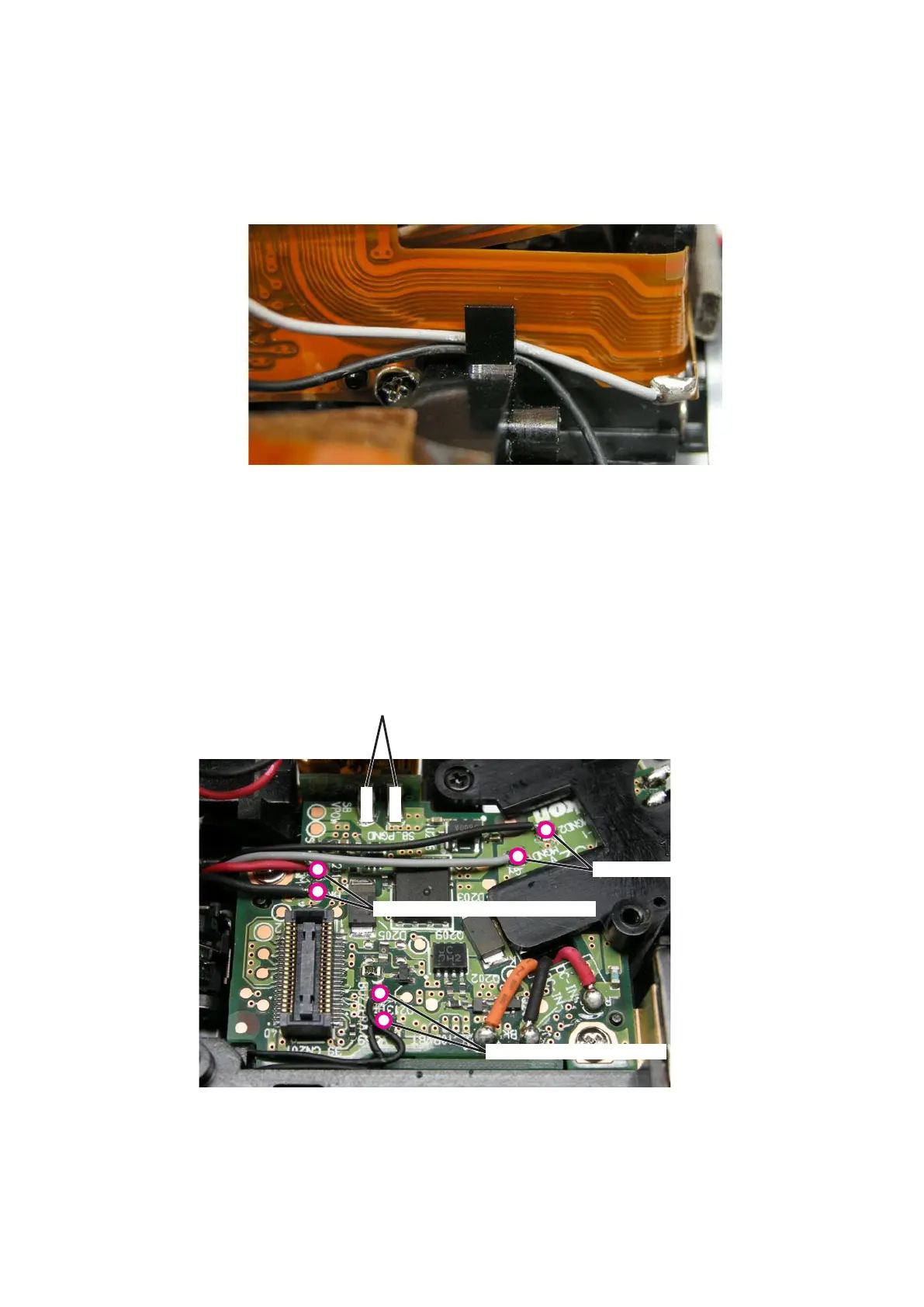

・Make the two solder brides on the power drive PCB (#B1002).Make the two solder brides on the power drive PCB (#B1002).
・Solder the wires (Black/Red) of the SQ motor.Solder the wires (Black/Red) of the SQ motor.
・Solder the wires (Black/Gray) of the mount GND.Solder the wires (Black/Gray) of the mount GND.
・Solder the wires (Black) of the buzzer unit.Solder the wires (Black) of the buzzer unit.
・Fit the mount GND wires (Black/Gray) in the side hook.mount GND wires (Black/Gray) in the side hook.
Solder bridge
×
2
Wire
×
2 (Black/Red) of SQ motor
Wire
×
2 (Black/Gray) of mount GND
Wires (Black) of buzzer unit.
To Next Page
