- D22 ･ D90 -

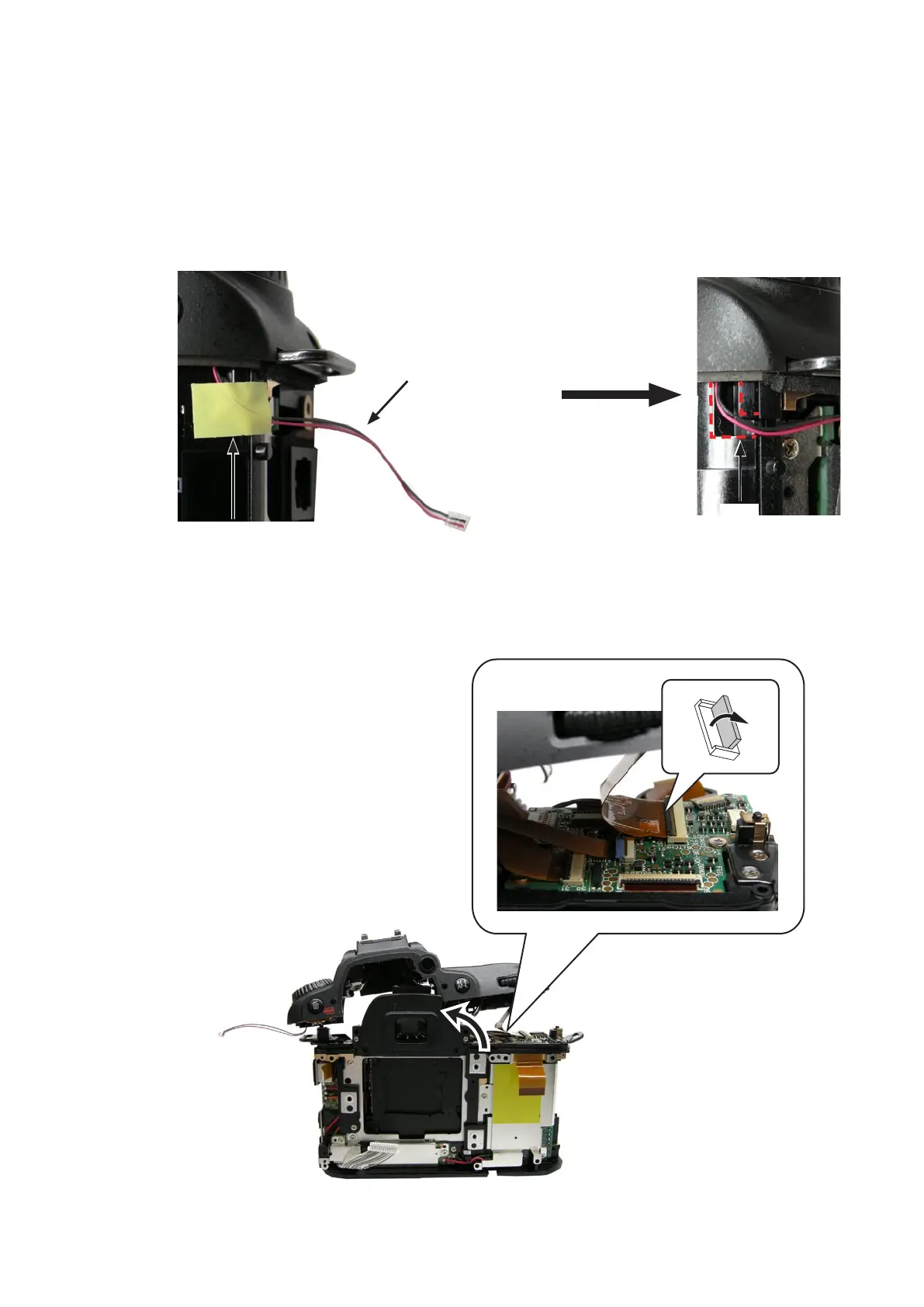

・Disconnect the FPC from the connector of the top cover unit (#B23RP).Disconnect the FPC from the connector of the top cover unit (#B23RP).
・Remove the top cover unit (#B23RP).Remove the top cover unit (#B23RP).
・Peel off the tape [TA-0005 (6Peel off the tape [TA-0005 (6
×
10)].
・Remove the wires of the microphone (#1051) from the cutout of the body.Remove the wires of the microphone (#1051) from the cutout of the body.
cutout
Wires of the microphone (#1051)
Tape [TA-0005 (6
×
10)]
