Nikon VBA23001 User Manual

VBA23001-R.3762 .A
- D21 ･ D90 -

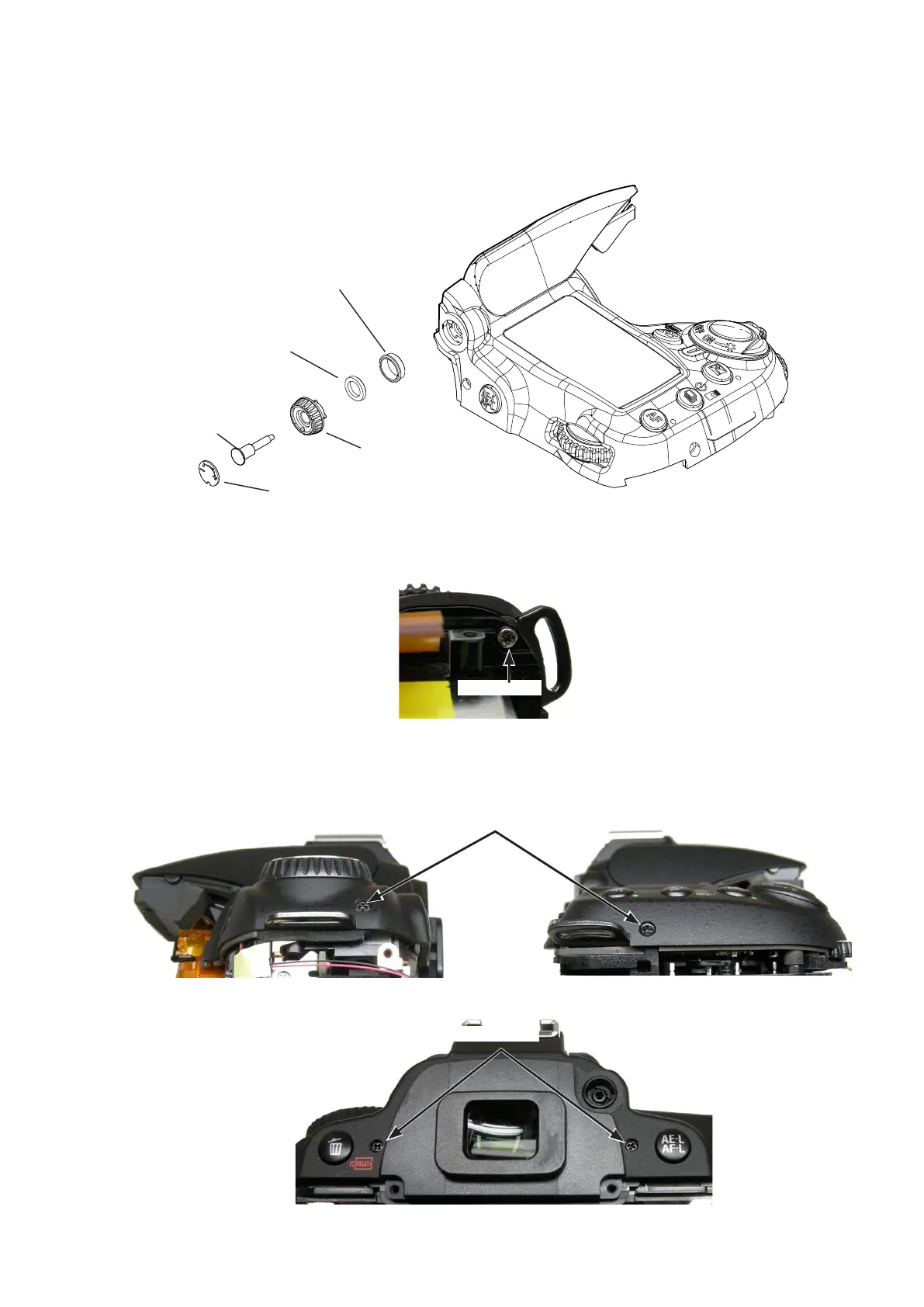

・Peel off the diopter adj knob cover (#280).Peel off the diopter adj knob cover (#280).
・Remove the screw (#288).Remove the screw (#288).
・Remove the sponge (#287) from the diopter adj knob (#282).Remove the sponge (#287) from the diopter adj knob (#282).
・Remove the roller (#281) from the body.Remove the roller (#281) from the body.
Screw (#288)
Diopter adj knob (#282)
Sponge (#287)
Diopter adj. knob cover (#280)
・Take out the two screw (#657).Take out the two screw (#657).
・Take out the two screw (#677).Take out the two screw (#677).
・Take out the screw (#636).Take out the screw (#636).
Screw (#636)
Screw (#657)
×2
Screw (#677)
×2
Roller (#281)
INC
