VBA23001-R.3762 .A
- D36 ･ D90 -

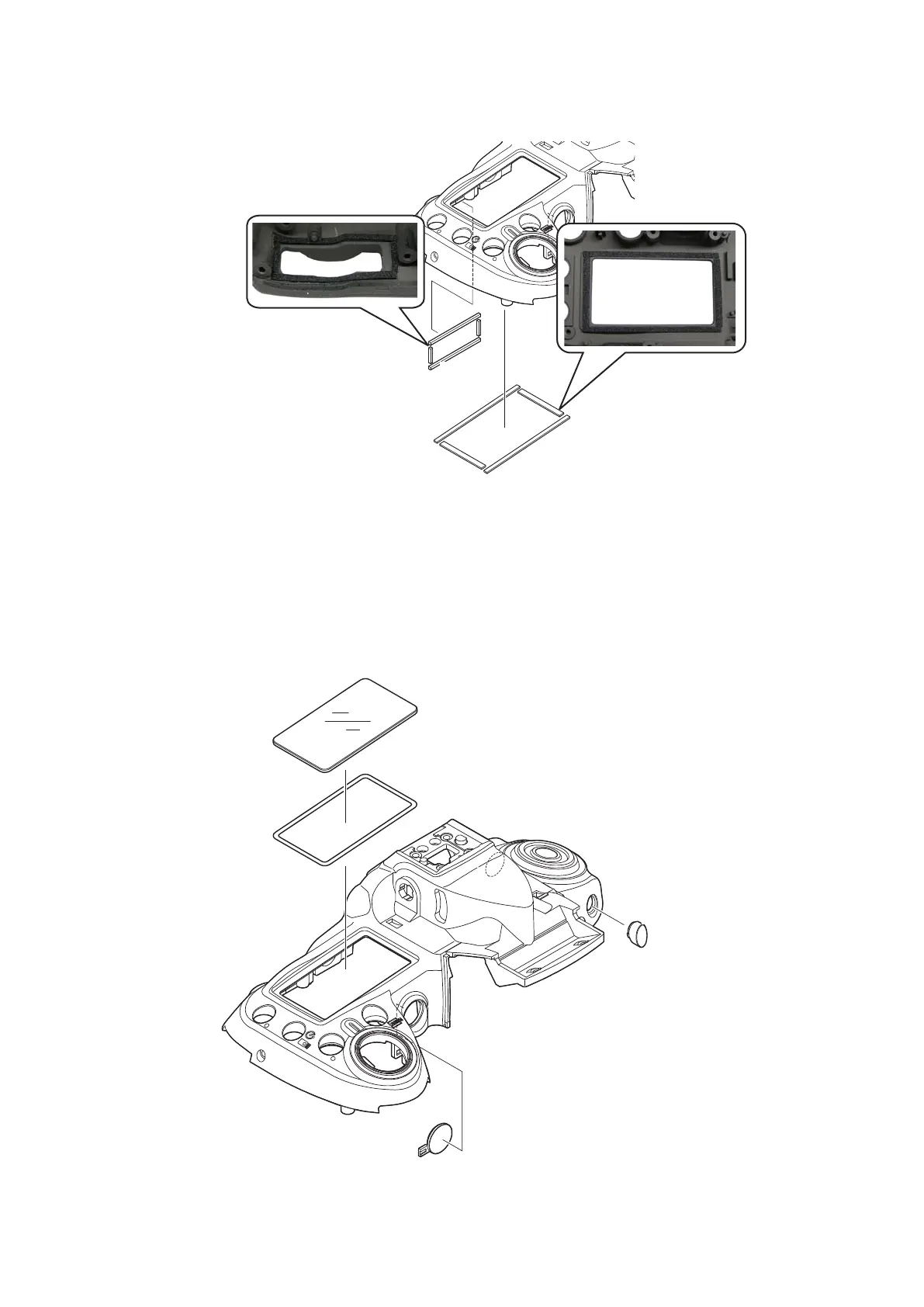

・Peel off the two sponges each (#336 and #337).Peel off the two sponges each (#336 and #337).
・Peel off the two sponges each (#756 and #758).Peel off the two sponges each (#756 and #758).
・Remove the AF-assist lamp protector (#326).Remove the AF-assist lamp protector (#326).
・Remove the remote control window (#463).Remove the remote control window (#463).
・Peel off the double-stick tape (#338), and remove the LCD window (#335).Peel off the double-stick tape (#338), and remove the LCD window (#335).
Double-stick tape (#338)
LCD window (#335)
Remote control window (#463)
AF-assist lamp protector (#326)
(#336)
×
2
(#337)
×
2
(#756)
×
2
(#758)
×
2
INC
