7-36 Service Manual
XZAC4219-05

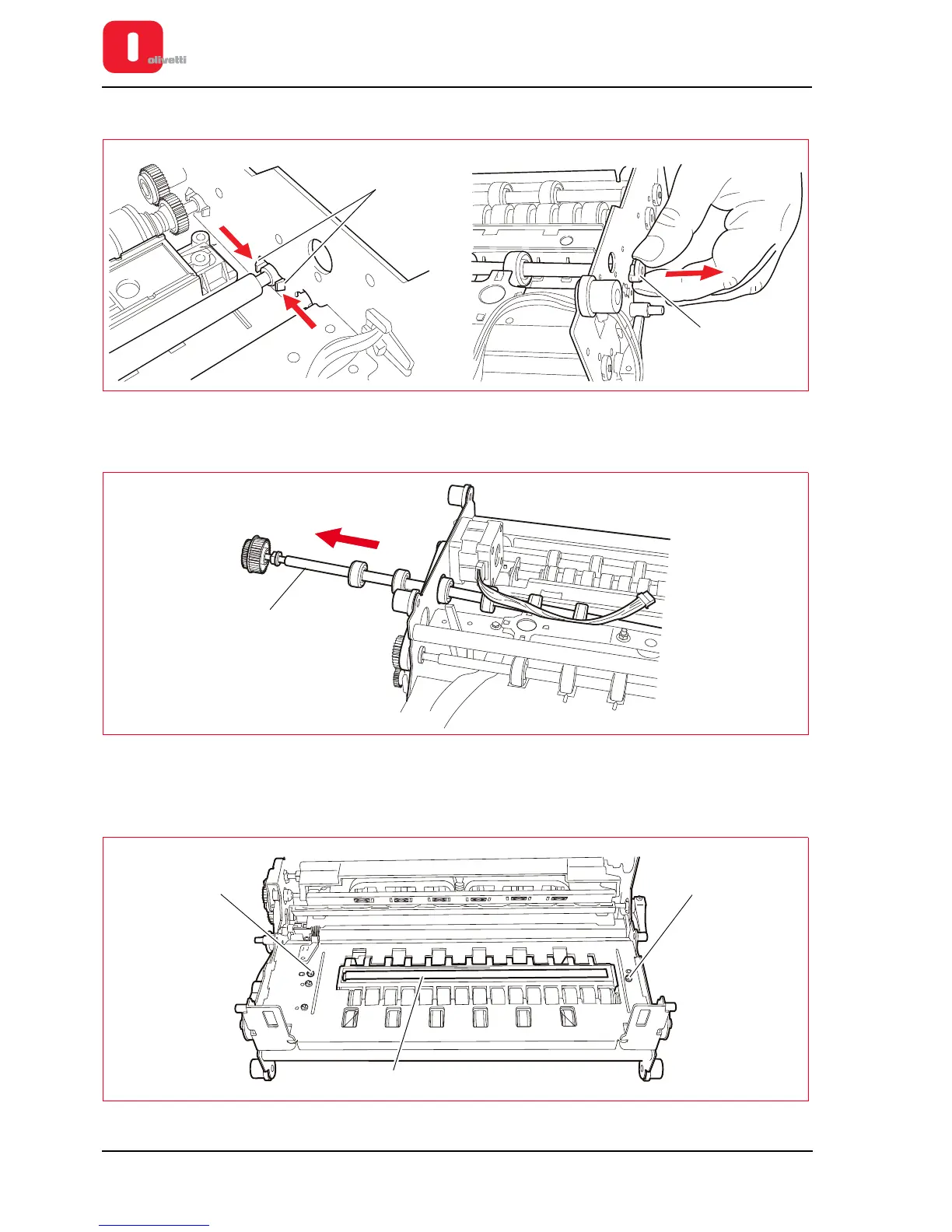

7. Press the clips (8) and remove the bush (9), proceeding as shown in the figure.
Figure 7 - 52 Removing the bushing
8. Remove the shaft (10) sliding it in the hole on the frame, as shown in the figure.
Figure 7 - 53 Removing the shaft
9. Turn over the lower mechanical assembly and unscrew the two screws (11) fastening the CIS unit (12).
10. Removing the CIS unit (12) from the bottom.
Figure 7 - 54 Removing the CIS unit
