5 - 37

5 Creating Measurement Scenes

Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

5-5 Using Variables to Edit the Flow [TDM Editor]

5-5-3 Editing Scenes

3 Click [OK].

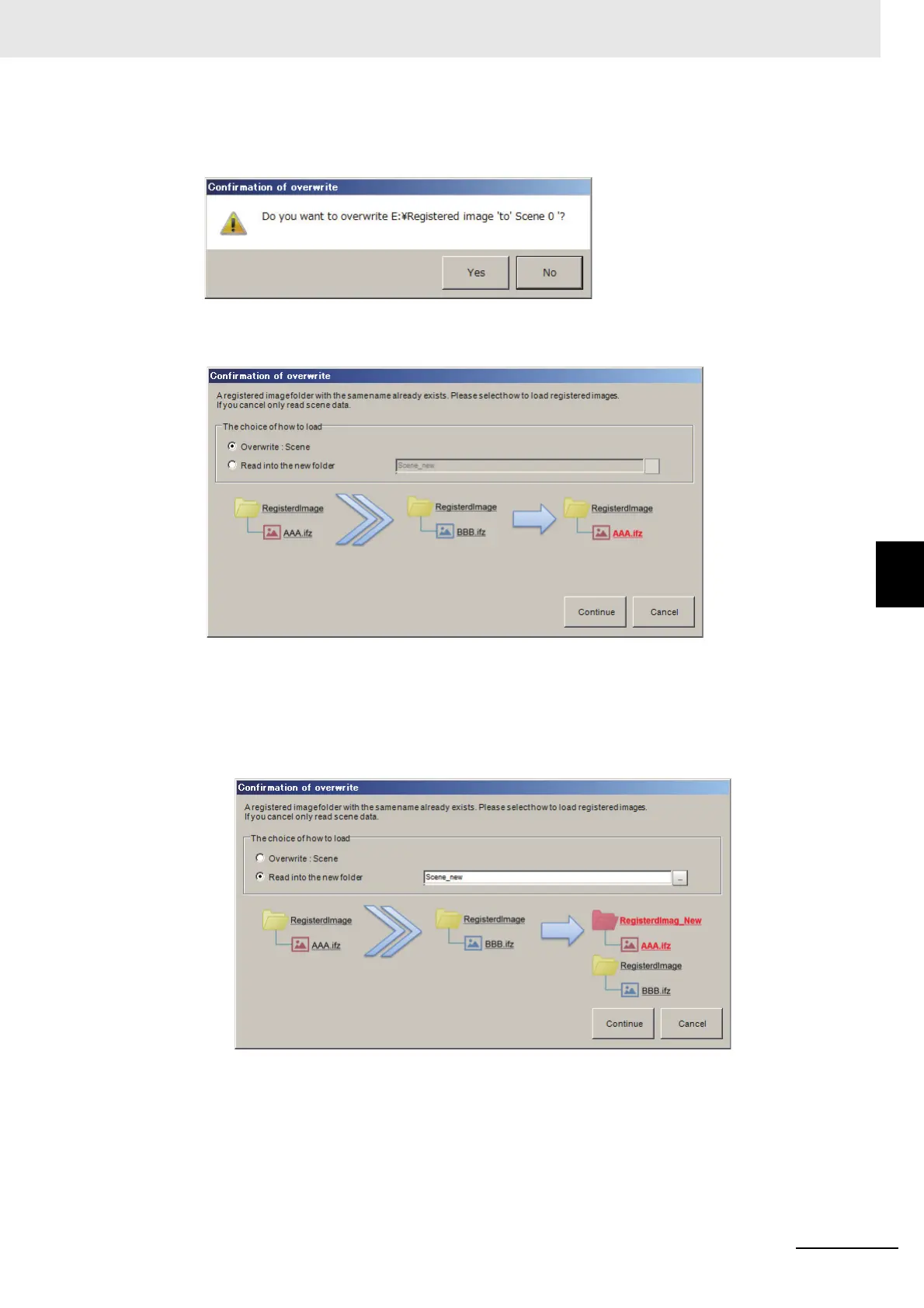

“Confirmation of overwrite” dialog box is displayed.

4 Click [Yes].

“Confirmation of overwrite” dialog box is displayed.

5 Select a loading method.

a. Overwrite:

(1) Click [Continue].

b. Read into the new folder:

(1) Click [Read into the new folder] and enter the folder name in the text box.

(2) Click [Continue].
