5 - 39
5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series Users Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-3 Editing Scenes

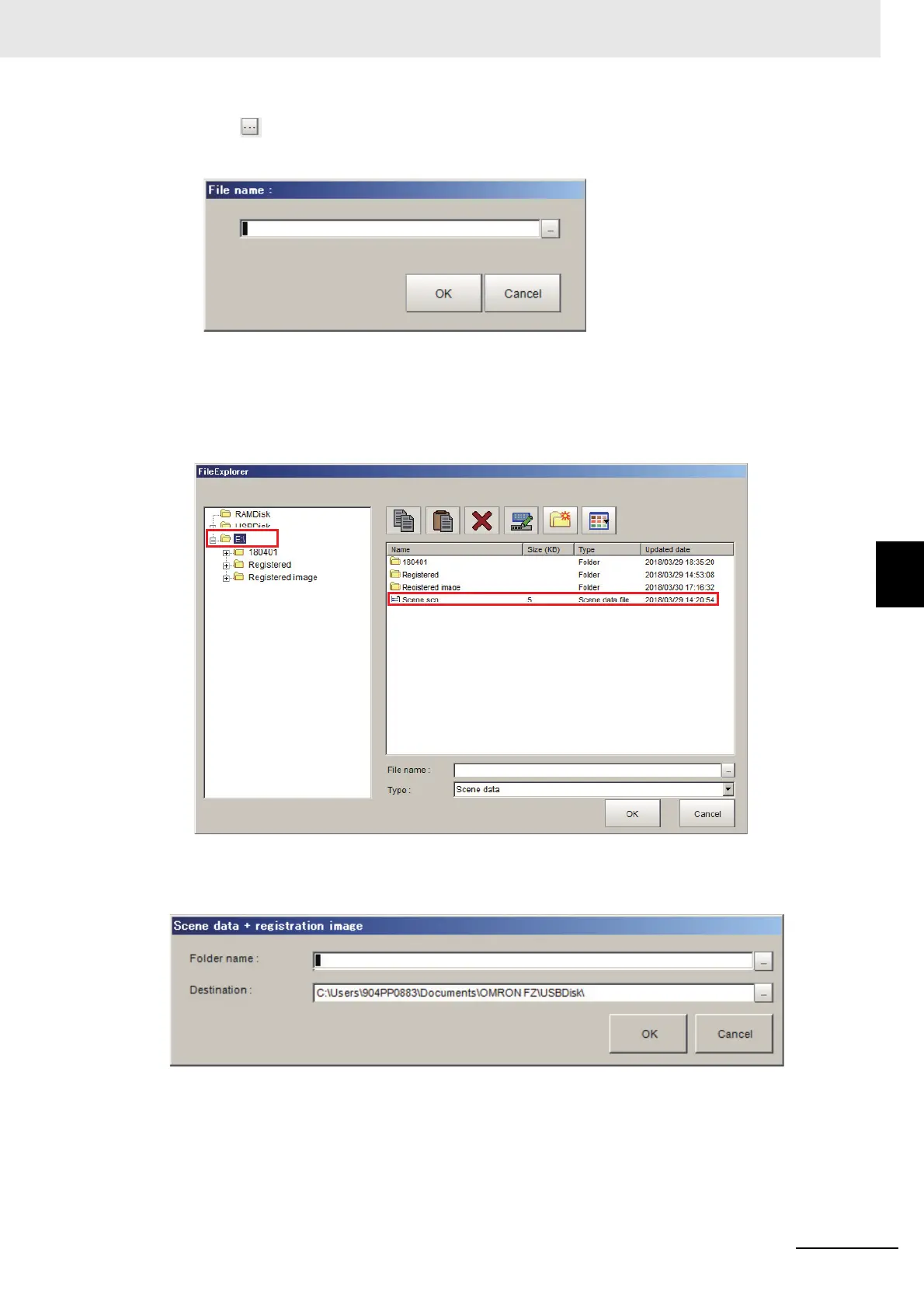

2 Click on the right side of “File name” text box.
“File name” dialog box is displayed.
3 Enter the file name in the text box.
4 Click [OK].
A scene data file with the specified file name and “scn” extension is created.
Example: In the case where the folder is “E:\” and the file name is “Scene0”.
Saving a scene data and registration image
“Scene data + registration image” dialog box is displayed.
