5 Creating Measurement Scenes
5 - 40
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

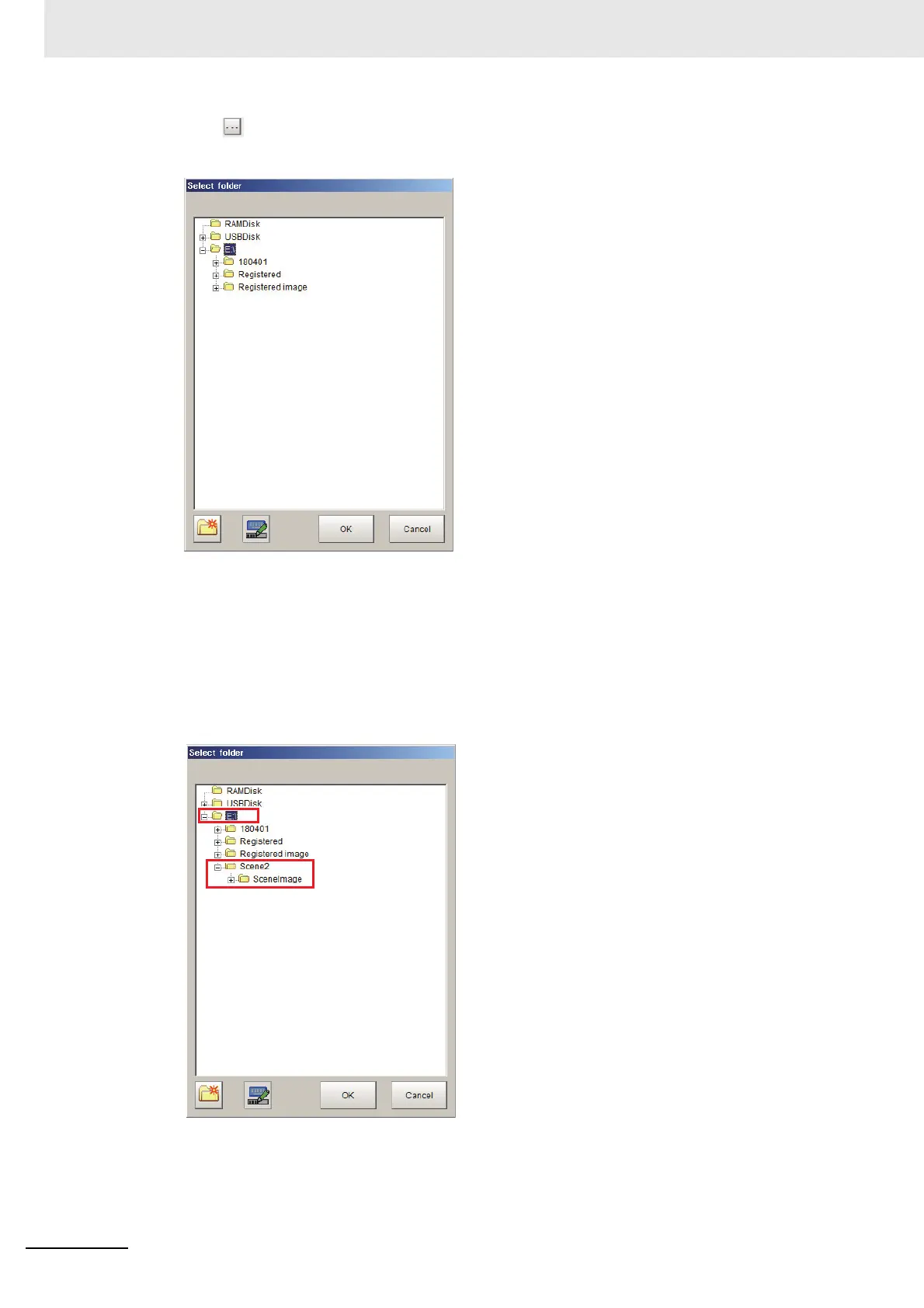

1 Click on the right side of the ”Destination” text box.
“Select folder” is displayed.
2 Select a folder for the saving destination.
3 Click [OK].
4 Enter a folder name into “Folder name” text box.
5 Click [OK].
The scene data file and registration image folder are created.
Example: In the case where the saving destination is “E:\” and the folder name is “Scene2”.
