5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-3 Editing Scenes
Additional Information
The scene data file name and registration image folder name are fixed.
• Scene data file name: Scene.scn
• Registration image folder name: SceneImage

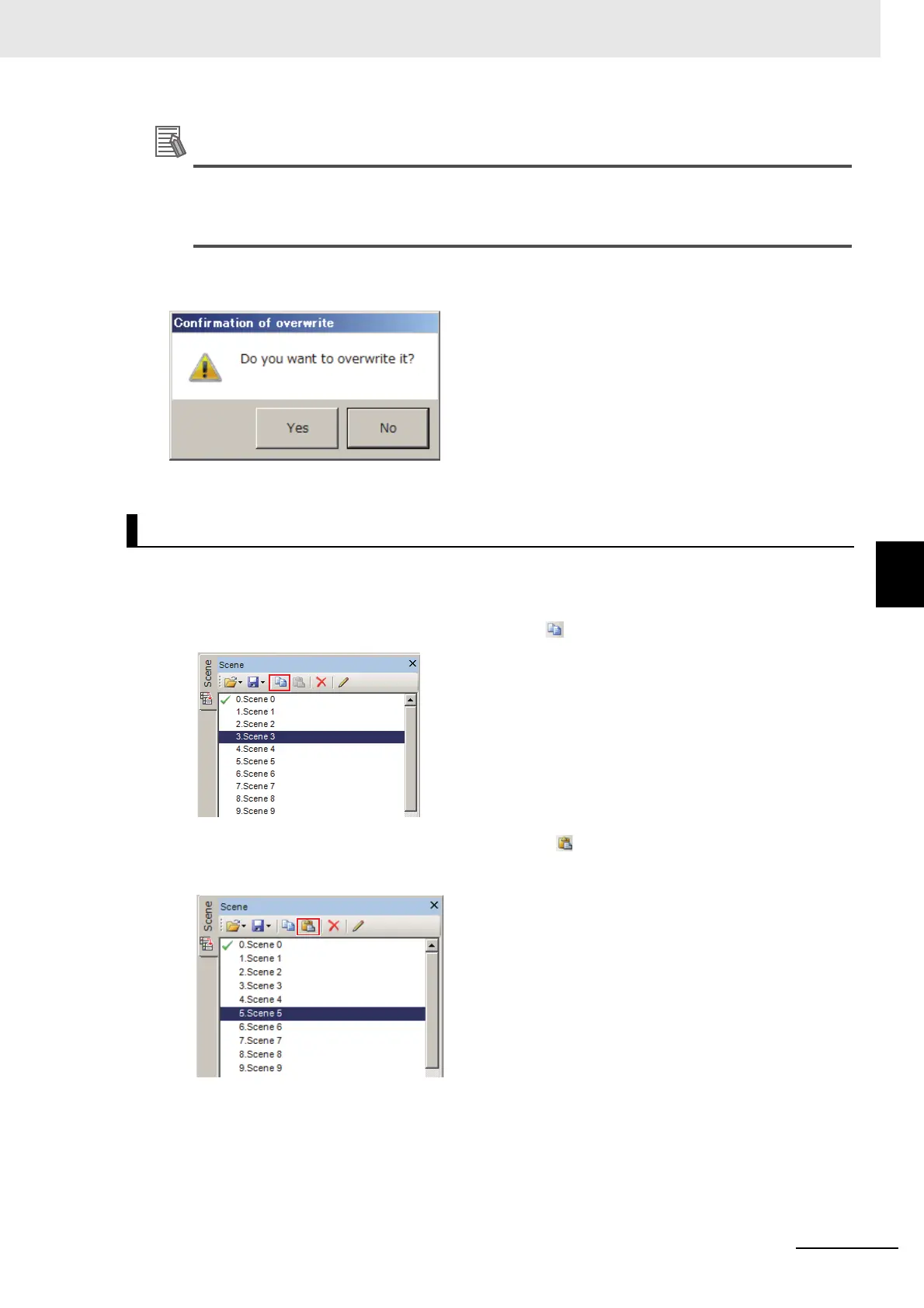

If the same file name and folder name have already existed in the specified folder, the following
warning message is displayed.
If OK, then click [Yes].
1 Select the Scene tab on the Edit flow screen.
A list of scenes is displayed. The current scene has a check mark.
2 Select a scene on the scene list to copy and click [Copy].
3 On the scene list, select a scene to paste and click [Paste].
A “Confirmation of overwrite” dialog will be displayed.
4 Click [OK].
The copied scene is overwritten to the selected scene.
Copying a Scene
