5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-4 Using Variables

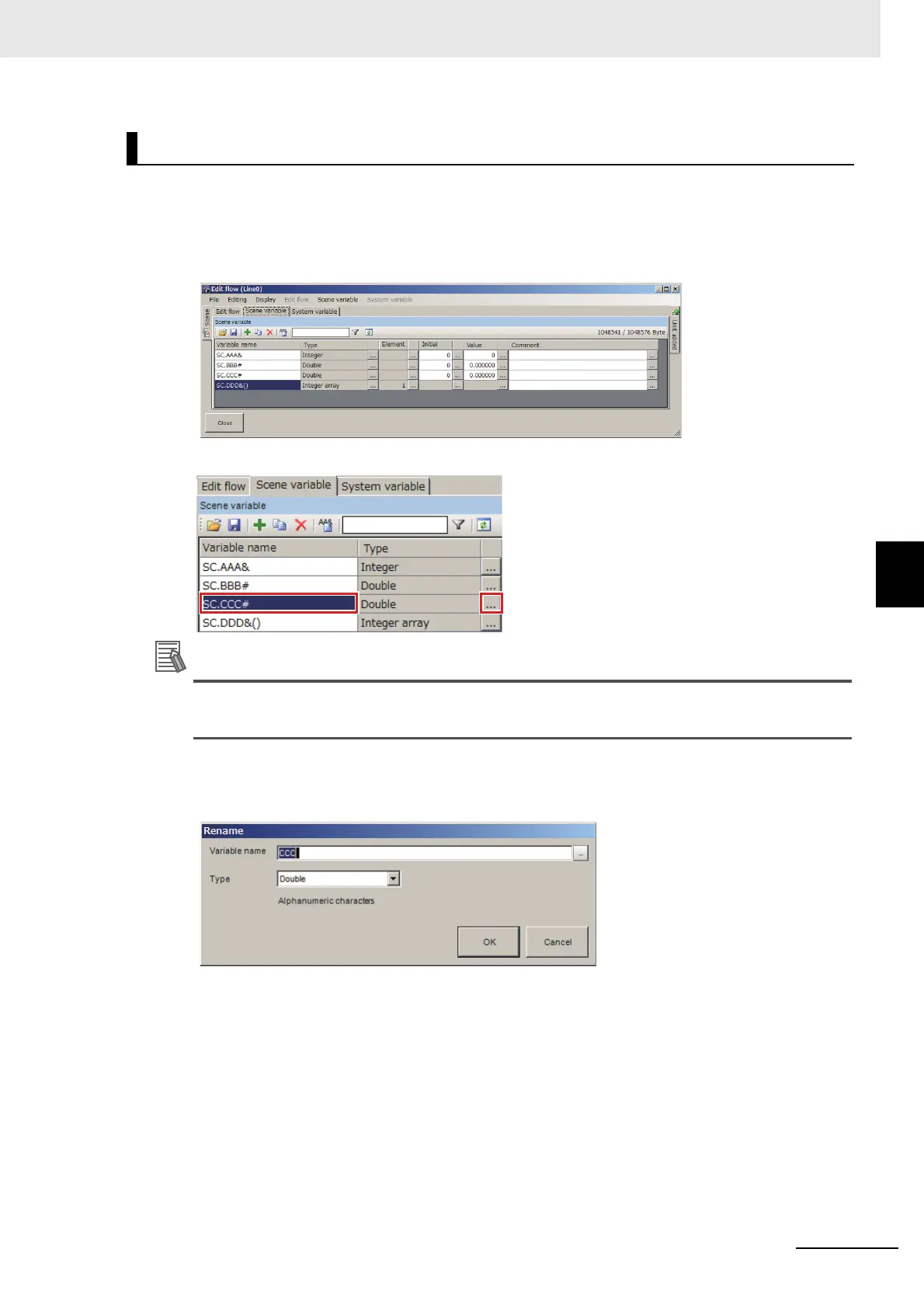

1 On the Edit item tab area in the Edit flow tab screen, click [Scene variable] tab or [System vari-
able] tab.
The Scene variable tab screen or the System variable tab screen is displayed.
The following is an example of the Scene variable tab screen.
2 On the Variable list area, select a variable name to edit.
Additional Information
The following operation also enables variable names to edit.
• Click the variable name to edit.
3 Click [...] at the right of the “Type” column for the selected variable.
The “Rename” dialog box is displayed.
4 Edit the “Variable name” and the “Type”.
5 Click [OK] to end the input.
Editing Name and Type of a Variable
