Omron fh-1 series User Manual

8 Setting Windows
8 - 16
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

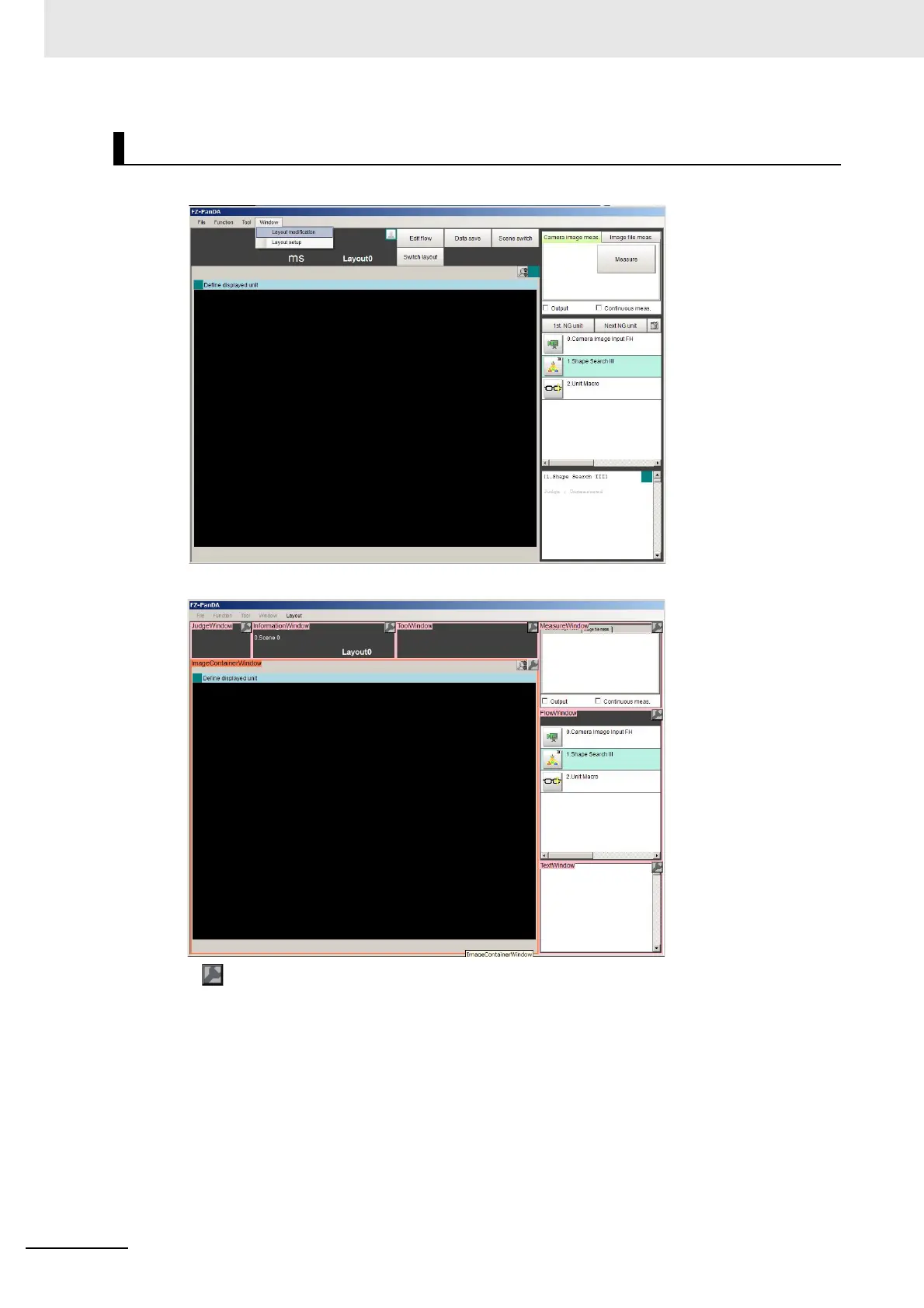

1 Select [Layout modification] from the [Window] menu in the Main Window for layout 0.
The display switches to Layout Modification Window.
A icon will appear on the upper right corner of each part. This indicates that the Layout Mod-
ification Mode is active.
In this state, you can display and arrange the layout of parts in the Main Window.
*1. Normal menu and window operations are not available in Layout Modification Mode.
Modifying Layouts
