8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-3 Arranging Windows [Layout Functions]
8
8-3-1 Arranging Window Elements (Layout Modification)

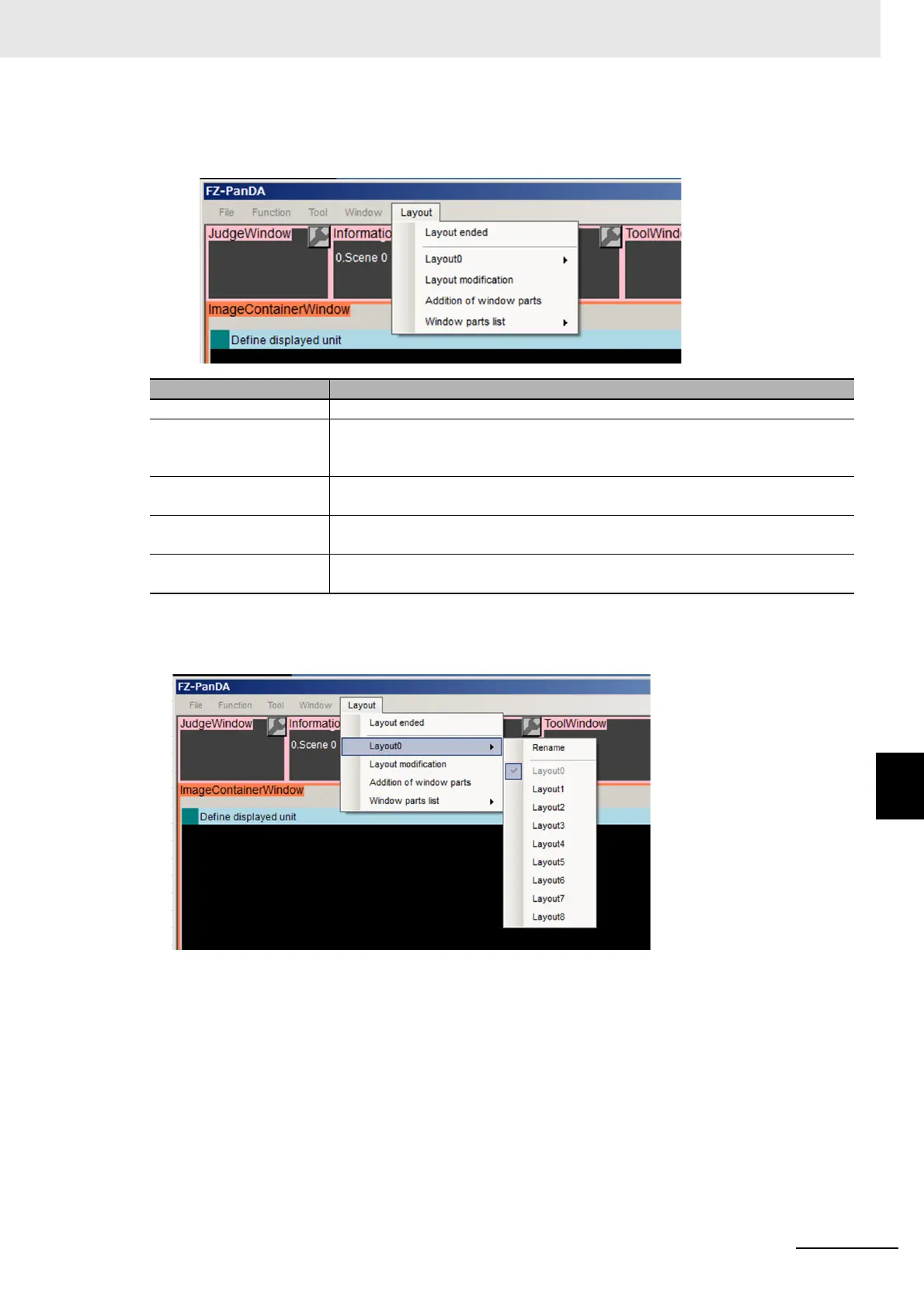

2 In the Layout Modification Window, click [Layout] on the menu.
The following layout is displayed.
 Layout 0 (Layout switching)
When clicking it, the following sub menu is displayed. The current layout is checked.
When changing the layout name, click [Rename]. The Rename dialog box is displayed. Input a
name you want to set to the layout and click [OK].
When switching layouts, click the desired layout in the list.
Layout Description
Layout ended Ends the layout modification.
Layout 0 Displays the selected layout number. When clicking it displays the Layout modifica-
tion sub menu. In the sub menu, switching layouts and changing the name of a lay-
out can be done.
Layout modification Displays the Layout modification dialog. In the dialog, the display settings of the
selected layout can be modified.
Addition of window parts Displays the Addition of window part dialog. With it, a window that is not displayed
in the standard mode can be added.
Window parts list Displays the current displayed window list. When clicking the name in the list, the
background of the selected window will change the color from pink to orange.
