8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-3 Arranging Windows [Layout Functions]
8
8-3-1 Arranging Window Elements (Layout Modification)
 Addition of window parts

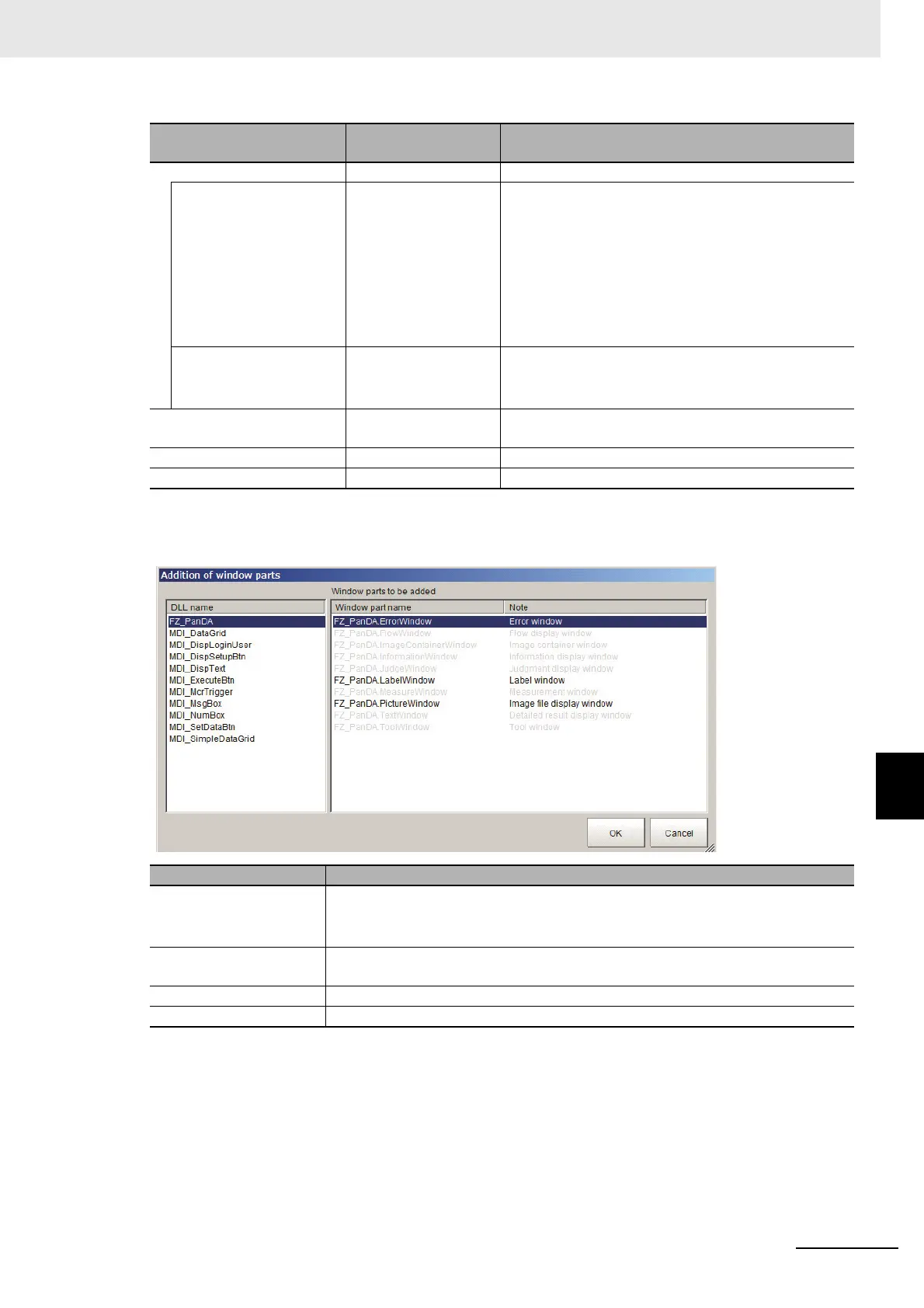

When clicking it, the following window is displayed.
Alignment Sets the layout position.
Fit to the grid line • [Unchecked]
•Checked
Sets whether or not the grid lines are displayed on the
Main Window by a pixel unit when the Layout modifica-
tion is set.
Checked: The grid lines will be displayed on the
Main Window.
The window part can be changed its posi-
tion and size per grid.
Unchecked: The grid lines will be hidden.
Grid interval 2 to 200 [8] This option is available when [Fit to the grid line] is
checked.
Sets the grid size. Unit: pixel
Restore the default setting The layout for the selected layout number is restored to
the default settings.
A copy of the layout settings Other layout is copied to the layout currently edited.
Close Ends the Layout Modification Mode.
Item Description
DLL name
Displays a list of PanDA. Exe and DLL files registered as a window part.
When selecting it, the registered window part list and the description will be dis-
played.
Window part name and
Note
Displays the window part name and the description.
OK When clicking, the selected window part will be placed on the layout screen.
Cancel Discards edited contents and closes this window.
Setting Item
Setting value
[Factory default]
Description
