8 Setting Windows
8 - 20
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

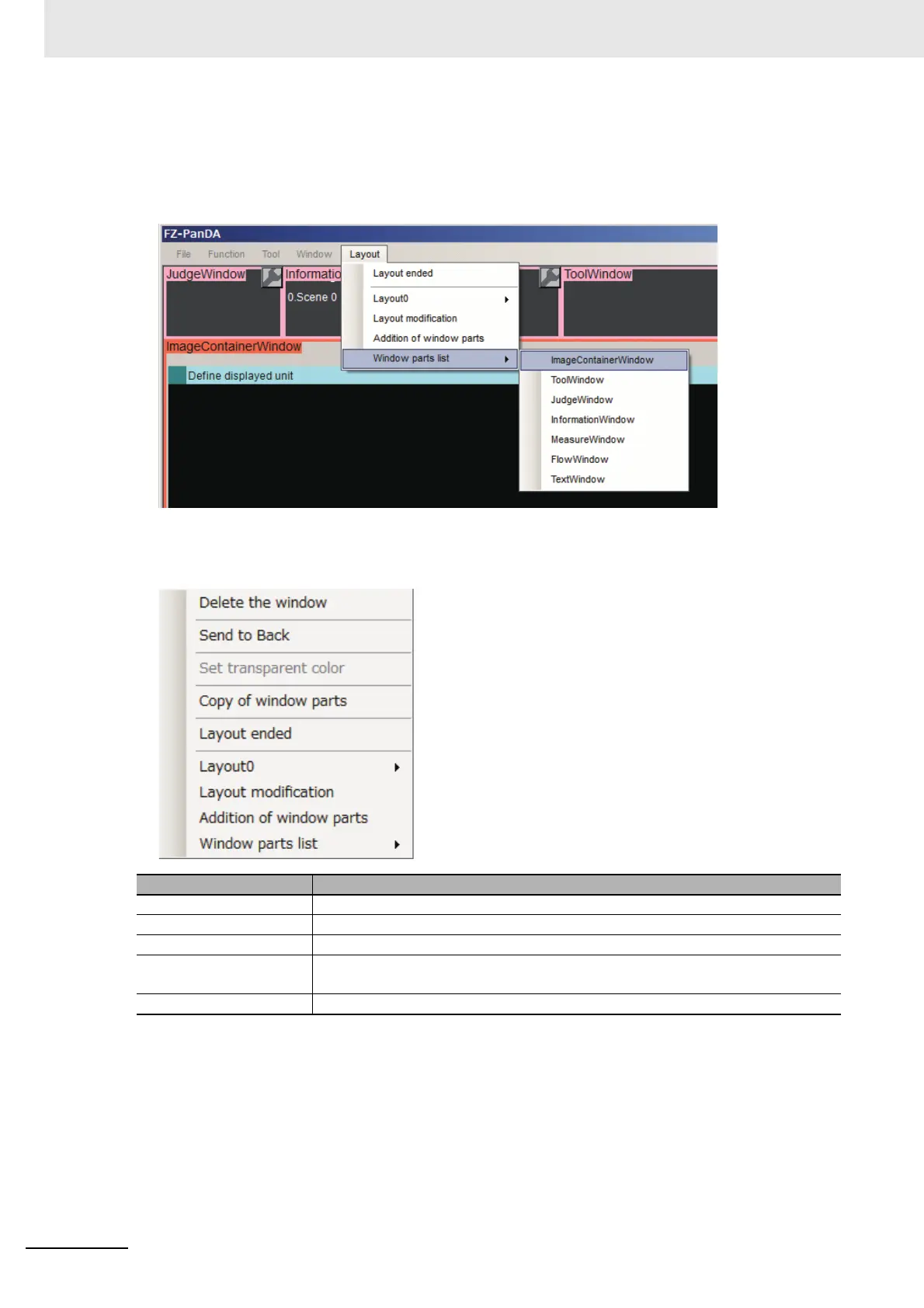

 Window parts list
When clicking it, symbol name for registered window parts is displayed.
The background color of the name of a selected window part is changed from pink to orange and the
window part is displayed in forefront.
 Right-click Menu 1
The following shortcut menu is displayed when right-clicking on window parts.
Item Description
Delete the window Deletes a selected window part.
Send to Back Moves a selected window part to the rearmost face.
Set transparent color Displays the “Set transparent color” dialog.
Copy of window parts
Copies a window part if the window part can be placed more than one. If the window
part cannot be copied, a message dialog box appears.
Layout menu Same as [Layout] dropdown menu list.
