Important
Do not edit the file or folders which saved to sensor controller project.
Doing so could cause the sensor controller to not start up normally when loading the project
file.
By editing a template before using it, it is possible to omit un-needed setting data.

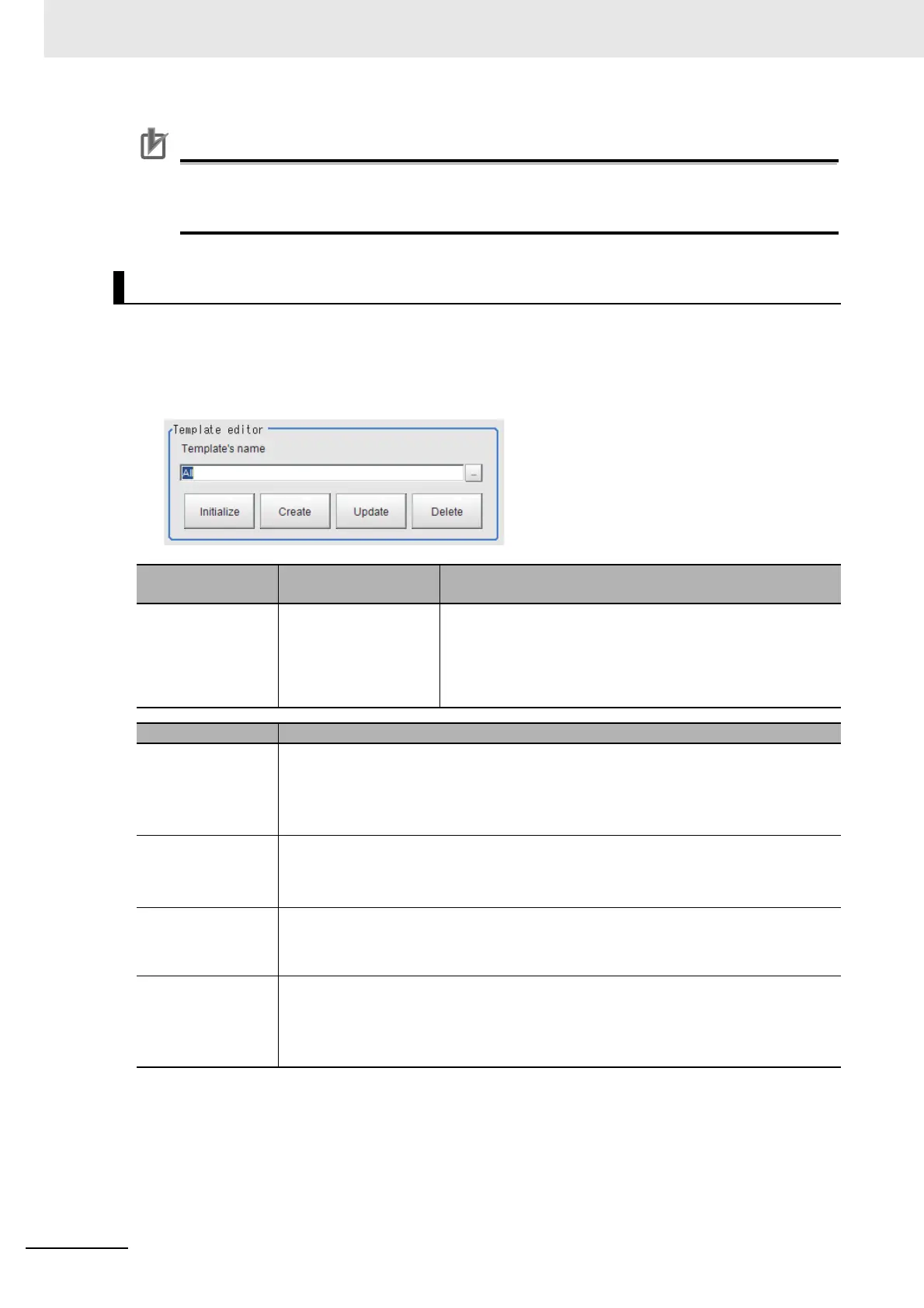

 Template editor screen
The settings for [Template editor] are explained here.
Editing a Template
Setting item
Setting value
[Factory default]
Description
Template’s name • [All]
• Common setting
• Line 0 + Common set-
ting
• Line 0
A selected template is reflected by [Template’s name].
When creating a new template, you can specify the template's
name using up to 256 characters.
The allowable number of characters is the same for double-
byte and single-byte characters.
Button Description
Initialize When initializing the setting of a template, click [Initialize] button.
Available templates are [All], [Common setting], [Line 0 + Common setting] and [Line 0].
The data edited the template is initialized and can not be returned to the edited data.
Refer to Initialize a template on page 9-25.
Create
Create a new template.
(*1)
Input a template’s name and select the setting data, and then click [Create] button.
Refer to Create a template on page 9-23.
*1. The number of template that can be registered is 1 to 256.
Update Without changing the template’s name, the selection of setting data is changed.
Select the template and select the setting data, and then click [Update] button.
Refer to Updating a template on page 9-24.
Delete Delete an unnecessary template.
Select the template and then click [Delete] button.
Deleted template can not be returned to the original.
Refer to Deleting a template on page 9-26.
