3 Basic Operations
3 - 20
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

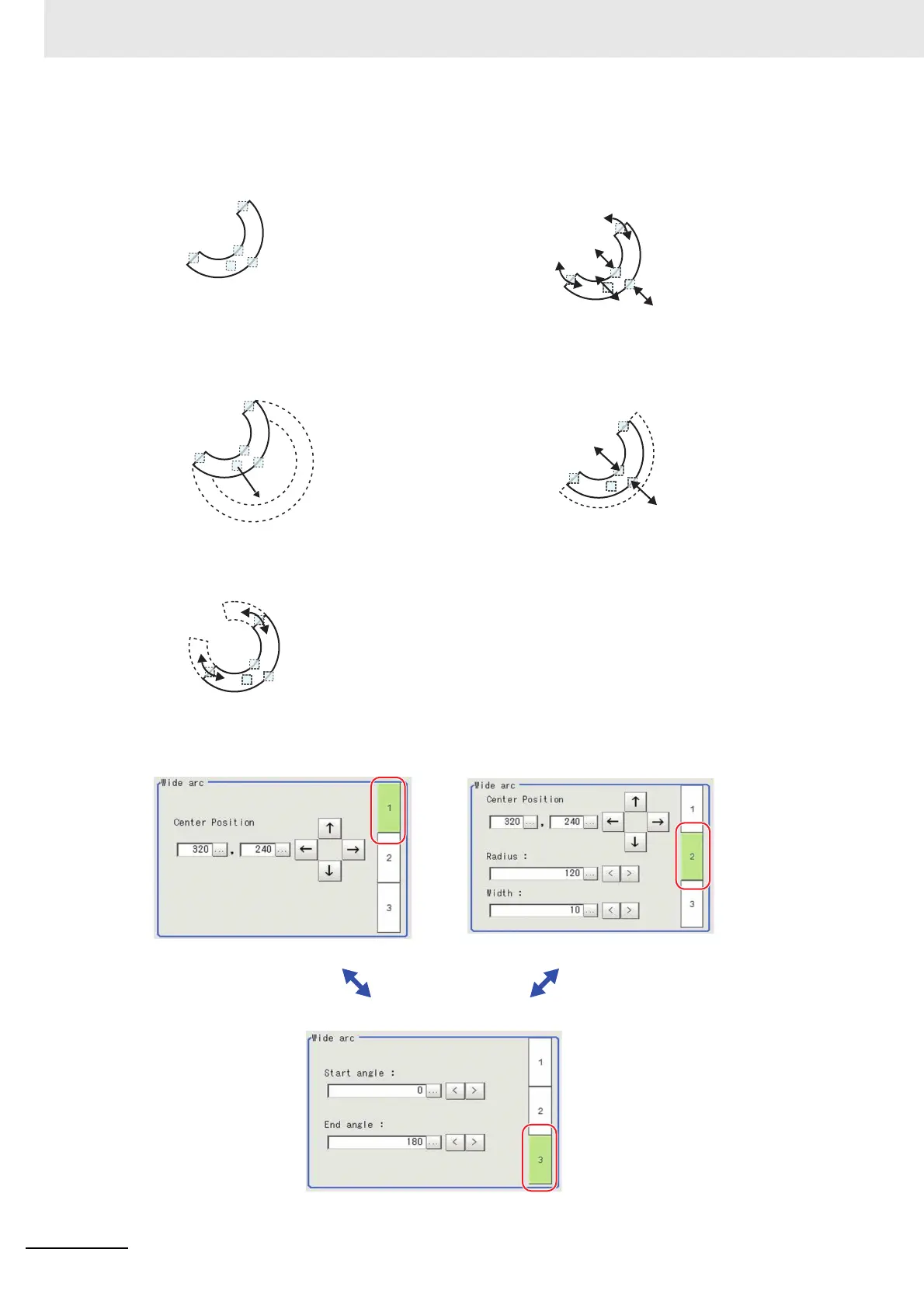

 Arc
• Using numbers for setting
The setting area consists of three windows below. Click the [1], [2], or [3] on the right side of the win-
dow to select the setting item.
• Image selection status • Dimension Adjustment
Drag the points.
• Ex.) When enlarging an arc
Drag the point inside the arc outward.
• Ex.) When adjusting the width of an arc
Drag a point on the inner or outer arc
inward or outward.
• Ex.) When changing the angle of arc (part
that is open) Drag one of the points inside
of the two lines at both ends of the arcs.
Points are displayed on
two lines at both ends of
the arcs, inside of the two
lines at both ends of the
arcs, on the inner arc, on
the outer arc, and inside
the closed arc shape.
