3 - 21
3 Basic Operations
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
3-2 Basic Knowledge about Operations
3

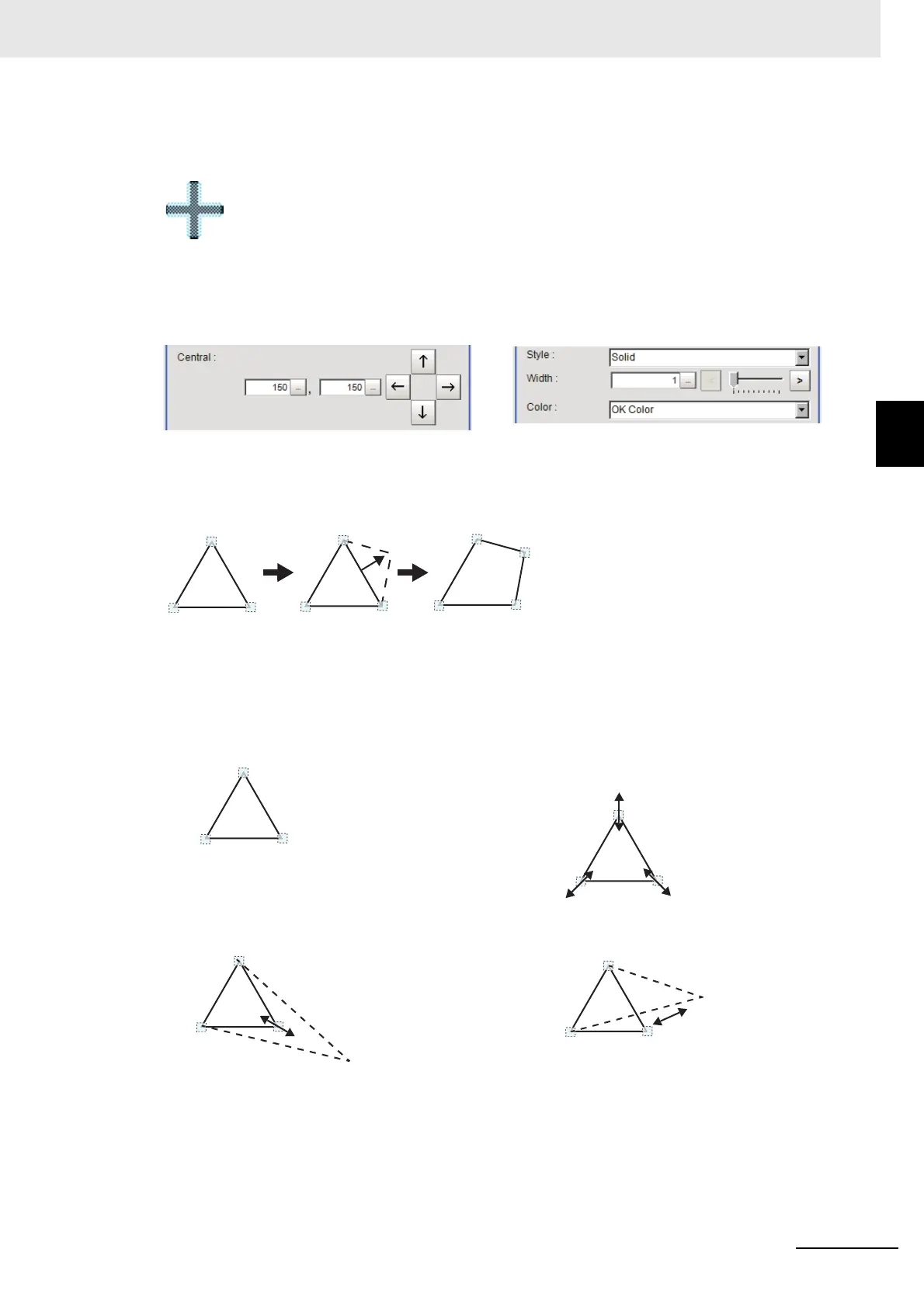

3-2-6 Setting Figures
 Crosshair Cursor
• Image selection status
Entire image is selected.
• Using numbers for setting
Setting is performed through input of numbers or through tapping on the arrows. The line type and
line color can also be changed at this window.
 Polygons (Triangle to Decagon)
• Drawing methods (for drawing a quadrilateral)
1 When [Polygon] is specified, a triangle is drawn at first.
2 If you drag and drop one of the sides at the point you want to make a new vertex, a new vertex
will be created.
If the number of vertices is not within 3 to 10, the image cannot be confirmed as a polygon.
• Image selection status • Dimension Adjustment
Drag the points.
• Example) When changing the angle of
one point Drag points (arbitrarily).
• Example) When changing the region
Drag points (arbitrarily).
Point is displayed at ver-
tex of figure.
