Omron MicroHAWK V320-F User Manual

A-11
Appendices
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
A
The LEDs indicate the following conditions:
• PWR (Green): On when power is on.
•FAIL (Red): On when No Read (Off in Read Cycle).
• LINK (Orange): On when communication is established.
• MODE (Orange): On in Read Cycle.
• TRIG (Orange): On when the TRIG signal (in parallel) is turned on.
• PASS (Green): On in Good Read (Off in Read Cycle).
Note:
When the Read Rate mode (command) is set, the LED indicator will be lit longer as the Read Rate increases.
In Bar Code Configuration mode, the LED indicators flash in order.

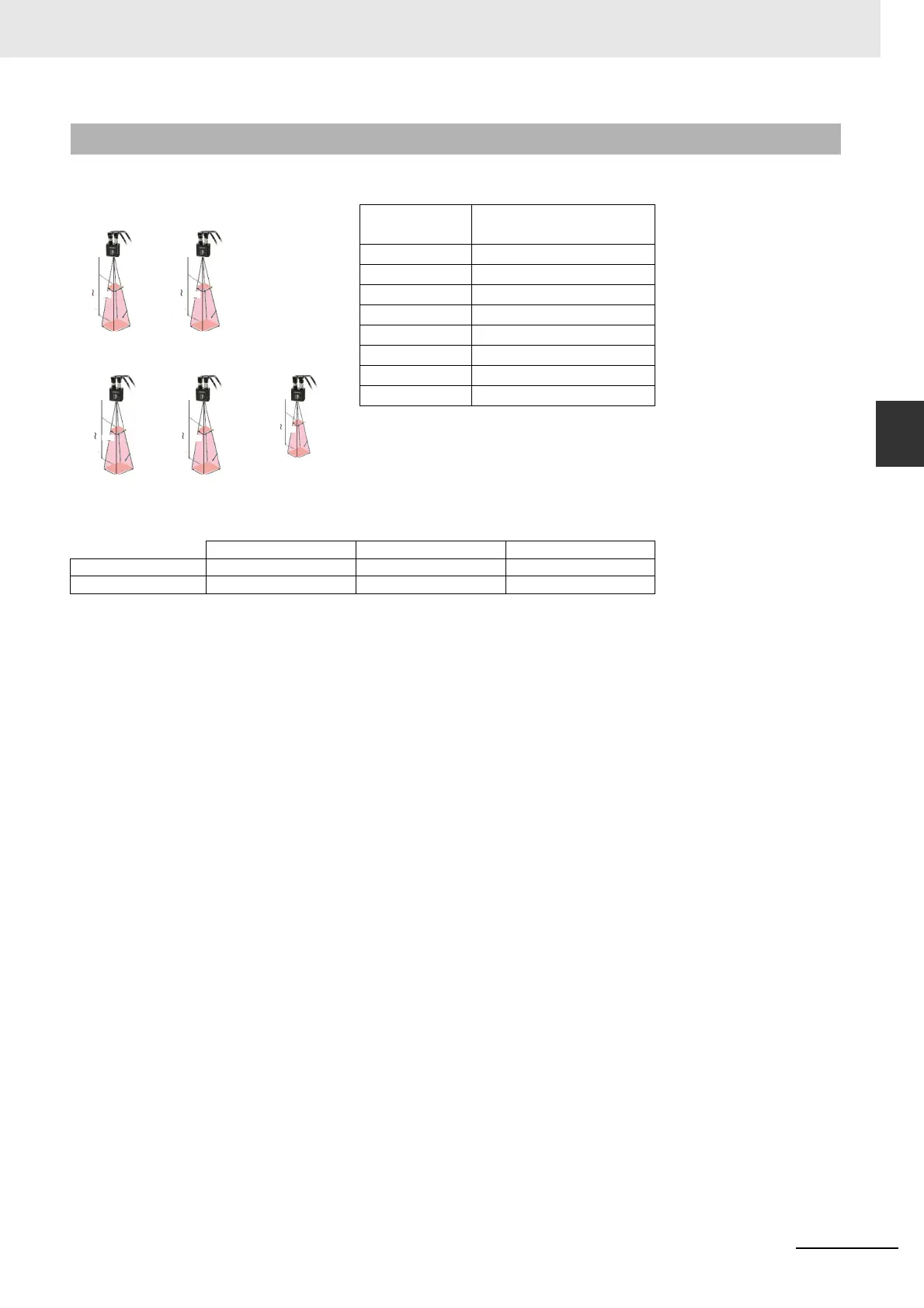

A-1-1 MicroHAWK V430-F Field of View and Installation Distance
V430-F102M03M V430-F081M03M V430-F050M03M
Field of View 65 mm 49 mm 35 mm
Installation Distance 102 mm 81 mm 50 mm
Field of view / Installation distance
Auto Focus
QSXGA Wide View
V430-F000W50C
Auto Focus
QSXGA Middle View
V430-F000M50C
(Unit: mm)
Auto Focus
SXGA Wide View
V430-F000W12M
Fixed Focus
WVGA Middle View
Auto Focus
SXGA Middle View
V430-F000M12M
Auto Focus
SXGA Narrow View
V430-F000N12M
50
37
210 265
51
Field of
view
Field of
view
300
50
42.9
235.7 314.3
57.2
Field of
view
300
50
27.4
148.8 198.4
36.5
Field of
view
300
40
7.5
29.5
39
10
Field of
view
150
50
25
143 184
35.5
300
Model Minimum 2D Element Size (mm)*
V430-F000W50C 0.13
V430-F000M50C 0.09
V430-F000W12M 0.13
V430-F000M12M 0.09
V430-F000N12M 0.05
V430-F050M03M 0.13
V430-F081M03M 0.19
V430-F102M03M 0.26
V430-F000W50C: WD = 50 mm, Field of view = 51 × 37 mm
V430-F000M50C: WD = 50 mm, Field of view = 35.5 × 25 mm
V430-F000W12M: WD = 50 mm, Field of view = 57.2 × 42.9 mm
V430-F000M12M: WD = 50 mm, Field of view = 36.5 × 27.4 mm
V430-F000N12M: WD = 40 mm, Field of view = 10 × 7.5 mm
The minimum size is what could be read in ideal conditions.
