4-6-1 Output On
4-6 Outputs
Bring up the Output 1, Output 2, and Output 3 dialogs by clicking on the Outputs section at the lower
left of the Setup view. For each output you can determine the Output On behavior, Mode, Pulse
Width, and State. Outputs 2 and 3 also allow you to determine
output behavior based on
Trend Options
parameters or
Symbol Quality Options
parameters.

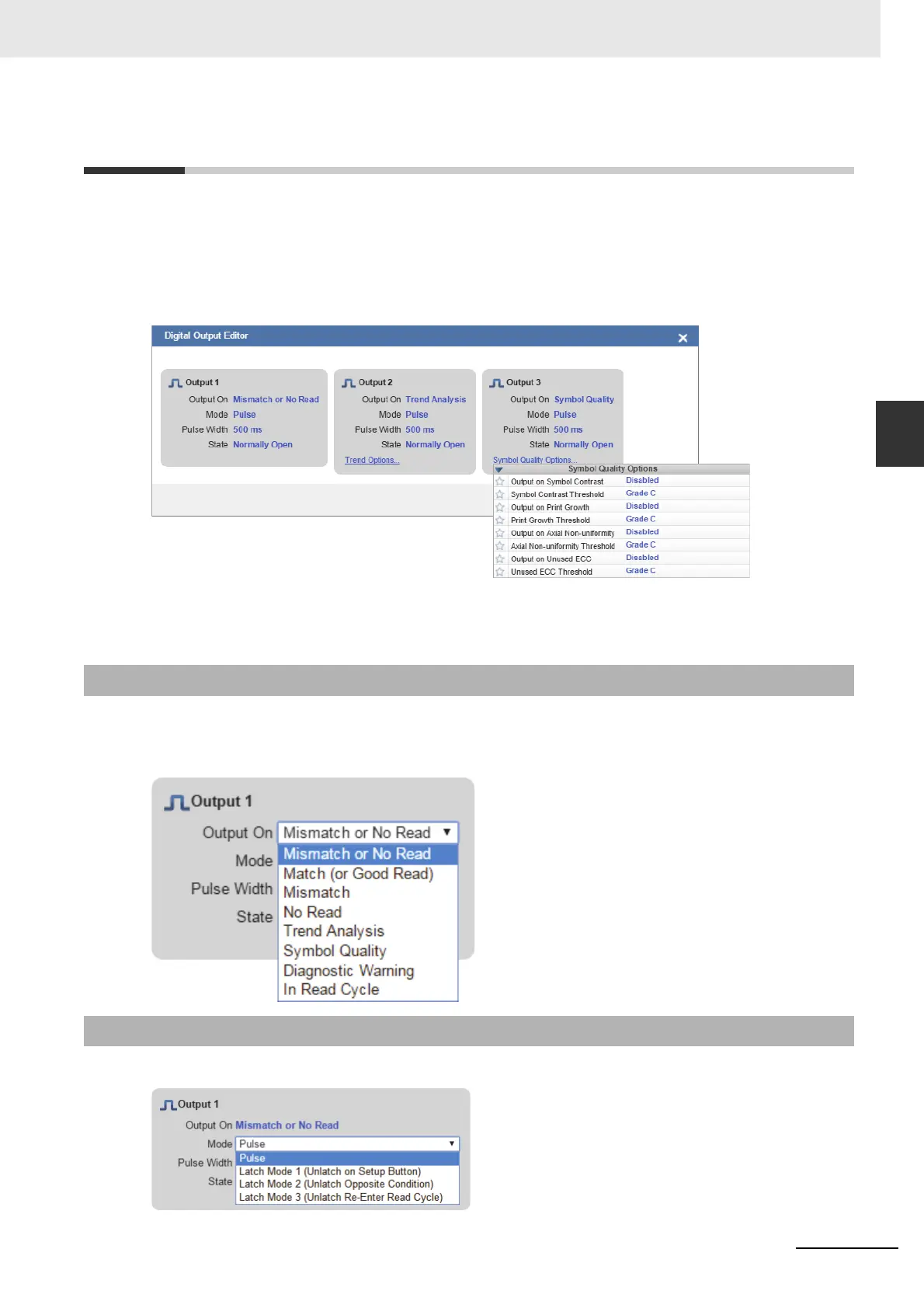

This example shows the dialog that appears when you click Symbol Quality Options. A similar dialog
would also appear for Trend Options under Output 2.
Note: The 1, 2, and 3 output indicators at the lower right of the screen display the results of the last
read cycle.
Output On provides discrete signalling to host software to control external devices such as PLCs and
relays. It is useful for routing, sorting, and to prevent mis-packaging and mis-routing. This option
allows you to set the conditions under which an output (or outputs) will be activated.
Output Mode sets the condition in which the discrete output is de-activated.
4-6-1 Output On
4-6-2 Mode
