4 Setup
4-2
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
4-1 Cycle

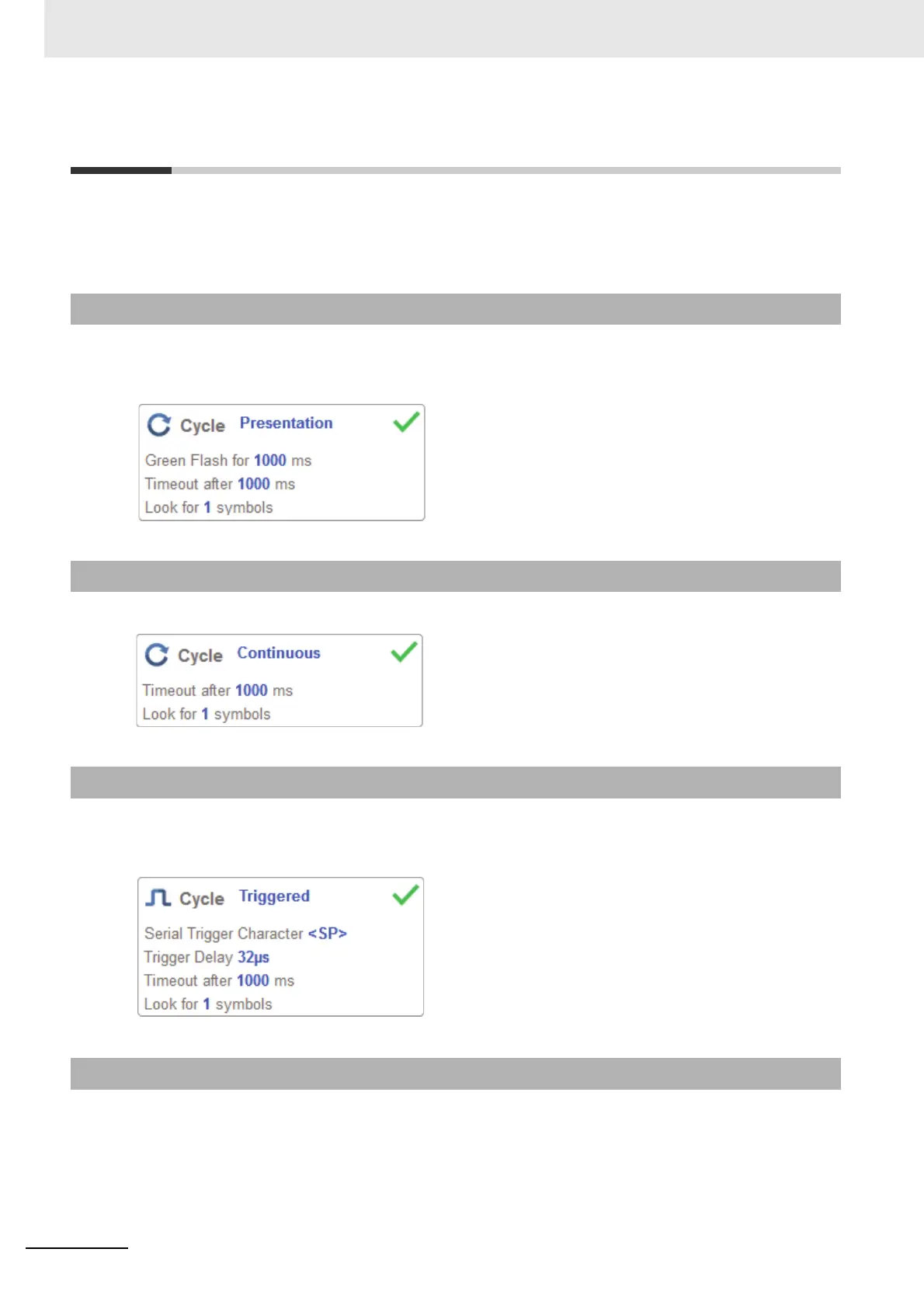

The Cycle section of the Setup view allows you to modify the trigger, determine the number of symbols
for the reader to expect, and set Read Cycle Timeout. A dropdown menu of various Cycle types
provides a variety of options, each with configurable parameters.
This mode uses Continuous Read Auto along with Continuous Capture Mode and a Timeout at
End of Read Cycle. Green Flash Mode is set to Static Presentation and the Green Flash Duration
is set to 250 ms.
This mode allows you to set the
Read Cycle Timeout
and the expected
Number of Symbols
from
1
to
100
.
This mode sets the read cycle to Serial Data and Edge, End of Read Cycle is set to Timeout or New
Trigger, and Capture Mode is set to Rapid Capture with 1 capture. You can adjust the Serial Trigger,
Trigger Delay, Timeout, and Number of Symbols.
This mode uses External Level with a Read Cycle Timeout and Continuous Capture, allowing you
to set Leading Edge and Trailing Edge as well as the Serial Trigger and the Start and Stop
Characters.
4-1-1 Presentation
4-1-2 Continuous
4-1-3 Triggered
4-1-4 Start / Stop
