1 Overview
1-10
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual

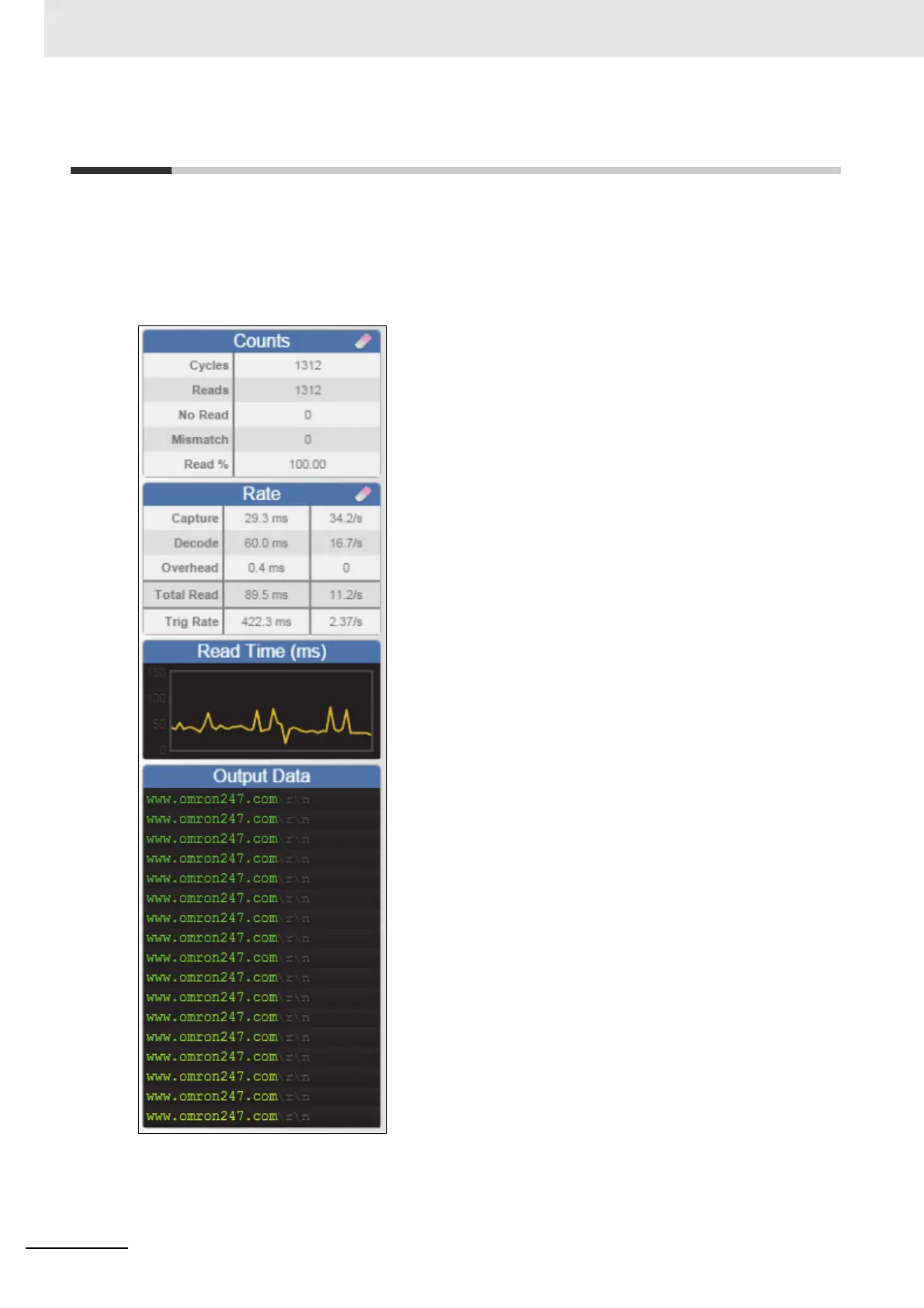

1-8 Right Panel
The area to the right of the Image Area shows counters for Cycles, Reads, No Reads, and Mismatches
(which only applies if you have defined a match string); statistics for the rate of Capture, Decode,
Overhead, Total Read, and Trigger Rate; a line graph representation of read time; and a display area
for the output of decoded data.
You may find the information displayed on this panel to be most useful in the Run view, but it appears in
all three of WebLink's primary views.
