Pulse Width sets the time in milliseconds that the discrete output remains active.
Output State allows you to set the active electrical state of the discrete output to Normally Open or
Normally Closed.
Triggered Outputs show when outputs are triggered and give you the ability to trigger outputs
manually.

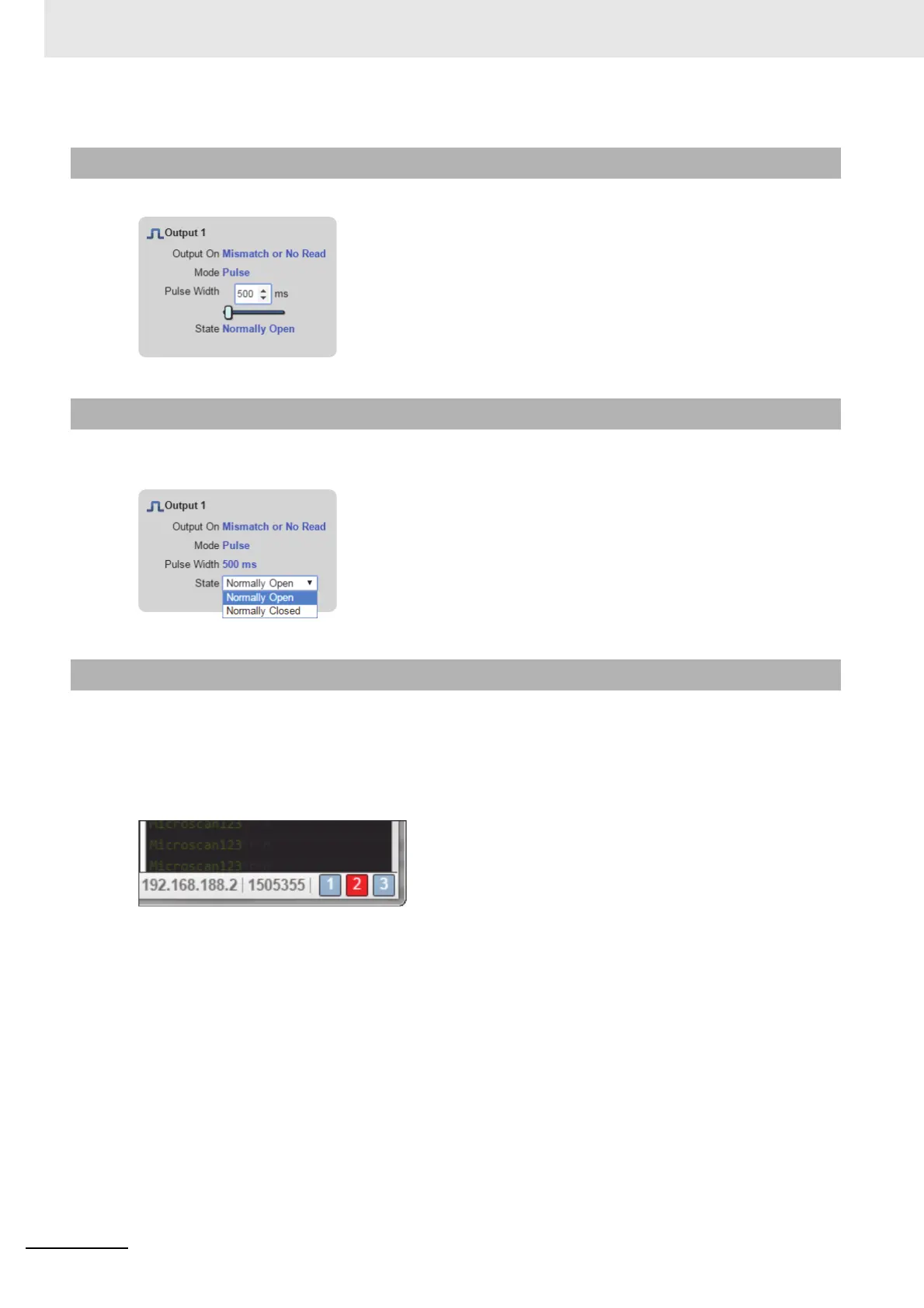

Outputs 1 - 3 are located in the lower right corner of the user interface. They function both as buttons
that trigger whichever output you click, and as a display that shows which output is currently being
triggered. In the example below, output 2 is being triggered.
4-6-3 Pulse Width
4-6-4 State
4-6-5 Triggered Outputs
Note: These three output indicators display
the results of the last read cycle.
