Omron MicroHAWK V320-F User Manual

Appendices
H-16
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
Turns on the target pattern whenever the associated button position is selected. To disable, quickly press
and release the Setup button.
•Note: This mode is the only one that does not require that the button be released before taking effect. If it is necessary
to have the target system on before another operation such as calibration or read rate is performed, ensure that the tar-
get system mode is assigned a lower position so that it will be activated first.
Enables bar code configuration mode whenever the associated button position is selected. When
enabled, the imager can accept configuration commands from symbols. To disable, quickly press and
release the Setup button.
To execute Setup button commands:
 Position 1
Hold down button until the 20% LED illuminates.
 Position 2
Hold down button until the 20% and 40% LEDs illuminate.
 Position 3
Hold down button until the 20%, 40%, and 60% LEDs illuminate.
 Position 4
Hold down button until the 20%, 40%, 60%, and 80% LEDs illuminate.
Target System
Bar Code Configuration

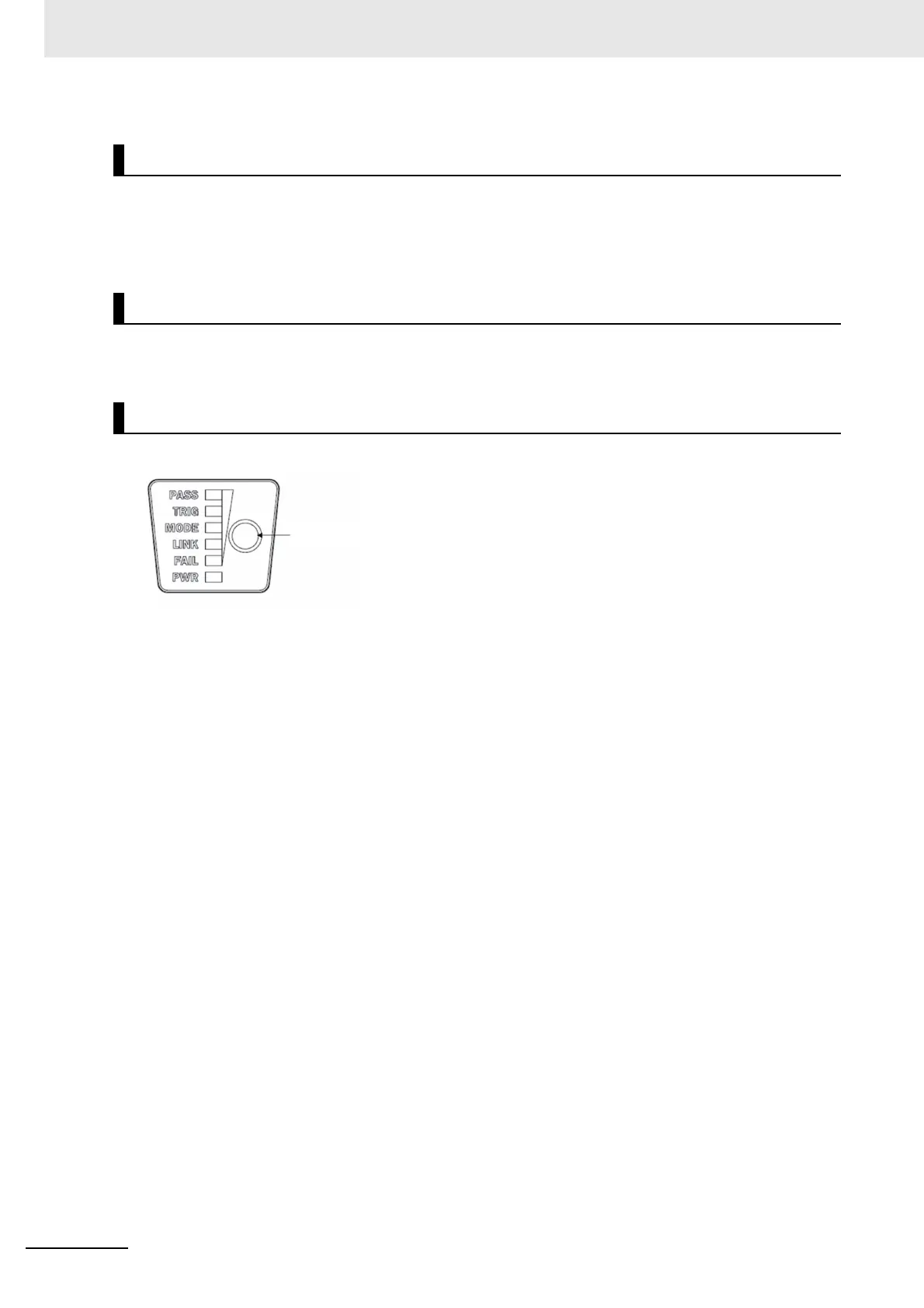

Setup Button Operation
Setup Button
