2-21

2 Quick Start

MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual

2-2 MicroHAWK and WebLink

Quick Start

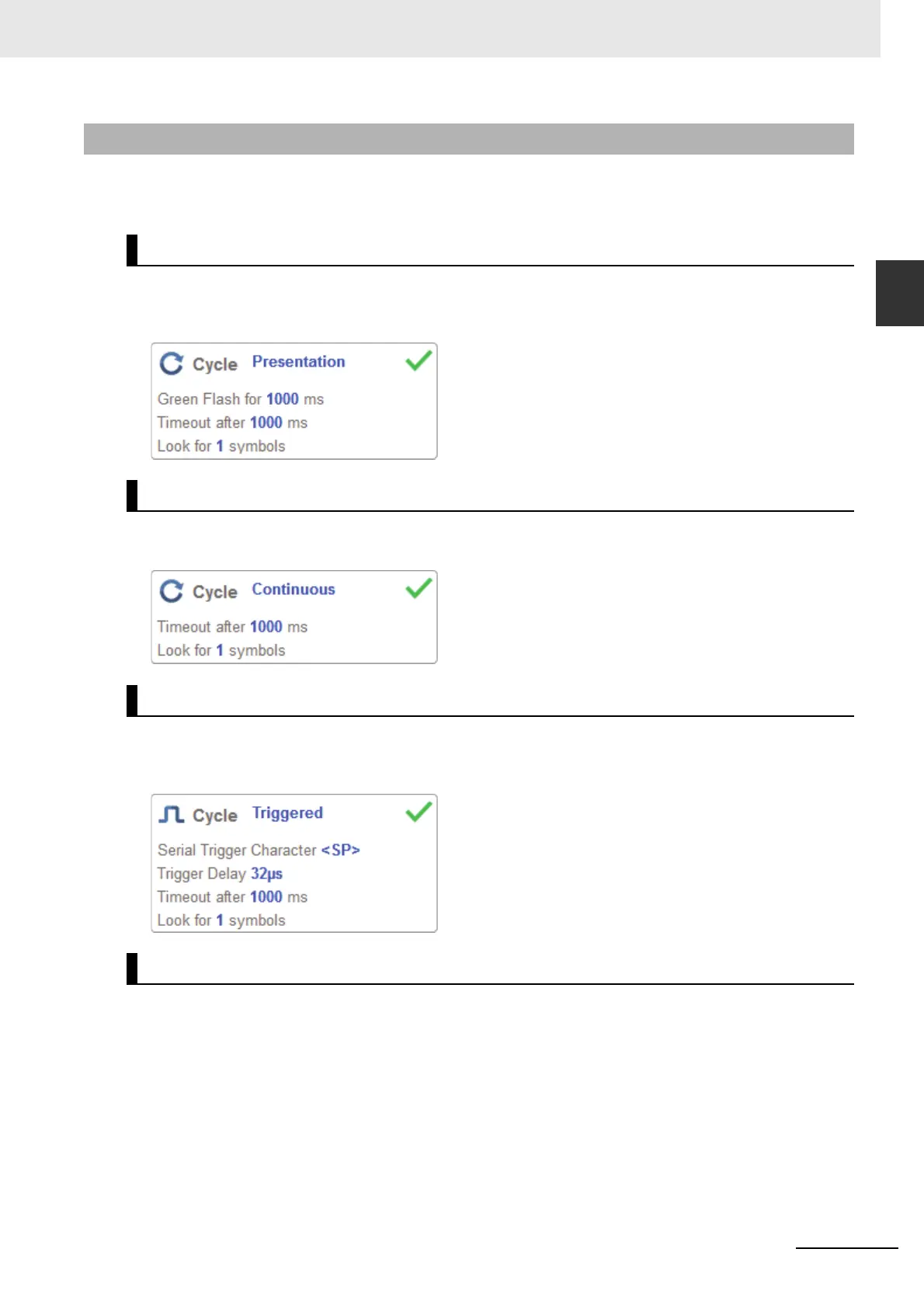

2-2-8 Configure Read Cycle Settings

The Cycle section of the Setup view allows you to modify the trigger, determine the number of symbols

for the reader to expect, and set Read Cycle Timeout. A dropdown menu of various Cycle types

provides a variety of options, each with configurable parameters.

This mode uses Continuous Read Auto along with Continuous Capture Mode and a Timeout at

End of Read Cycle. Green Flash Mode is set to Static Presentation and the Green Flash Duration

is set to 1 second.

This mode allows you to set the Read Cycle Timeout and the expected Number of Symbols from 1

to 100.

This mode sets the read cycle to Serial Data and Edge, End of Read Cycle is set to Timeout or

New Trigger, and Capture Mode is set to Rapid Capture with 1 capture. You can adjust the Serial

Trigger, Trigger Delay, Timeout, and Number of Symbols.

This mode uses External Level with a Read Cycle Timeout and Continuous Capture, allowing you

to set Leading Edge and Trailing Edge as well as the Serial Trigger and the Start and Stop

characters.

 Serial Trigger (Non-Delimited) Off

When Serial Trigger is set to Off, the start and stop characters are set to NULL, meaning that the

trigger is disabled.

2-2-8 Configure Read Cycle Settings

Presentation

Continuous

Triggered

Start / Stop
