2-2-12 Configure Output 1, 2, and 3 Settings
Bring up the Output 1, Output 2, and Output 3 dialogs by clicking on the Outputs section at the lower
left of the Setup view. For each output you can determine the Output On behavior, Mode, Pulse
Width, and State. Outputs 2 and 3 also allow you to determine output behavior based on Trend
Options parameters or Verification Options parameters.

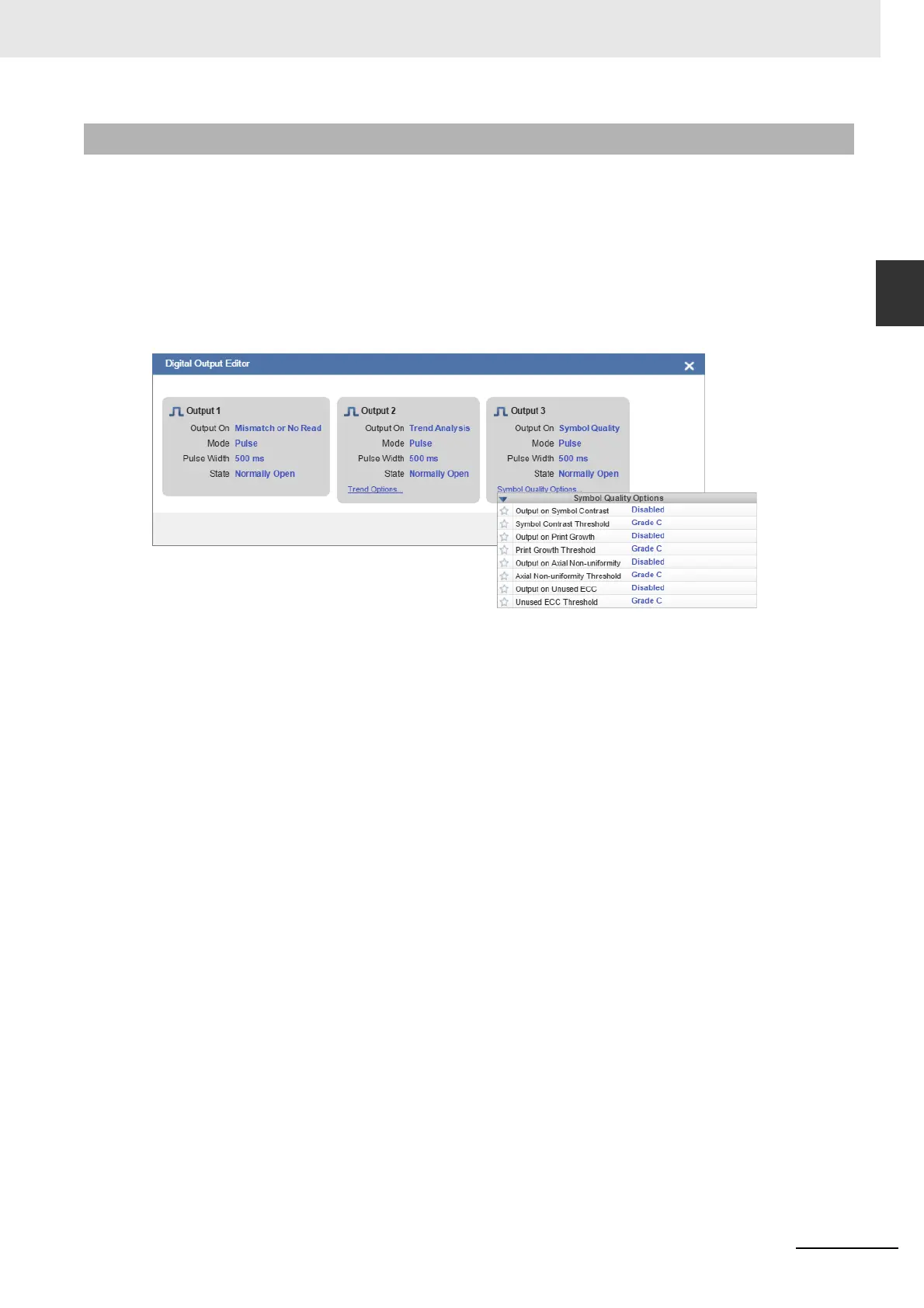

This example shows the dialog that appears when you click Symbol Quality Options. A similar dialog
would also appear for Trend Options under Output 2.
Note: The 1, 2, and 3 output indicators at the lower right of the screen display the results of the last
read cycle.
