Remove the Motherboard Assembly
See “Servicing the Front LED/USB Indicator Modules” on page 130.
7.

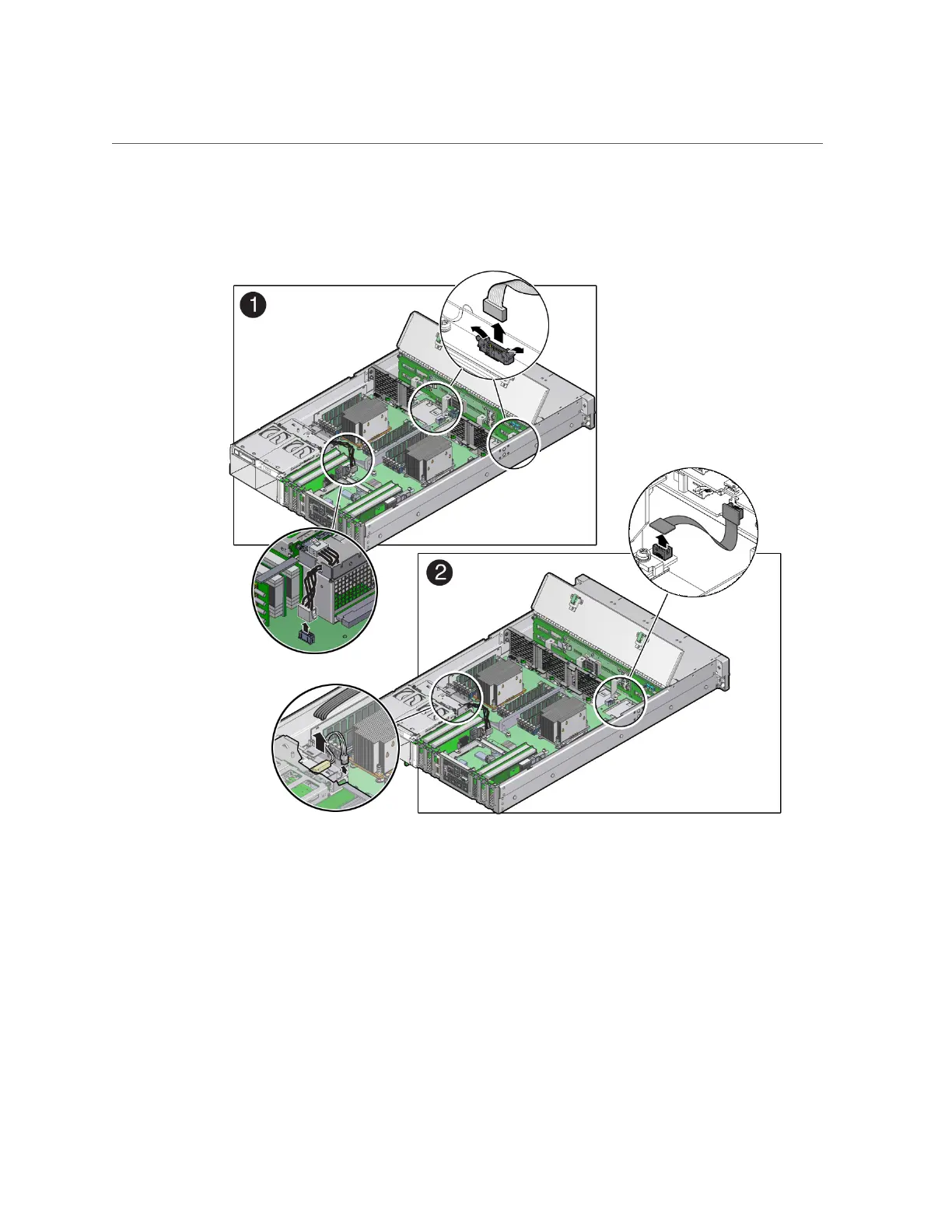

Disconnect the auxiliary signal cable from the motherboard to the front storage
drive backplane [2].
See “Servicing the Storage Drive Backplanes” on page 112.
8.
Disconnect the power cable from the motherboard to the front storage drive
backplane [2].
See “Servicing the Storage Drive Backplanes” on page 112.
Servicing Components That Require Server Power-Off 147
