Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
183
Motor continuous usage
In this chapter you can read about:
Linearized motor characteristic lien for different operating points ................................... 183
This kind of monitoring watches over the continually deliverable torque (continuous
current). This continuous current depends on the velocity and is acquired online
from the linearization of the motor characteristic line.

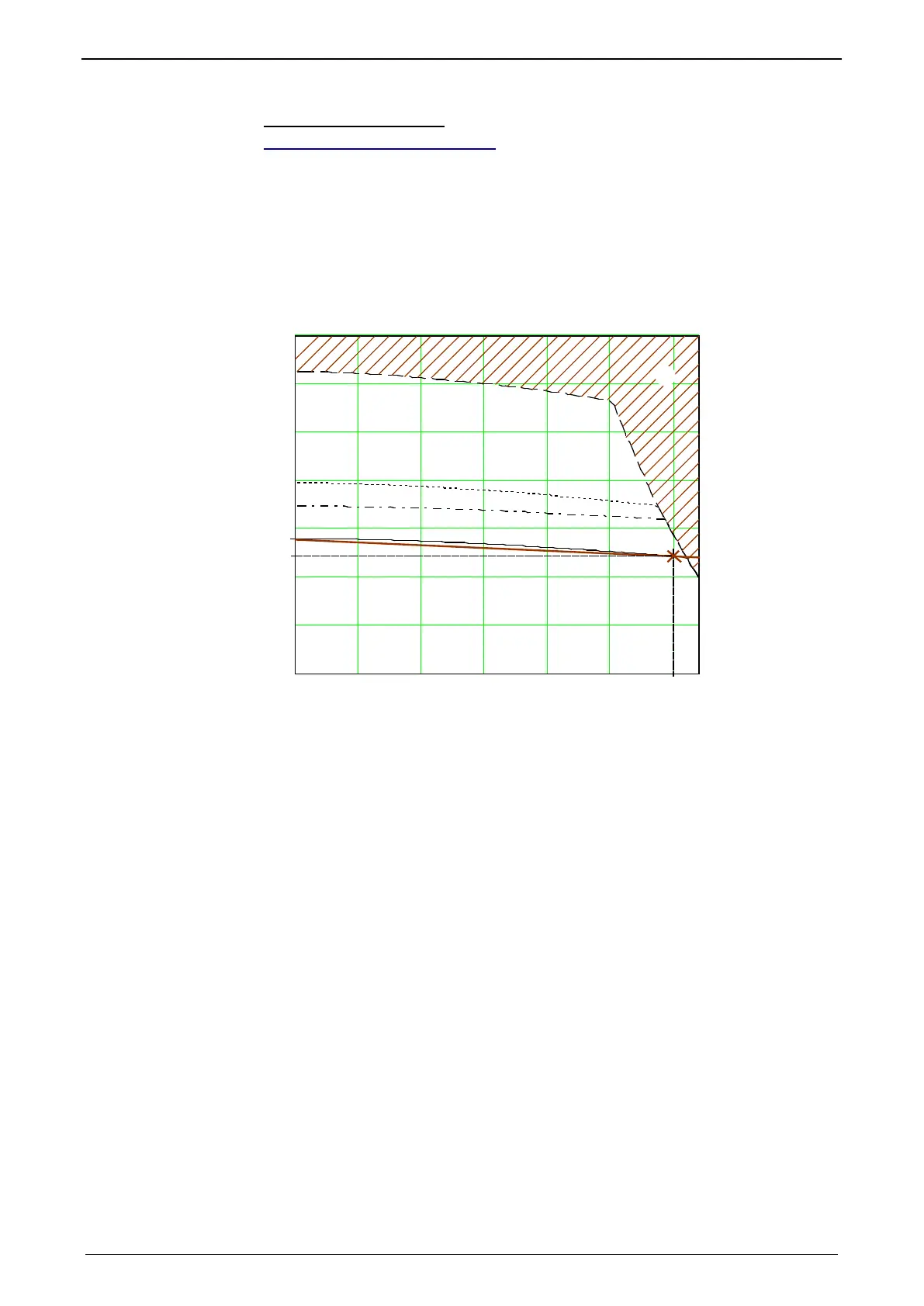

Linearized motor characteristic lien for different operating points
Nominal point
0 500 1000 1500 2000 2500 3000
0
0.5
1
2
2.5
3
3.5
S1 65°C DT
S3 50% 65°C DT
S3 20% 65°C DT
S1 105°C DT
[A]
[1/min]
22
I
0
I
N
n
N
1
I
0
: Standstill current
1: Nominal point
I
N
: Nominal current (defined in the MotorManager)
n
N
: Nominal Speed
2: Forbidden range
For monitoring the continuous utilization, the linearized characteristic line between
I
0
und I
N
/ n
N
is used as a threshold.
