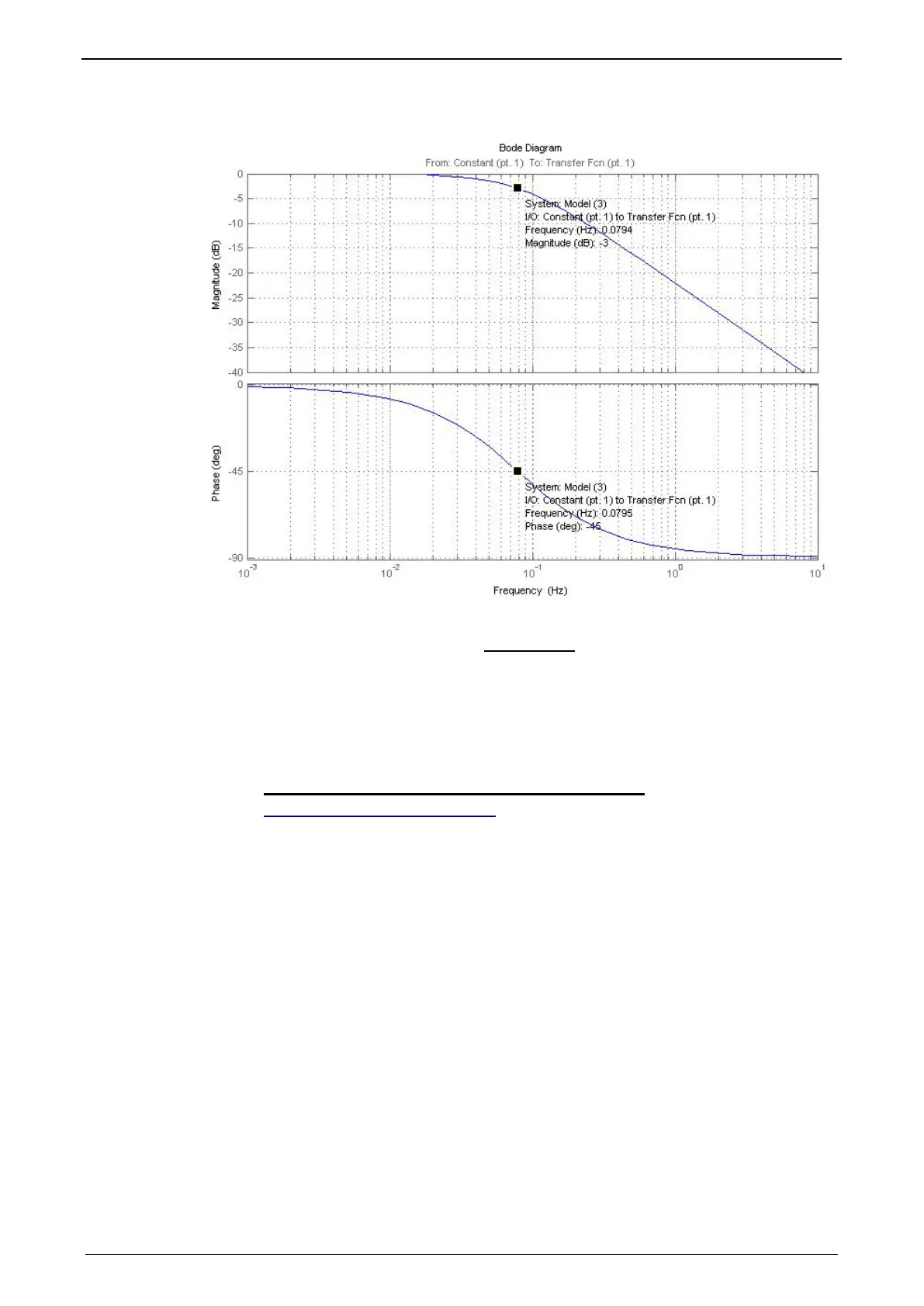

Frequency response of the P-TE component (value and phase)
The cut-off frequency
Hz
T
f
E
0795,0
2
1
0
=
⋅
=
π
is the
frequency where the input signal is attenuated by 3dB (-3dB attenuation). The
phase shift between the output and the input is -45° at this frequency.
Precisely this cut-off frequency is called the bandwidth of a control loop.
Setpoint and disturbance behavior of a control loop
In this chapter you can read about:
Demand behavior .......................................................................................................... 198
Disturbance behavior ..................................................................................................... 198
Test functions ................................................................................................................ 198
Characteristics of a control loop setpoint response ........................................................ 199
The setpoint behavior is the behavior of the control loop for the setpoint variable W.
We assume that the disturbance variable Z=0.
The disturbance behavior describes the behavior of the control loop for disturbance
variable Z. In this case, we assume, in analogy to the setpoint behavior, that the
setpoint variable W=0.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
