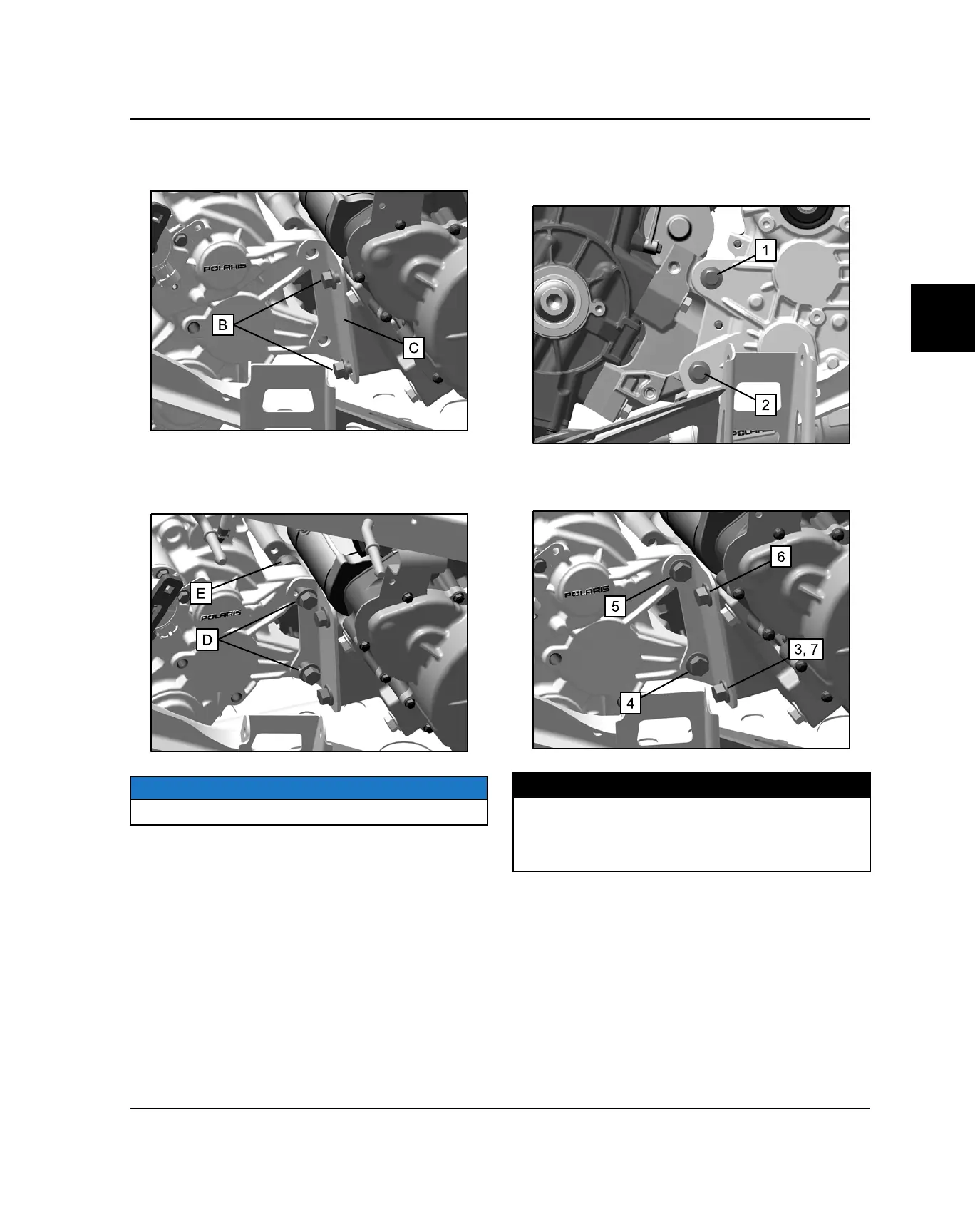

8. Loosen the two bolts (B) retaining the transmission
coupler bracket (C) to the engine on the right side.
9. Install NEW two bolts (D) and transmission joint
retainer plate (E) on the right side. Hand tighten the
bolts so they remain loose at this time.
NOTICE
DO NOT torque fasteners at this time.
10. Install NEW two longer bolts into left side mounting
holes. Torque left side mounting bolts to specification
using the numbered sequence shown.
11. Torque right side mounting bolts to specification
using the numbered sequence shown.
TORQUE
Engine / Transmission Mounting Bolts:
Step 1-2: 64 lb-ft (87 Nm)
Step 3: 5 lb-ft (7 Nm)
Step 4-7: 44 lb-ft (60 Nm)
12. Remove the clutch center distance tool.
