7.26
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.

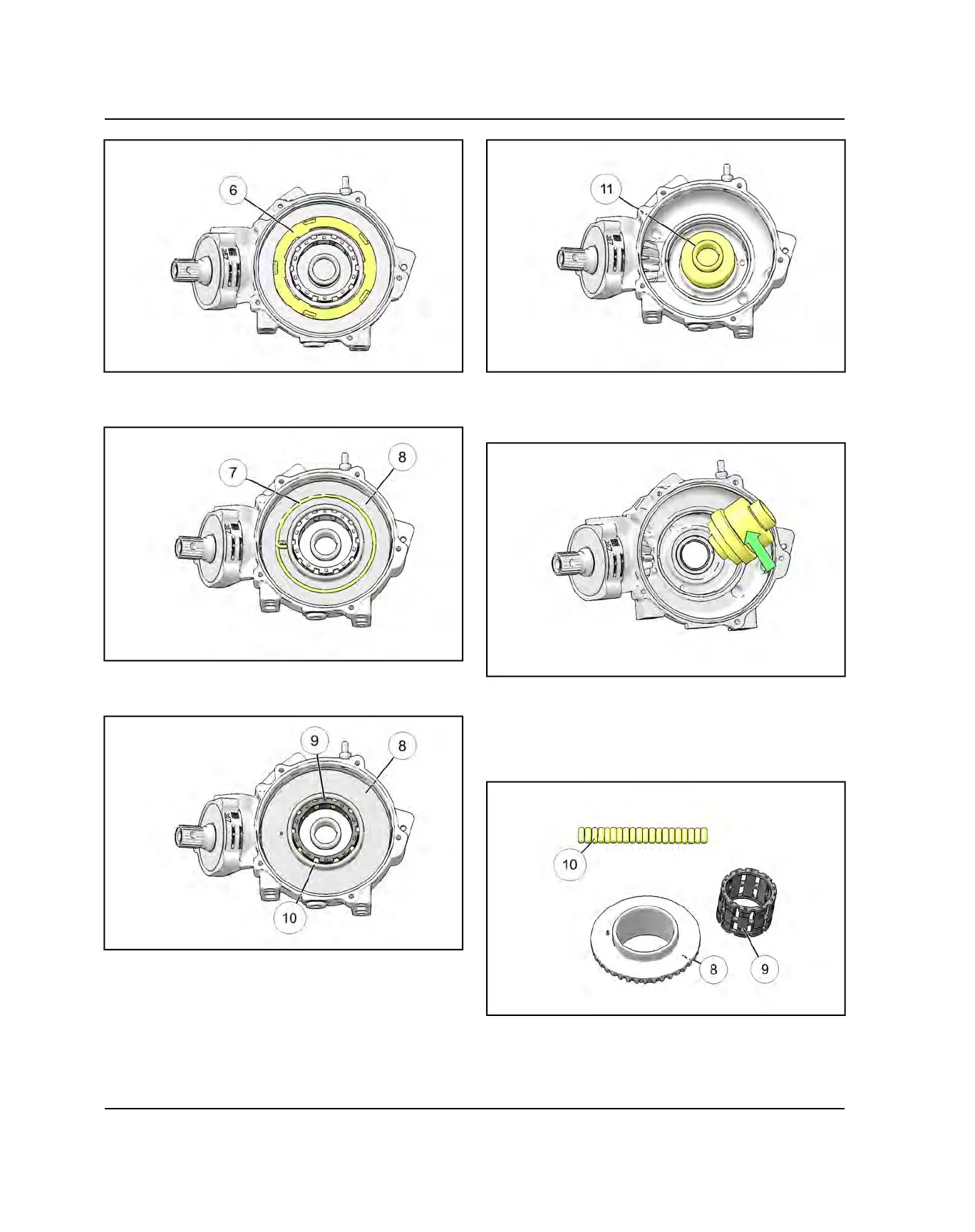

8. Remove the torsion spring
u
from the top of the ring
gear
i
.
9. Remove the roll cage assembly
o
, rollers
a
, and
ring gear
i
. Inspect for wear.
10.Remove the LH output hub
s
.
11. Inspect the bearing and contact surfaces of the output
hub for signs of wear or damage. Replace component
if found to be worn or damaged.
12.Thoroughly clean all parts. Inspect the bearing
surfaces of the output hub. Inspect the rollers
a
for
nicks, scratches and flat spots. Inspect the roll cage
o
for damage or cracks. The rollers must slide up
and down freely within the roller cage surfaces.
13.Inspect the ring gear
i
for inconsistent wear patterns
or damage. The surfaces should be free of nicks or
burrs.
FINAL DRIVE
