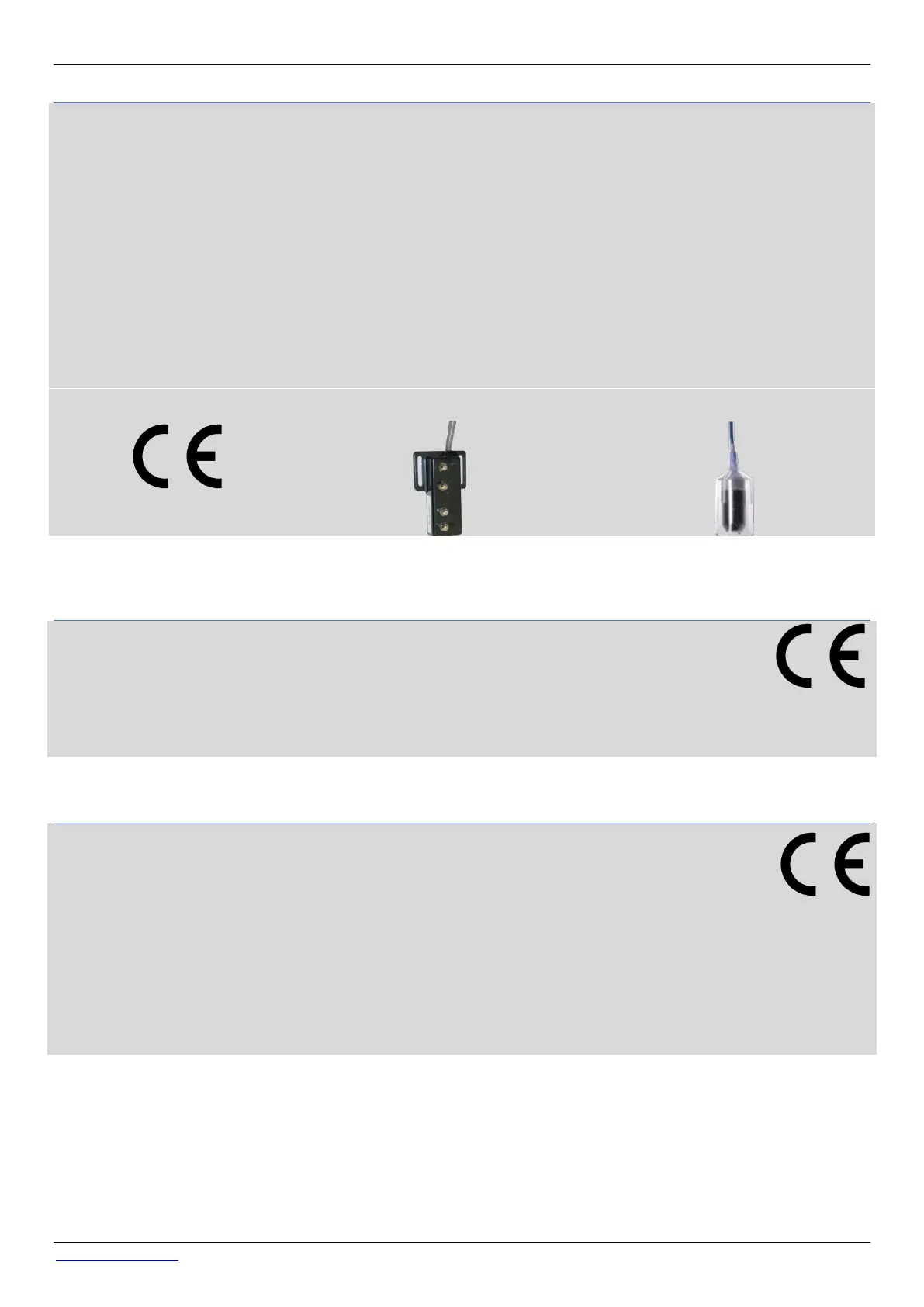

7.3 WATER LEVEL CONTROL
Components
Waterline Kit
Buffer Tank Kit
Water level sensor.
1 sensor
4 sensors
Solenoid valve
1
1
PVC saddles 50mm
1
1
PVC saddles 63mm
1
1
90° PVC connector (20mm to 20mm)
1
1
Straight PVC connector 20mm
2
2
Non-return valve, brass
1
1
Stop valve 15mm
1
1
Reducing connector (20mm to 15mm)
1
1
Technical Specifications
Output Sensor
5VDC, conforms Low Voltage Directive (LVD)
Output valve
24 VAC
24 VAC
Service pressure
3.5 Bars
3.5 Bars
Cable length
20m
5m
Height
70mm
40mm
Width
45mm
25mm
Deep
15mm
25mm
7.4 XM8 EXTENSION MODULE
Components
XM8 Extension Module
1
Technical Specifications
Power Supply
12V - 300mA
Auxiliary channel 9 to 15
6A – 230VAC
Inputs 3 to 10
5 Vdc
Protection
IP55
Conformity
CE, including Low Voltage Directive (LVD)
7.5 WASTE BACKUP VALVE
Components
NC Valve
1
Control solenoid
1
PVC union set
2
63mm -> 50mm adapter
2
PVC saddle 63mm
1
PVC saddle 50mm
1
Vinyl tubing connection kit
1
Vinyl tubing
3m
Technical Specifications
Output solenoid
24 VAC
Service pressure
10 Bars
Membrane
Nylon reinforced
