PoolCop Evolution - Figure 52 - Connection Example with Astral Roussillon Cover; Figure 53 - Connection Example with SWIMSAFE Cover

P o o l C o p M a n u a l : V 4 2 EN P a g e | 49
www.poolcop.com PCFR

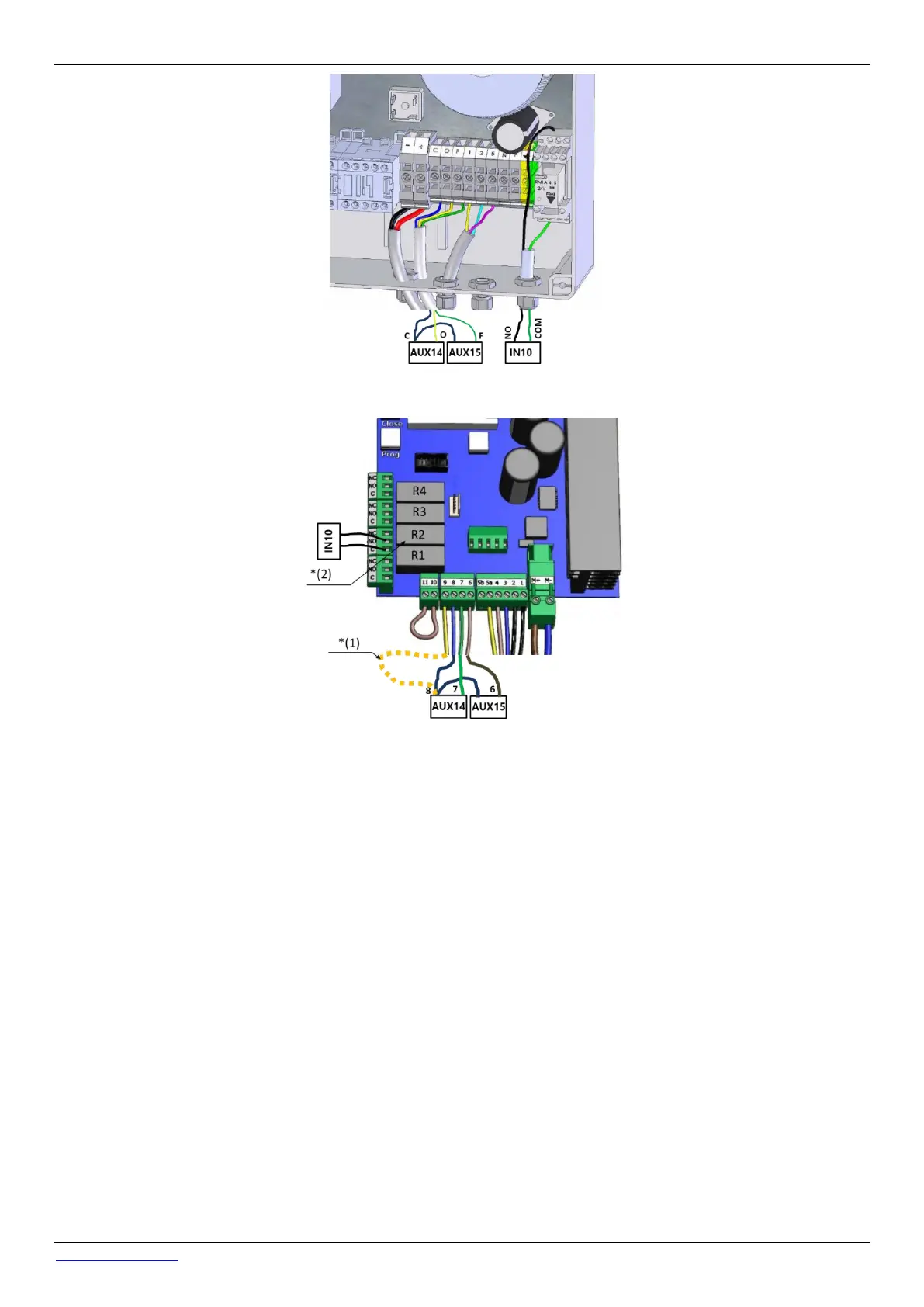

Figure 52 – Connection example with Astral Roussillon cover
Figure 53 – Connection example with SWIMSAFE cover
Note * (1): If 8 and 9 are not interconnected, the cover can only be operated with the key on the local control panel. Otherwise, the
key will no longer has any effect, and the control of the cover is always possible either locally either remotely.
Note * (2): In the configuration menu, assign function F1 (Open) for relay R2.
