Installing the Dosing Pump
Install the dosing pump, associated aspiration and injection pipes and connectors as per the dosing pump instruction and
installation manual.
Ensure that the correct liquid consumable pH- or pH+ is installed and secured.
Route the power supply for the dosing pump via AUX 7 in the CCU.
Connect the dosing pump to the mains power supply as per the pump installation manual, ensuring electrical protection
and conformity.
CAUTION:
Respect AUX 7 Relay max Amps rating. Preferred wiring diagram as per figure below, on the right.

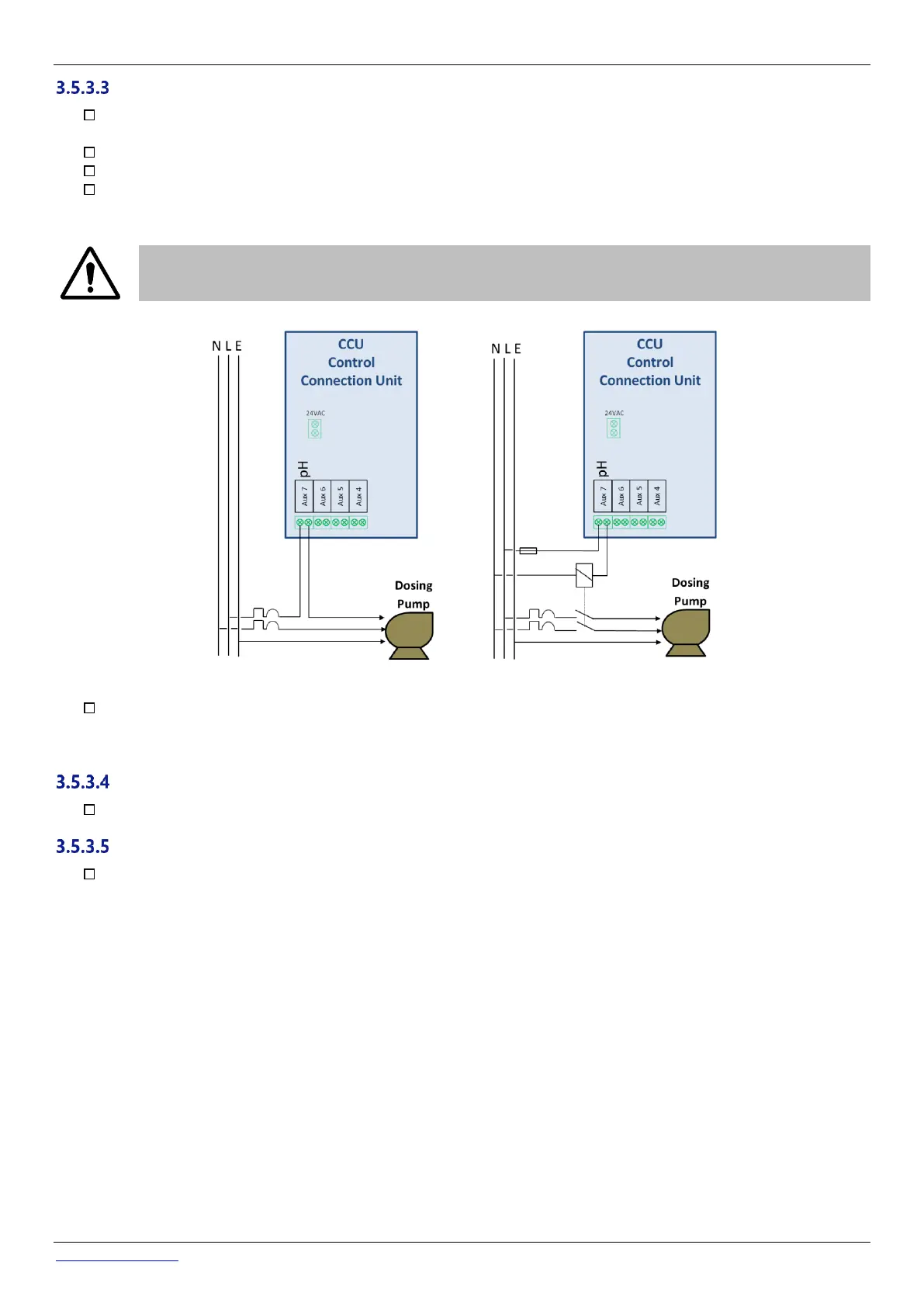

Figure 28 – pH Dosing pump connexion
Test and prime the dosing pump:
o In WATER AND TREATMENT, PH CONTROL, select priming ON.
pH Control Programming
Refer to 5.4.2 pH Control.
Activating pH Control
In the MAINTENANCE menu, command the PoolCop to MEASURE PH.
