PoolCop Evolution - Connecting a Variable Speed Pump; Figure 14 - Pentair Intelliflo VSD with Intellicomm; Figure 15 - Pentair Superflo VS;VS2

P o o l C o p M a n u a l : V 4 2 EN P a g e | 25
www.poolcop.com PCFR
Connecting a Variable Speed Pump
See the VARIABLE SPEED PUMPS GUIDE downloadable on our internet website www.poolcop.com in RESOURCES /DOWNLOADS
section for compatibility, connection, control and programming.

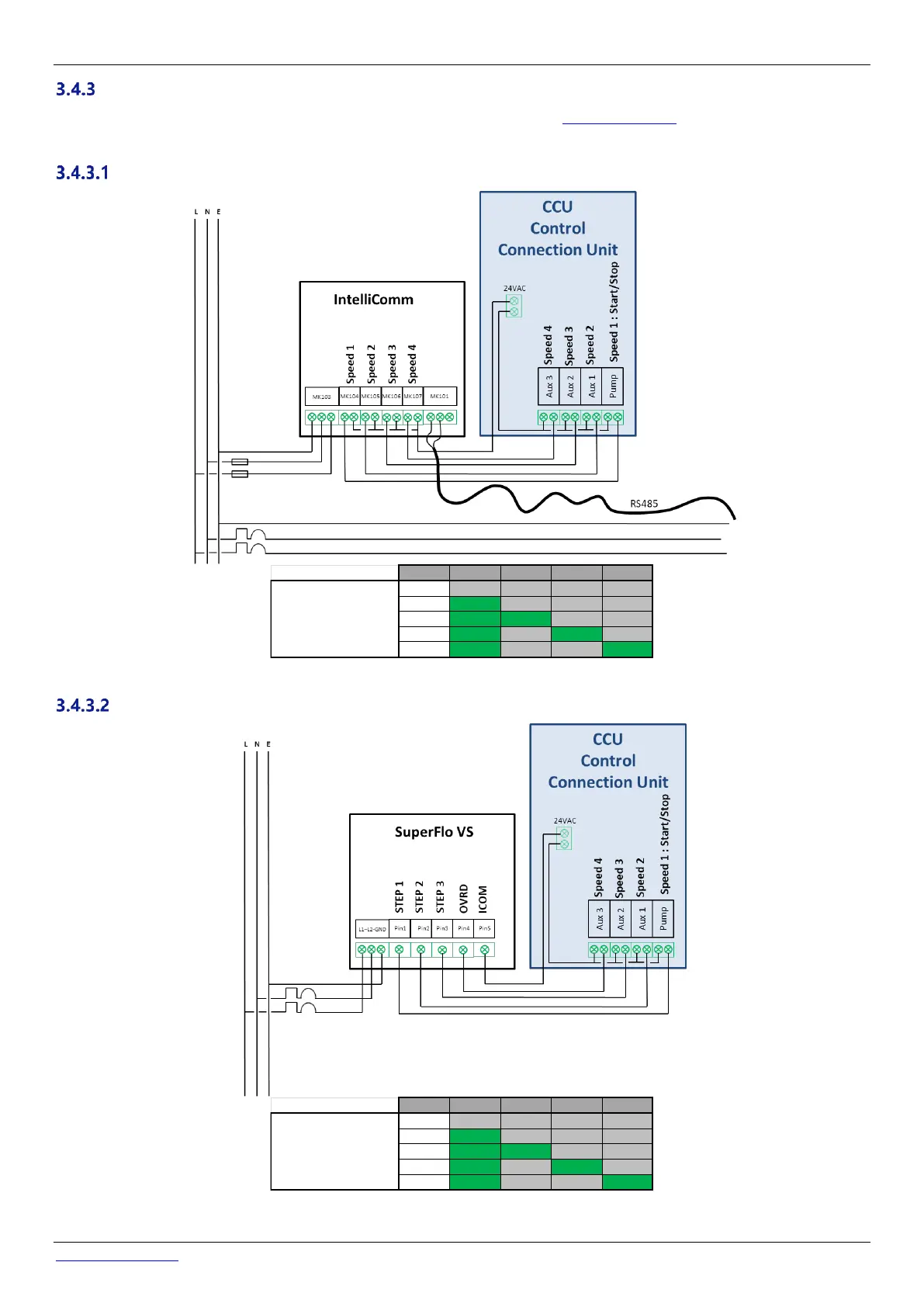

Pentair IntelliFlo VSD (with IntelliComm drive)
Figure 14 - Pentair IntelliFlo VSD with IntelliComm
Pentair SuperFlo VS/VS2
Figure 15 - Pentair SuperFlo VS/VS2
Speed Pump Aux1 Aux2 Aux3
STOP OFF OFF OFF OFF
1 ON OFF OFF OFF
2 ON ON OFF OFF
3 ON OFF ON OFF
4 ON OFF OFF ON
PENTAIR Intellicom
Speed Pump Aux1 Aux2 Aux3
STOP OFF OFF OFF OFF
1 ON OFF OFF OFF
2 ON ON OFF OFF
3 ON OFF ON OFF
4 ON OFF OFF ON
PENTAIR SuperfloVS
