PoolCop Evolution - Figure 16 - Hayward Ecostar; Figure 17 - Hayward VSTD Series

P a g e | 26 P o o l C o p M a n u a l : V 4 2 EN
www.poolcop.com PCFR
Hayward EcoStar

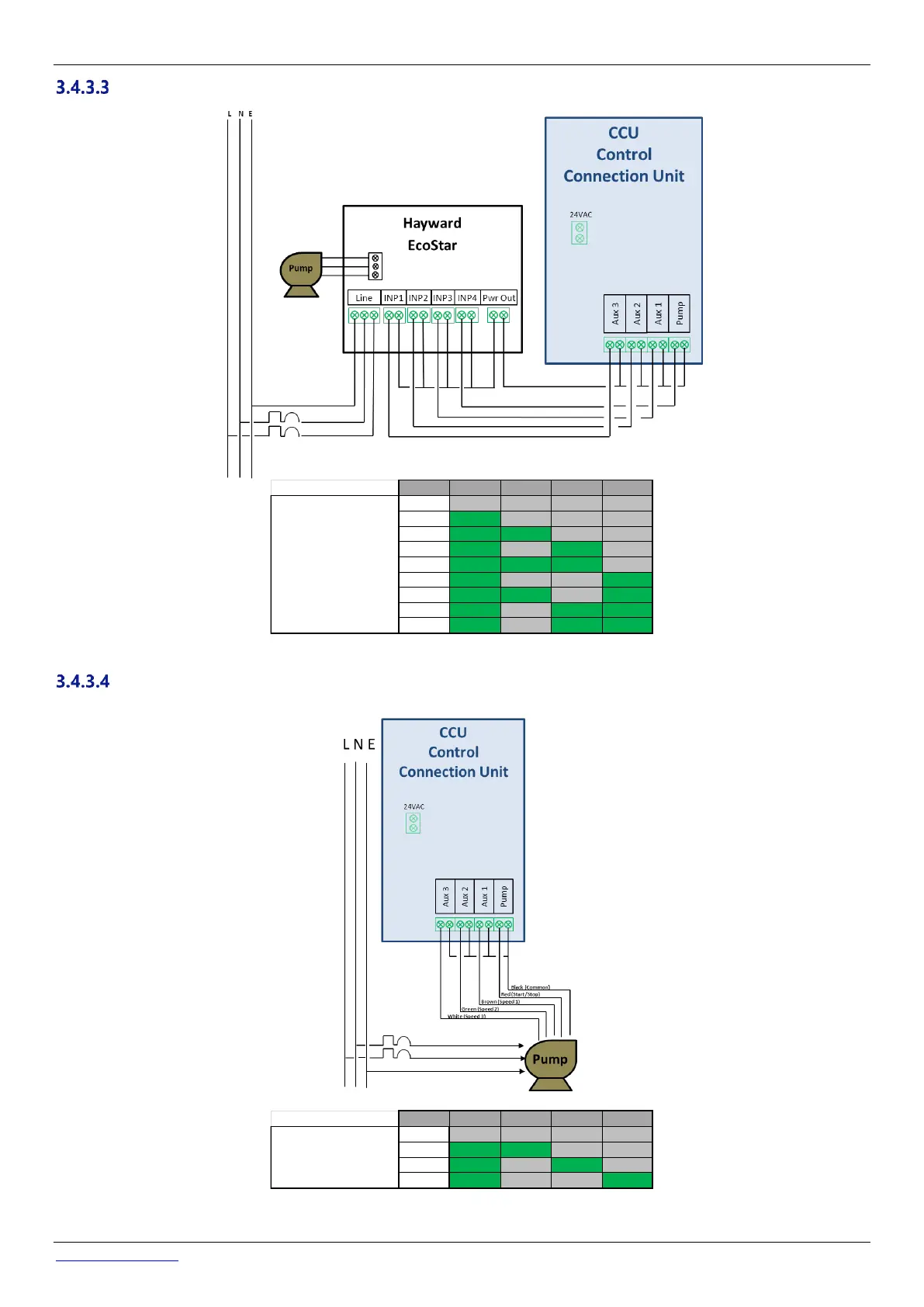

Figure 16 - Hayward EcoStar
Hayward VSTD Series
Figure 17 - Hayward VSTD Series
Speed Pump Aux1 Aux2 Aux3
STOP OFF OFF OFF OFF
1 ON OFF OFF OFF
2 ON ON OFF OFF
3 ON OFF ON OFF
4 ON ON ON OFF
5 ON OFF OFF ON
6 ON ON OFF ON
7 ON OFF ON ON
8 ON OFF ON ON
HAYWARD EcoStar
Speed Pump Aux1 Aux2 Aux3
STOP OFF OFF OFF OFF
1 ON ON OFF OFF
2 ON OFF ON OFF
3 ON OFF OFF ON
HAYWARD VSTD
