P a g e | 24 P o o l C o p M a n u a l : V 4 2 EN
www.poolcop.com PCFR

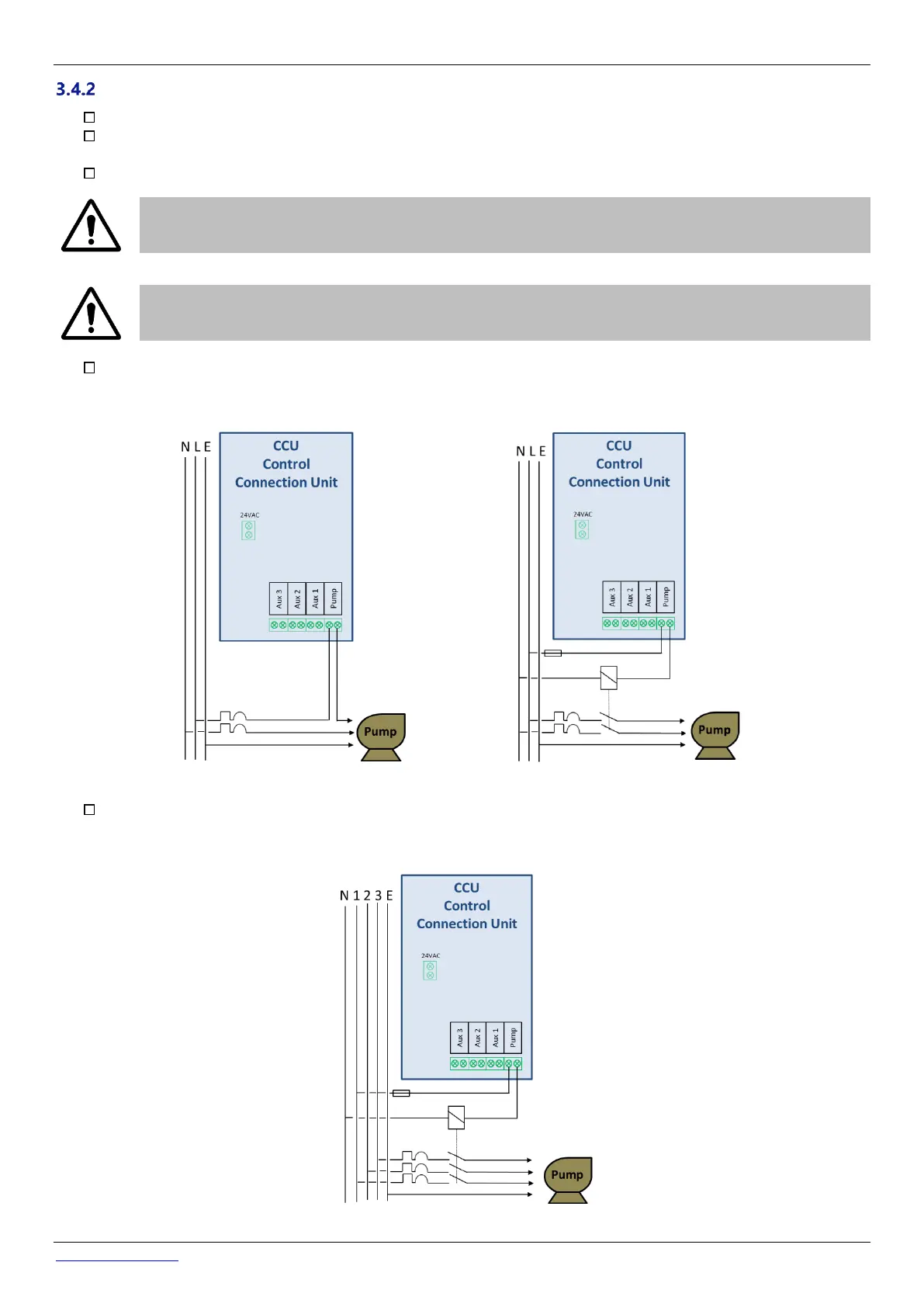

Connecting a Single Speed Pump
Disconnect the power supply to and from the existing pump timer.
Disconnect the pump timer, or remove if appropriate, noting the wires that are connected to the pump or pump
protection and relay.
Connect the pool pump control circuit to the relay K1 (labelled “pump in” and “pump out”) on J6.
CAUTION:
This is a dedicated relay and will only be used for the pool pump.
CAUTION:
A three-phase pump will require a separate pump relay;
this relay will be controlled via the PUMP relay K1.
If connecting a single-phase pump:
o It is recommended that pool pumps have an independent supply, and that the PUMP relay K1 be used to control
the external pump relay (Figure 12 - Single Phase Pump Connection on the right).
Figure 12 - Single Phase Pump Connection
If connecting a three-phase pump:
o The pool pump will have an independent supply, and the PUMP relay K1 will be used to control the external
three-phase pump relay.
Figure 13 - Three-Phase Pump Connection
