ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 110/219

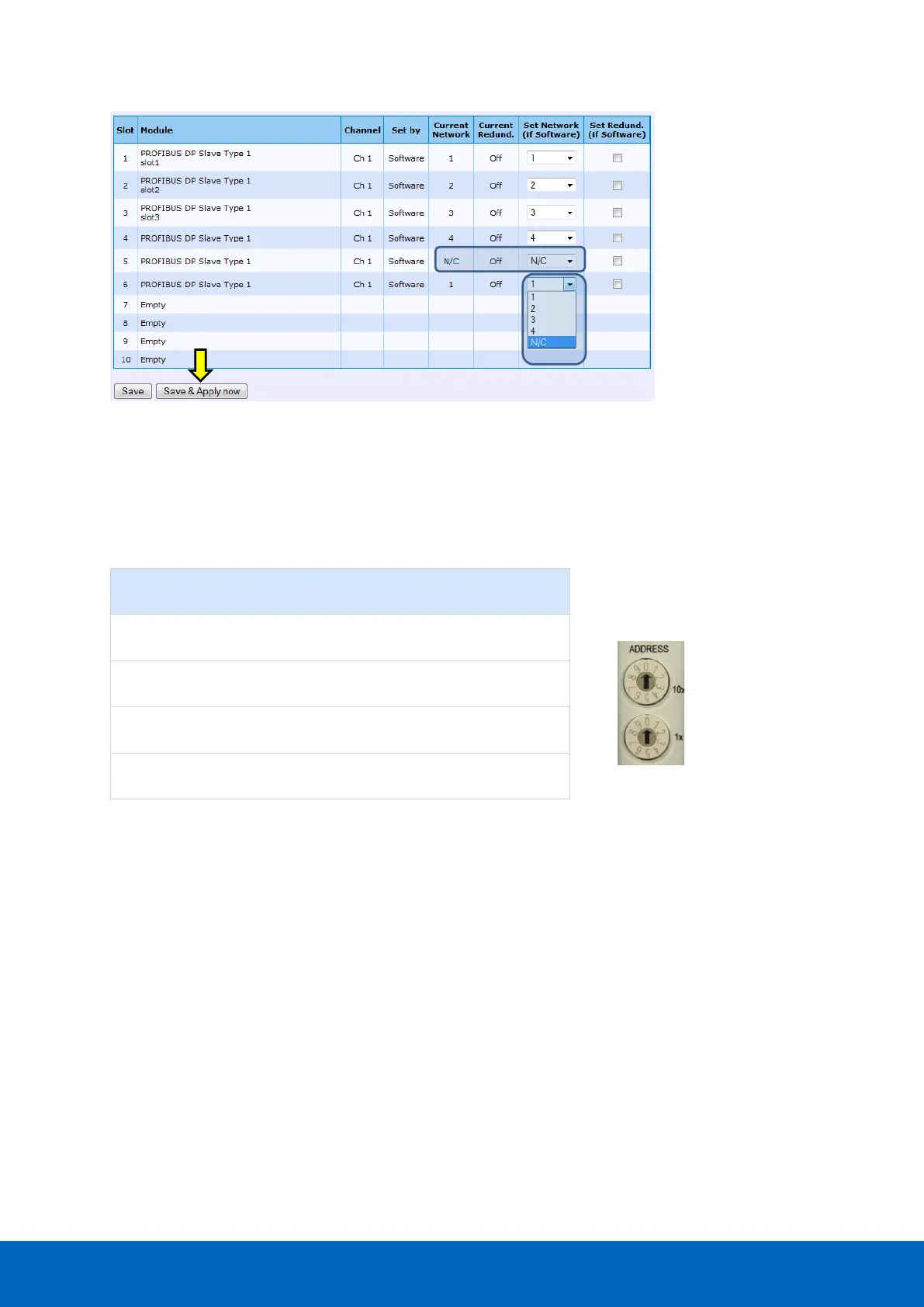

11.3.1 Hardware addressing
Use the rotary switches on the bottom of the module to set the address. Make sure to use a suitable
screwdriver to rotate the switches into the desired positions. The upper rotary switch indicates the value 10
times, the lower switch indicates its own value. The addressable range is 1 to 99. Examples:
Now the module can be inserted in an empty backplane slot as described in paragraph 3.6.
Rotary 10x:
Rotary 1x:
Resulting address:
0
0
Software addressing (see 11.3.2)
0
4
4
3
6
36
9
9
99
