ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 32/219
Modules can be removed during operation.
1 Slot between 2 modules can remain empty when modules
are removed during operation. Modules at the end of the
backplane can always be removed (1-by-1).
3.8 Wiring Ethernet
The Ethernet connector is located on the top-side of the Head Station. The connector contains LEDs that
indicate linkup (green) and reception of data (orange).
It is recommended to use a cable/RJ45 plug with grounding/foil due to the nature of industrial applications.
The Ethernet interface complies with standard Ethernet guidelines. The maximum cable length from ComBricks
to switch/device is 100 meter.

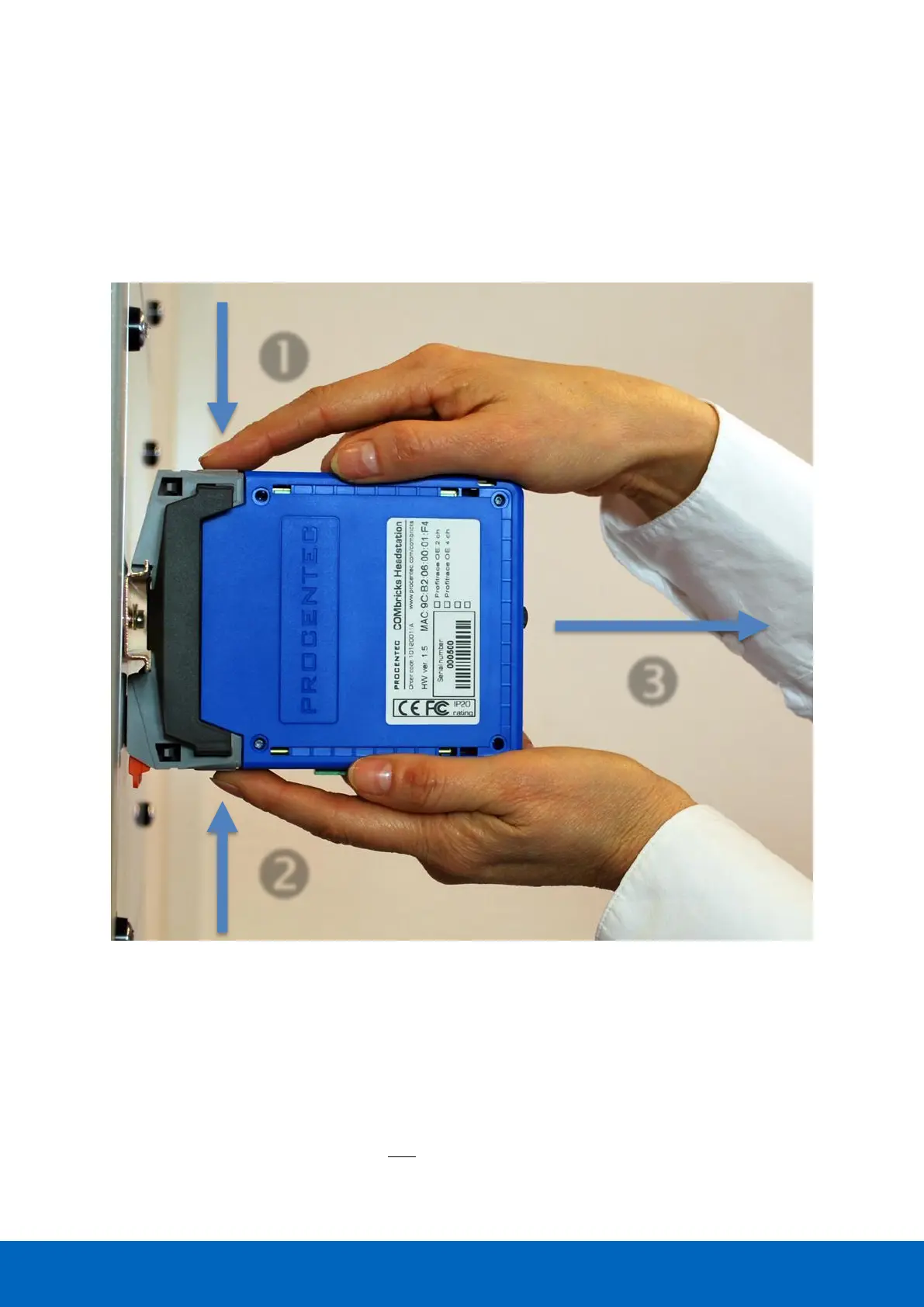

Fig. 21 - Removing modules
