ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 66/219
5.6 Oscilloscope images
SCOPE repeater modules have an integrated oscilloscope to measure the signal quality of the telegrams. The
oscilloscope has an interface with the web server to display the signals from the devices which are connected
to its channel. After opening the web page, all oscilloscope signals are displayed and updated live.
The SCOPE repeater is the most easy to use PROFIBUS oscilloscope available:
You do NOT have to touch the installation
Works automatically, even images saves to SD card (since firmware version 1.286)
Oscilloscope data is never mistaken with the wrong segment
No probe wiring
No spur lines
By clicking on the oscilloscope waveform of a device, the oscilloscope triggers on the respective device and
displays its signals in a new page.
The SCOPE repeater is only able to do differential measurements.
Oscilloscope images of
all connected devices
behind this SCOPE
repeater
Selected slots

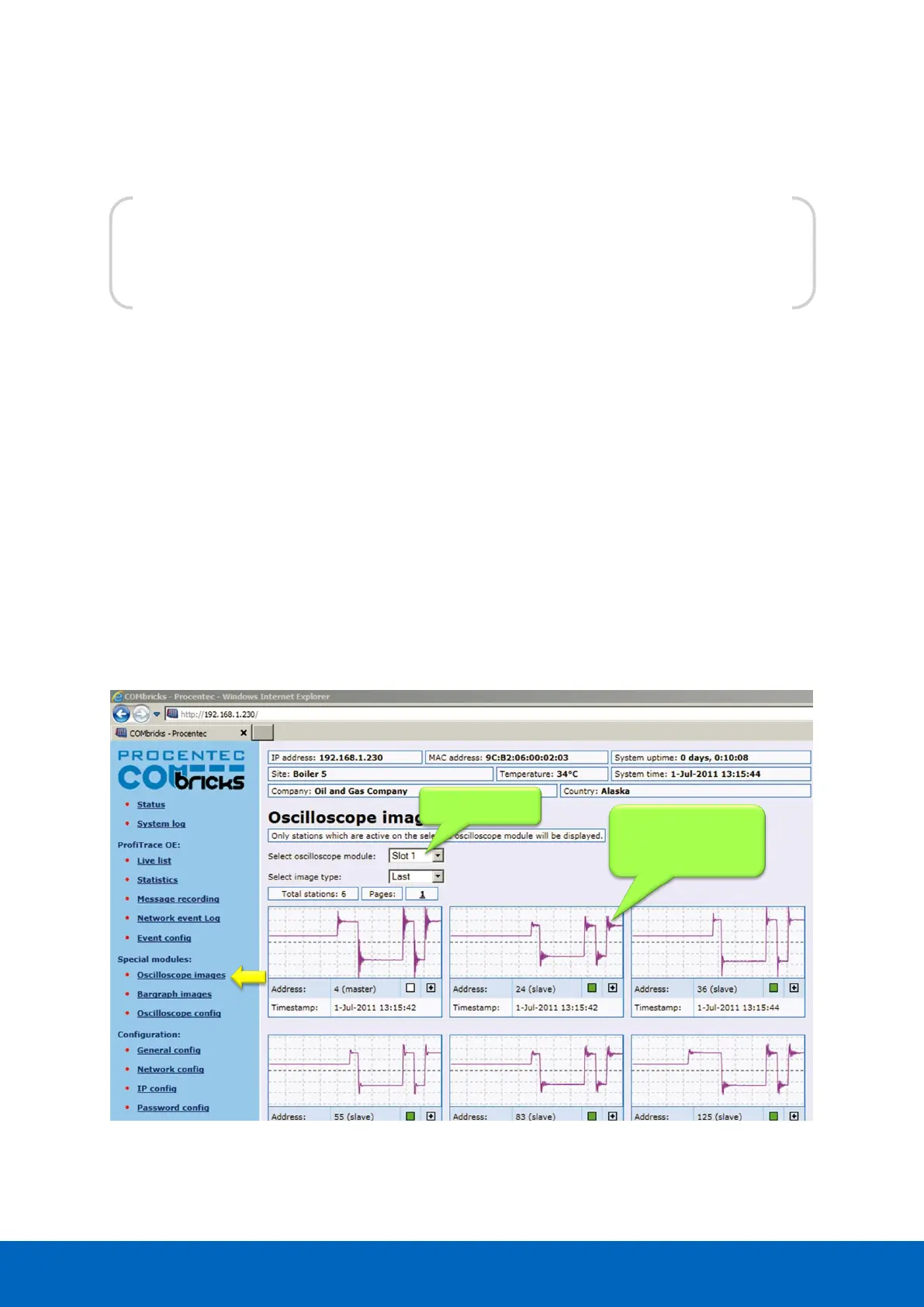

Fig. 43 - Oscilloscope images from all devices
The easiest PROFIBUS oscilloscope ever…”
