4.2 Channel list

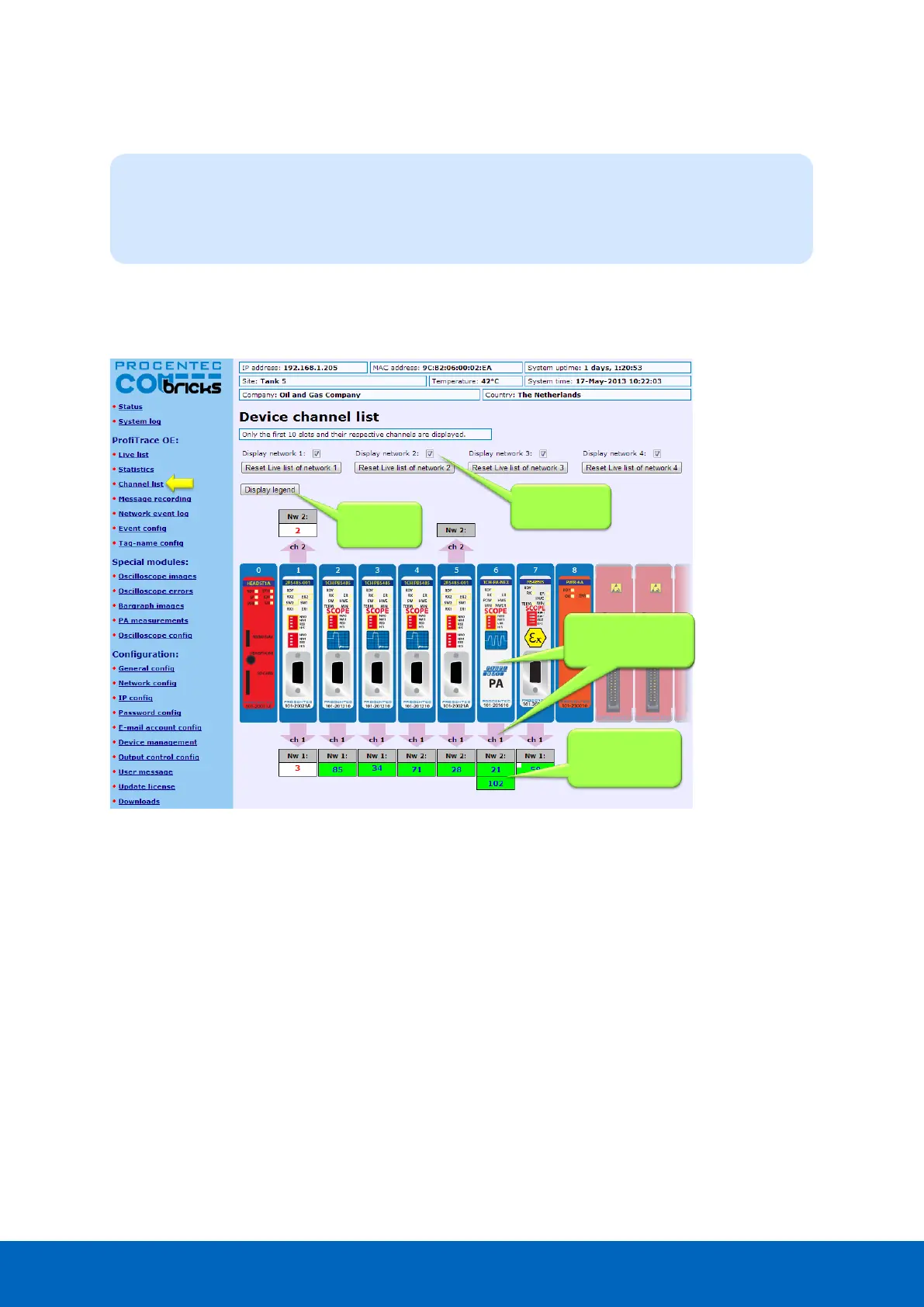

A helpful utility is the Channel list. This page visualizes a graphical overview of all stations in the network and to
which network module they are connected. It is almost comparable with a logical topology scan (see Fig. 29).
Communicating
devices with Live
List colours
Inserted network
modules and the
available channels
Network filters
Inserted network
modules and the
available channels
Show colour
legend
Head Stations: 1A, 1B, 1C
Firmware: V1.152 and higher
Login: User or Administrator
Fig. 29 - Channel list
