ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 37/219
3.10.3 Hardware or software settings (H/S)
Set this switch to enable hardware (dipswitches) or software settings.
H/S
Settings
LEFT
Hardware
RIGHT
Software
When software is enabled, all switch settings
are overruled. The settings are saved in the internal
memory of the Head Station.
Dipswitches or web
server settings
Redundancy for the
current network
Network 1: NW0 = L, NW1 = L
Network 2: NW0 = R, NW1 = L
Network 3: NW0 = L, NW1 = R
Network 4: NW0 = R, NW1 = R
Channel 1 and
Channel 2
Channel 2 and
Channel 1
Communication
error on Channel x
Termination ON
on Channel x
Data received on
Channel x
Repeater Module
status
Network 1: NW0 = L, NW1 = L
Network 2: NW0 = R, NW1 = L
Network 3: NW0 = L, NW1 = R
Network 4: NW0 = R, NW1 = R

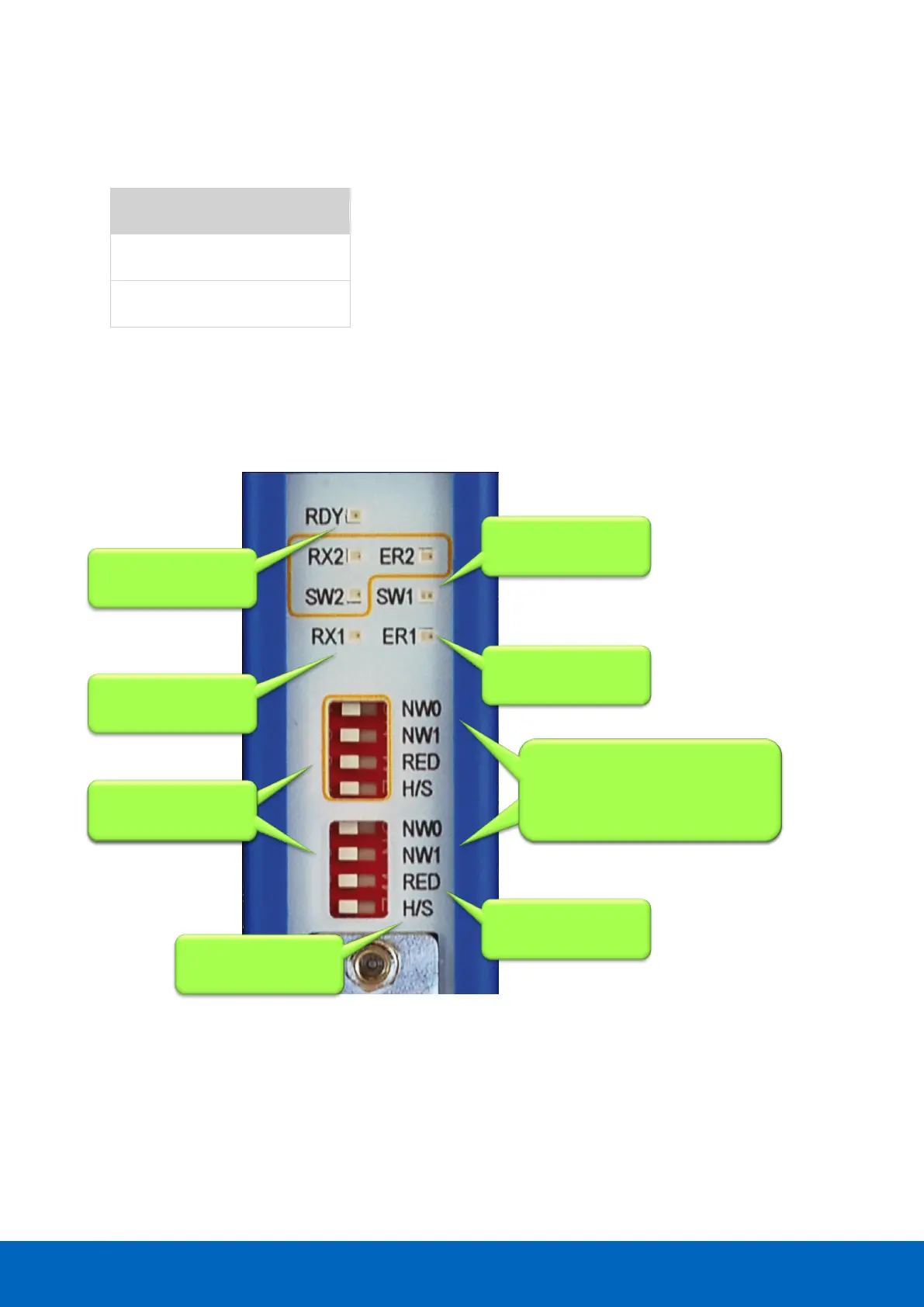

Fig. 24 - Dipswitches and LEDs of the repeaters
