ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 95/219

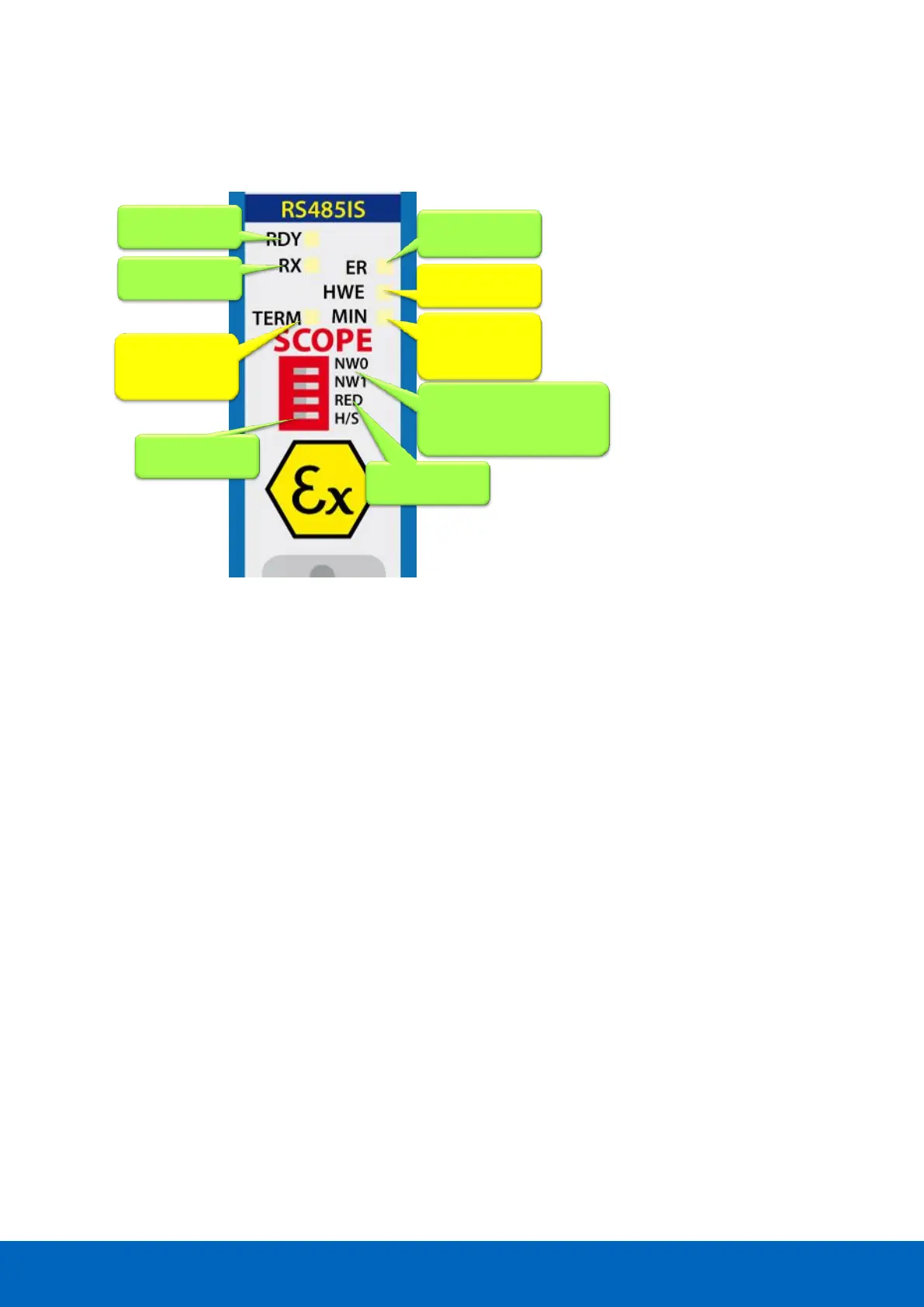

8.8 LEDs and DIP switches of the repeater module
The LEDs on the repeater modules are very useful for visual diagnostics.
8.9 Redundancy
Refer to paragraph 7.9 for a description of the redundancy system.
Dipswitches or web
server settings
Redundancy for the
current network
Communication
error or bad
telegrams
Data received
Repeater Module
status
Network 1: NW0 = L, NW1 = L
Network 2: NW0 = R, NW1 = L
Network 3: NW0 = L, NW1 = R
Network 4: NW0 = R, NW1 = R
Repeater internal
failure
The idle voltage
when no station is
sending is too low
Signal amplitude of
the telegrams
is too low
