ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 142/219
Now the Inputs and Outputs of both networks can be sent to the I/O of the proxies in the PLC program.
13.7 PROFINET / PROFIBUS proxy
The PND-001 module can also be used as a proxy to a PROFIBUS module. This works in the same way as the
PN/PN coupler. Simply replace the second PN module for a PROFIBUS PBS-001 module. Or extend the PN/PN
coupler with a PROFIBUS module, as shown below. With this example you can exchange I/O from and to all
networks. It is also possible to exchange data between more than 3 networks; up to 10 networks can be
connected. It does not matter if these networks are PROFIBUS or PROFINET.

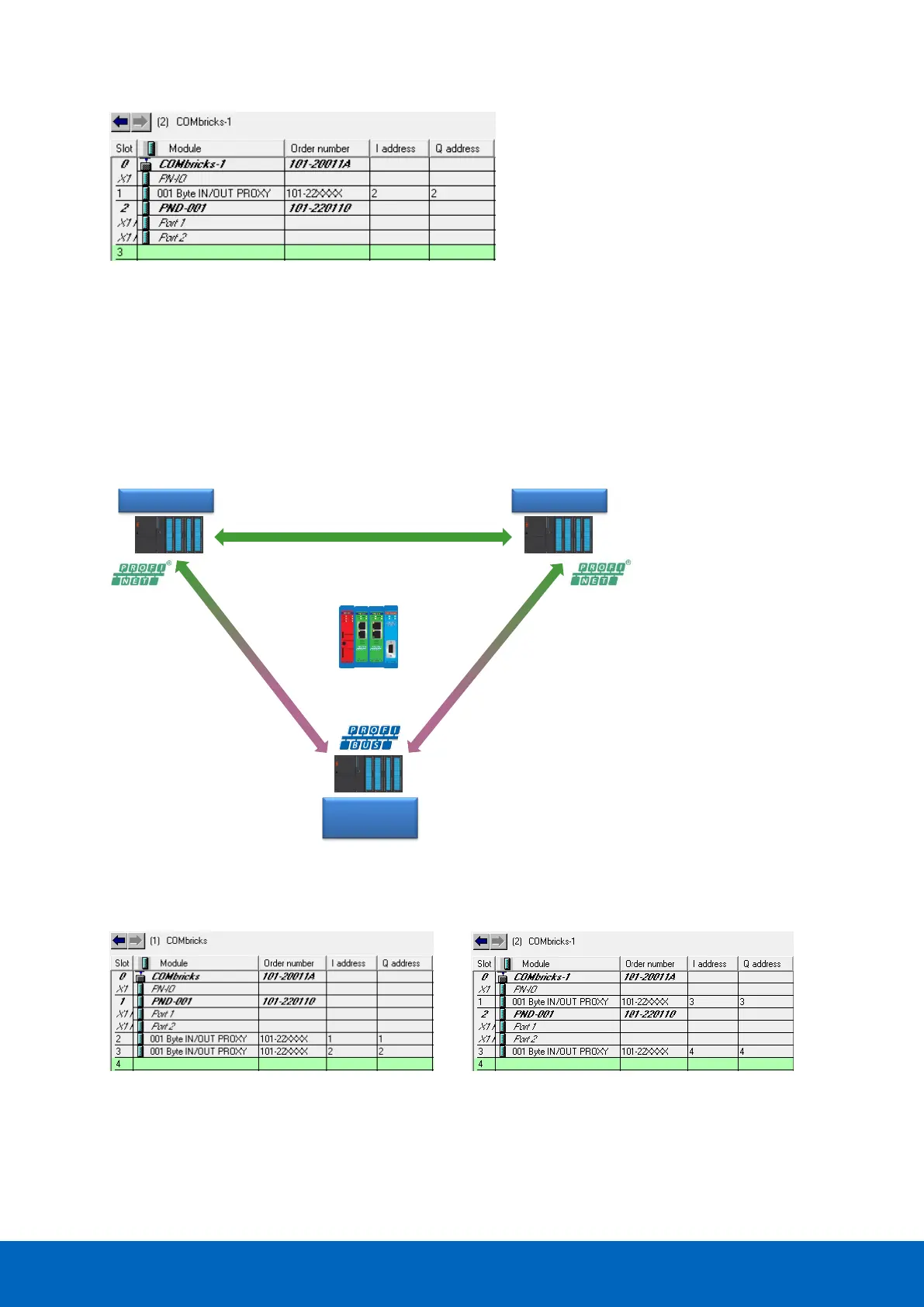

Fig. 97 - Example network layout of two PROFINET and one PROFIBUS networks
The configuration of the networks is as follows:
Fig. 98 - Configuration for PROFINET network 1 Fig. 99 - Configuration for PROFINET network 2
Network 2Network 1
Network 3
1.5 Mbps
